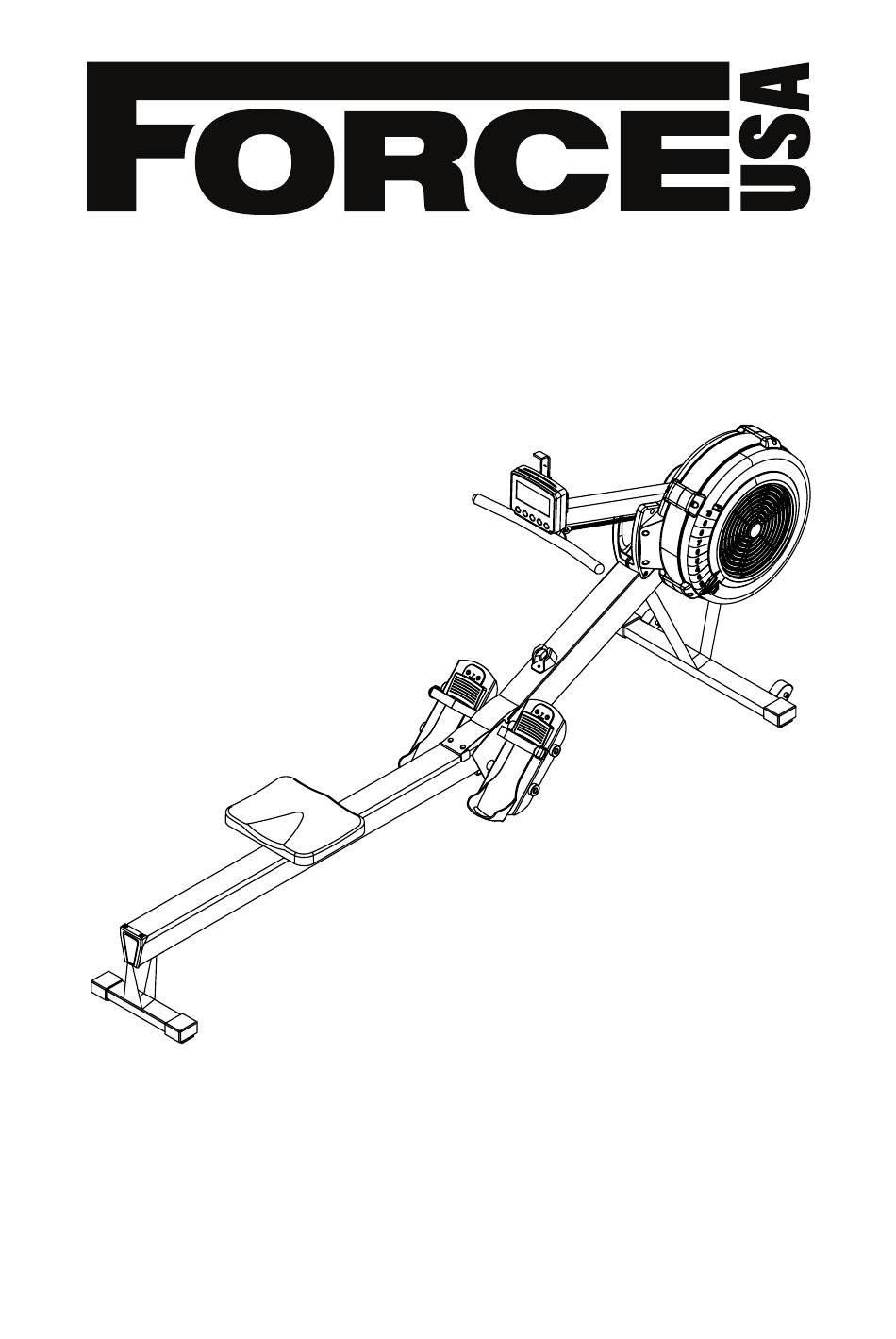

- Page 1 AIR ROWER OWNERS MANUAL | F-R3...
-
Page 2: Safety Instructions
7. It is recommended that you place this exercise equipment on an equipment mat. 8. Set up and operate the Force USA Air Rower on a solid level surface. Do not position the Force USA Air Rower on loose rugs or uneven surfaces. -
Page 3: Equipment Warning, Caution & Notice Labels
EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the Force USA Air Rower. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels. Label is larger than actual size. -
Page 4: Exploded Drawing
EXPLODED DRAWING... -
Page 5: Assembly Picture
ASSEMBLY PICTURE... -
Page 6: Parts List
PARTS LIST PART NO. DESCRIPTION Main frame Rail Frame Handle Bar Front Stabilizer Pedal Set Computer Post Left Support Leg Right Support Leg Computer Smart Phone/Tablet Holder... - Page 7 STAND TOOLS DESCRIPTION MATERIAL SPEC Main frame Rail Frame Handle Bar Front Stabilizer Pedal Set Q235 Computer Post Left Support Leg Right Support Leg Pedal Stopper 32*18L, A l Sandblasting oxidation treatment Seat Carriage Q235 2.5T Flywheel Assembly Elastic Rope Hook Chain Holder 2T b lack spray print Stainless Steel Track...
- Page 8 DESCRIPTION MATERIAL SPEC Bearing (6082z) 608-2Z,gap:(6~13) μm Bearing(62012RS) 6201-2RS,gap:(6~12 )μm One way Bearing HF2016 Chain Sprocket 40Cr 32*13L Elastic Band 10*4200L Elastic Band Pulley Chain Roller Bearing 6000-2RS,gap:(6~12) μm Fan adjusting panel Top cover of fan cover Lower cover of fan cover Pedal Adjustment Flip Pedal Adjustment bracket Flip Stopper Pedal Strap...
- Page 9 DESCRIPTION MATERIAL SPEC Front Cover Meter Holder Bottom cover Plastic washer Bolt,Round Head M6*P1.0*10L,head 9.5,black coating Lower cover for tablet holder Nylock Nut M4*P0.7, black coating Screw,Round head M4*P0.7*16L, black coating Washer 12*0.5T, black coating Bolt,Socket Head M8*65L*S20L,6 sides, black coat- ing,8.8 class Bolt,Button Head M8*P1.25*75L*S20,6 sides, black coat-...
- Page 10 DESCRIPTION MATERIAL SPEC M4,black coating 8.8 class Pull Pin 8*100L, zinc coating Bolt,Socket Head M6*P1.0*16L,5 sides,black coating, 8.8 class Chain Hook Screw M4 zinc coating,24H salt fog Cross Screw M6*P1.0*16L,black coating Box wrench 13.14 cross, zinc coating Hex wrench 8mm*35mm*90mmL, zinc coating Cross Screw M5*P0.8*8L,black coating Hex Nut...
-
Page 11: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1... - Page 12 ASSEMBLY INSTRUCTION STEP 2...
- Page 13 ASSEMBLY INSTRUCTION STEP 3 STEP 4...
- Page 14 ASSEMBLY INSTRUCTION STEP 5...
- Page 15 ASSEMBLY INSTRUCTION STEP 6...
- Page 16 ASSEMBLY INSTRUCTION STEP7 CONGRATULATIONS! Assembly is now completed...
