PSP Vortexx R Series Installation Instructions

Installation Instructions

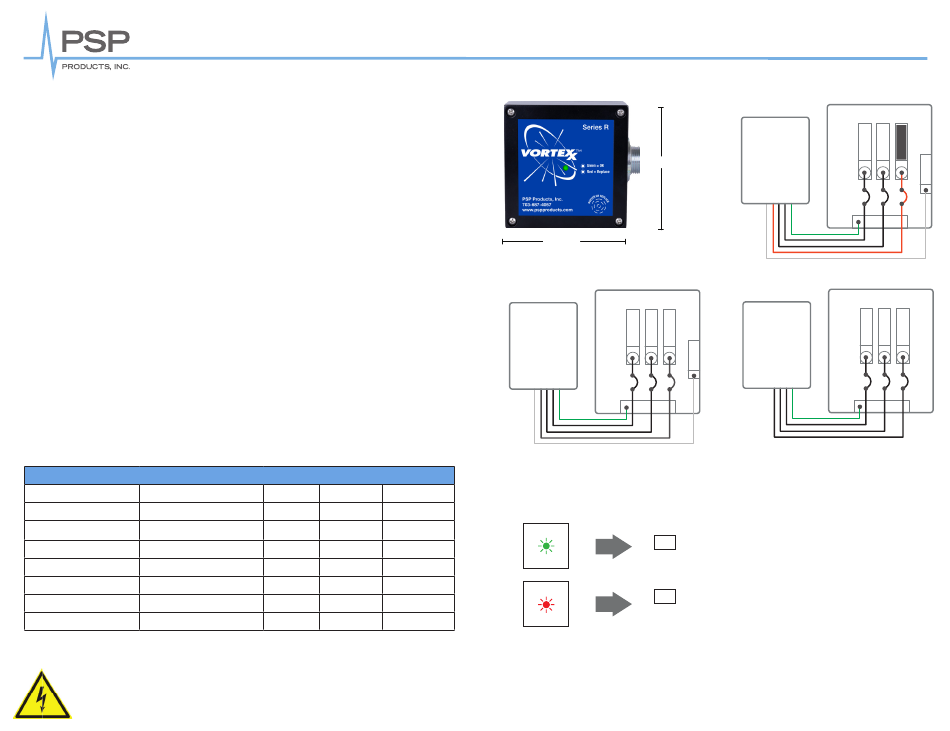

1. Confirm VR device is rated for your system by comparing voltage
measurements to the line voltage on the product label.
2. Turn off all power supplying this equipment before working on or inside the
equipment.
3. See installation diagrams below and match to your specific installation type.
4. Install on 20A-60A breaker. Verify lugs on breaker provide solid connection
to SPD wiring.
5. Install in accordance with all pertinent articles of the National Electric Code.
6. Confirm that the electrical terminals used to attach this device are identified
Figure 1
for these conductors.
7. Keep conductor length as short as possible with no sharp bends.
8. Do not loop or coil wires. Surge Protector
for Split Phase
Systems
9. Ensure a high quality ground is in place.
Split Phase,
10. Turn on all power supplying this equipment. 3W+G
120/240
11. Verify diagnostic indicator is illuminated and no audible alarm is present.
12. Install cover and/or close door on equipment fixture.
Installation Notes
• Designed to allow installation inside of a finished wall using optional flush
mount cover (Part #VR-FMC).
Voltage Phases
120/120/240 VAC 3-Phase High-Leg Delta
120/208 VAC 3-Phase Wye
220/380 VAC 3-Phase Wye
277/480 VAC 3-Phase Wye
347/600 VAC 3-Phase Wye
240 VAC 3-Phase Delta
480 VAC 3-Phase Delta
600 VAC 3-Phase Delta
Important: Risk of electrical shock.
This device should only be installed by qualified personnel.
Figure 2
Surge Protector
for High-Leg Delta
Systems
3-Phase High-Leg,
4W+G
120/120/240
Wires Neutral Diagram
4W+G Yes Fig. 1
4W+G Yes Fig. 2
4W+G Yes Fig. 2
4W+G Yes Fig. 2
4W+G Yes Fig. 2
3W+G No Fig. 3
3W+G No Fig. 3
3W+G No Fig. 3
Vortex x Series R 3-Phase Install Instructions
™
Figure 1
Surge Protector
for Split Phase
Systems
Split Phase,
4.25"
3W+G
120/240
4.25"
Figure 3
Figure 3
Figure 2
Surge Protector
for Wye Systems
3-Phase Wye,
4W+G
120/208
220/380
277/480
347/600
Please verify voltage on all three legs before installing surge protector.
Incorrect installation will void warranty.
✓
GOOD
X
BAD
replace
PSP Products Inc. | 8618 Phoenix Drive, Manassas, VA 20110
pspproducts.com | 703.687.4057 | sales@pspproducts.com
Figure 2
Figure 1
Surge Protector
for High-Leg Delta
Systems
3-Phase High-Leg,
4W+G
120/120/240
Figure 4
Figure 4
Figure 3
Surge Protector
for Delta Systems
3-Phase Delta,
3W+G
240
480
600
Diagnostic Operation
• LED GREEN = Normal operation
• LED RED = Fault, check phase
voltage and connections. If OK,
replace unit.
• Audible Alarm ON = Fault, check
phase voltage and connections.
If OK, replace unit.
Technical Assistance Call: 703-687-4057
