PSP Hurricane 2000 Series Installation Instructions

Installation Instructions
1. Turn off all power supplying this equipment.
2. Confirm device is rated for your system by
comparing voltage specifications on the product
label.
3. Install according to your specific installation using
the diagrams below for examples.
4. Install on 20A-60A breaker. Verify lug on breaker
provides solid connection to SPD wiring.
5. Install in accordance with article 280 of the
National Electric Code.
6. Confirm that the electrtical terminals used
to attach this device are identified for these
conductors.
7. Twist conductors 1/2 turn or more for every 12
inches of length.
8. Keep conductor length as short as possible with
no sharp bends or kinks.
9. Do not loop or coil wires.
10. Ensure a high quality ground is in place.
3.46"

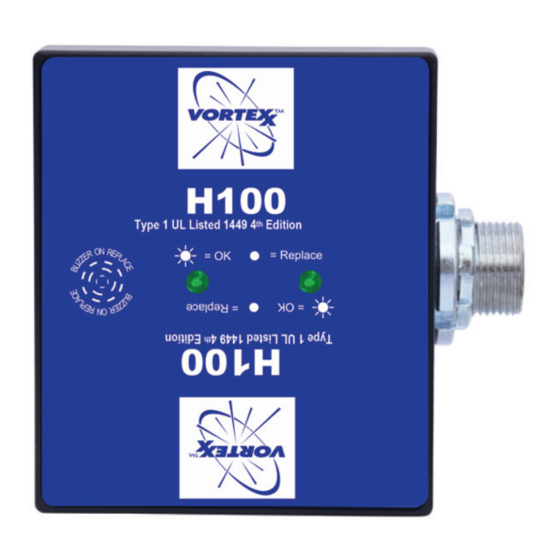

Diagnostic Operation
• LED ON = Normal operation
• LED OFF (one or more) = Fault, check phase, check
voltage & connections. If OK, replace unit.
• Audible Alarm ON = check phase
Important: Risk of electrical shock. This device
should only be installed by qualified personnel.
PSP Products, Inc. | 8618 Phoenix Drive | Manassas, VA 20110 | pspproducts.com | 1-800-648-6802 | sales@pspproducts.com PSP Products, Inc. | 8618 Phoenix Drive | Manassas, VA 20110 | pspproducts.com | 1-800-648-6802 | sales@pspproducts.com

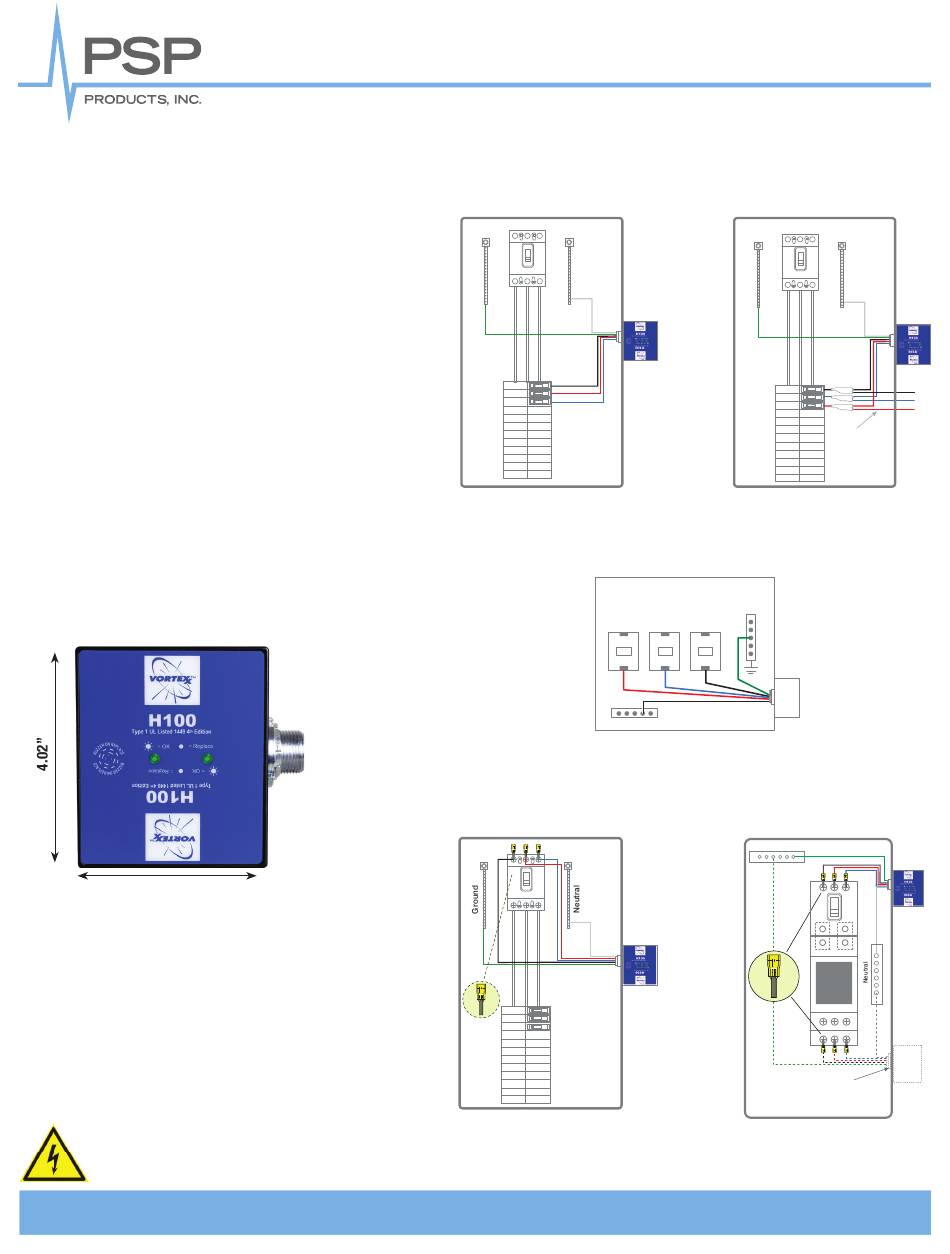

Hurricane 2000 Series - Three Phase
Service Entrance Rated Type 1 - UL 1449 4th Edition
Diagram "A" Type 2
Main Panel
(Breaker required)
Ground Neutral
Diagram D Type 1
Main Panel
(Breaker Not Required)
Diagram "B" Type 2
Main Panel (3-way connector)
(Breaker required)
Ground
Diagram "C" Type 1
Disconnect
(Breaker not required)
N
Diagram E Type 1
Generator Transfer Switch
(Breaker Not Required)
Ground
LINE
GEN LINE
LOAD
Optional Connection:
SPD may be connected to
LINE or LOAD side of ATS
Neutral
Load
connection
Revised: 10/8/2021
