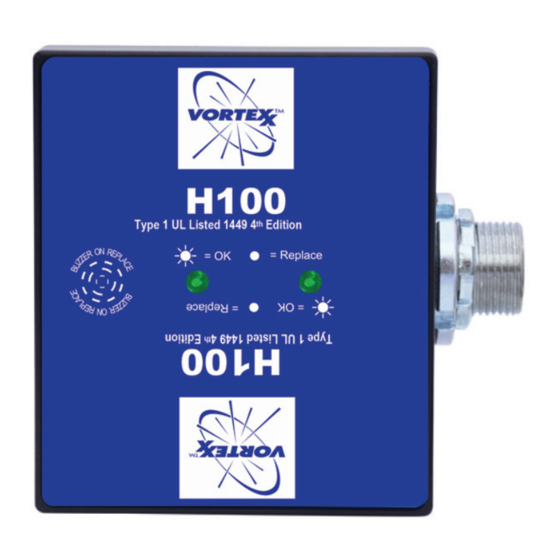

PSP Hurricane 2000 Series Installation Instructions

Installation Instructions for Models: HC1C100-06N & HGEN100-06N
1. Turn off all power supplying this equipment.
2. Confi rm device is rated for your system by comparing voltage specifi cations on the product label.
3. Install according to your specifi c installation using the diagrams below for examples.
4. Install in accordance with article 280 of the National Electric Code.
5. Confi rm that the electrtical terminals used to attach this device are identifi ed for these conductors.
6. Twist conductors 1/2 turn or more for every 12 inches of length.
7. Keep conductor length as short as possible with no sharp bends or kinks.
8. Do not loop or coil wires.
9. Ensure a high quality ground is in place.
3.46"
Diagnostic Operation
•
LED ON = Normal operation
•
LED OFF (one or more) = Fault, check phase, check voltage & connections.
If OK, replace unit.
•
Audible Alarm ON = check phase
Important: Risk of electrical shock.
This device should only be installed by qualified personnel.

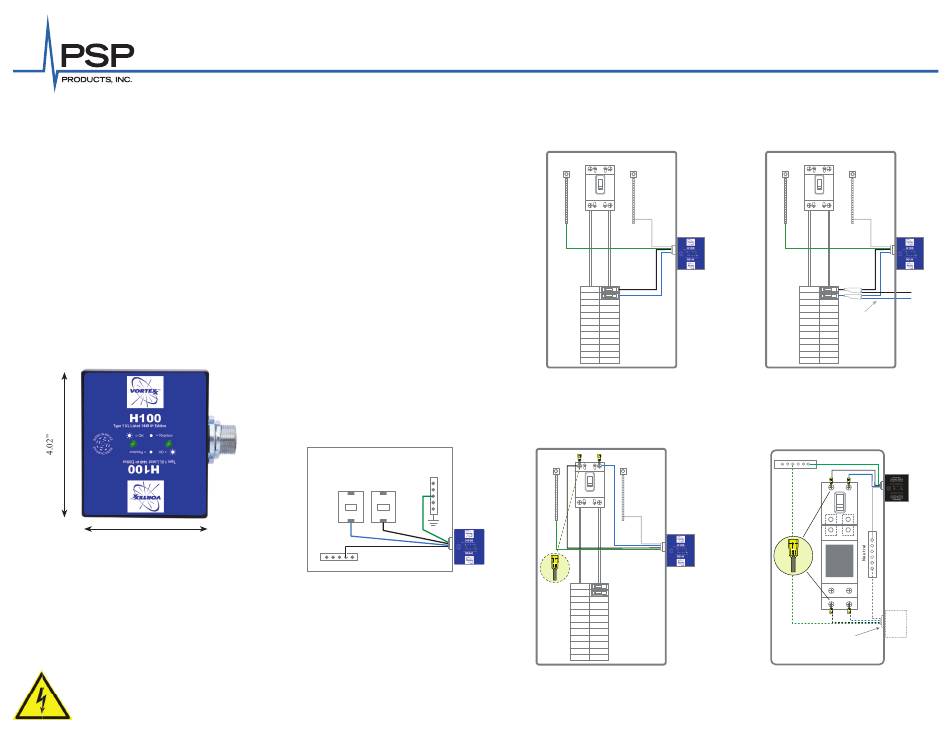

Diagram "C" Type 1
Disconnect
(Breaker not required)
N
Hurricane 2000 Series - Single Phase
Service Entrance Rated Type 1 - UL 1449 4th Edition
Diagram "A" Type 2
Main Panel
(Breaker required)
Ground Neutral
Diagram "D" Type 1
Main Panel
(Breaker not required)
Ground Neutral
PSP Products Inc. | Phoenix Drive | Manassas, VA 20110
www.pspproducts.com | 800-648-6802 | sales@pspproducts.com
Diagram "B" Type 2
Main Panel (3-way connector)
(Breaker required)
Ground Neutral
Load
connection
Diagram "E" Type 1
Generator Transfer Switch
(Breaker not required)
Ground
LINE
GEN LINE
LOAD
Optional Connection:
SPD may be connected to
LINE or LOAD side of ATS
Rev: 09-27-19
