INSTALLATION NOTES
DESIGNED TO ALLOW INSTALLATION INSIDE OF AN ELECTRICAL PANEL USING ATTACHED MOUNTING FEET
•
DESIGNED TO ALLOW INSTALLATION INSIDE OF A FINISHED WALL USING OPTIONAL FLUSH MOUNT COVER
•
USE 20-60 AMP DOUBLE POLE BREAKER FOR TYPE 2 INSTALLS
•
Installation Instructions
1. Confirm device is rated for your system by metering the system voltages and
compare the results to the SPD's specifications listed on the product label.
2. Turn off all power supplied to the installation location.
3. Install according to your specific installation application, using the
appropriate diagram examples shown.
4. Install in accordance with all pertinent articles of the National Electric Code.
5. Confirm that the electrical terminals used to attach this device are identified
for these conductors.
6. Keep conductor lengths as short as possible with no sharp bends or kinks.
7.
Do not loop or coil wires.
8. Ensure that a high quality ground is in place.
9. Turn on all power supplying this equipment.
10. Verify all diagnostic indicators are illuminated and no audible alarm is
present.
11. Install cover and/or close door on equipment fixture.
Diagnostic Operation
LED ON = Normal operation
•
LED OFF (one or more) or Audible Alarm ON= Fault, check phase,
•
check voltage & connections.
If OK, replace unit.
•
AC Network
Nominal Voltage
Max. Operating Voltage (MCOV)
Max. Discharge Current
Nominal Discharge Current (ln)
Important: Risk of electrical shock.
This device should only be installed by qualified personnel.
120VAC
150VAC
(lmax)
60kA
20kA
Technical Assistance Call: 703-687-4057
Service Entrance Rated Type 1 - UL 1449 5th Edition

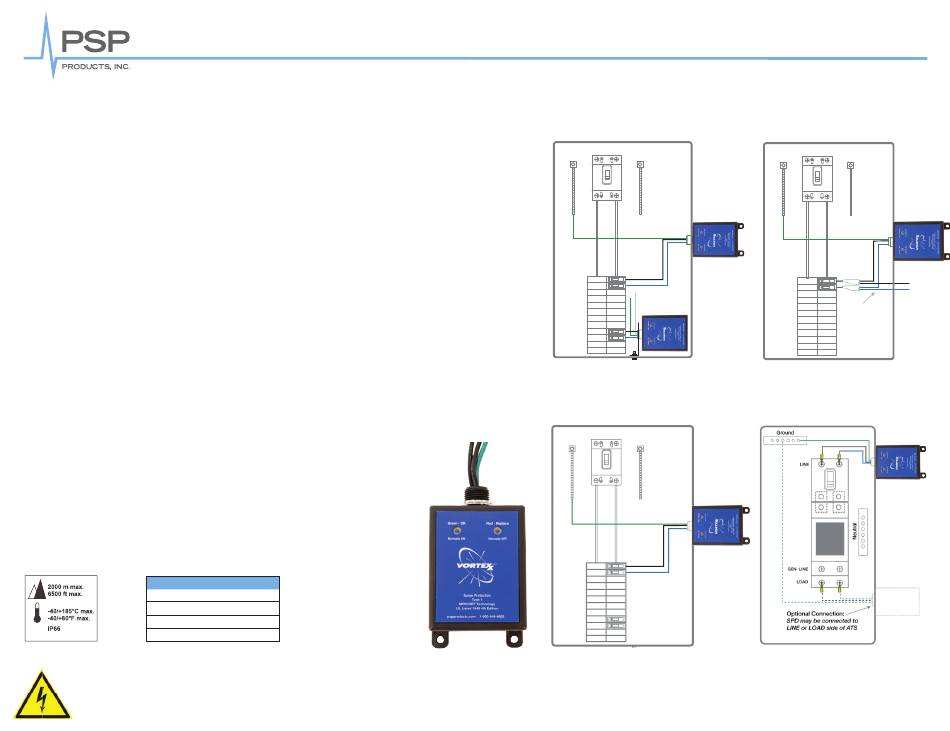

Diagram "A" Type 2
Main Panel
(Breaker Required)
Ground
Neutral
N
Optional
G
Mounting
Bracket
Diagram "C" Type 1
Main Panel
(Breaker Not Required)
Ground
Neutral
PSP Products Inc. | 8535 Phoenix Drive, Manassas, VA 20110
PSP Products Inc. | 8618 Phoenix Drive, Manassas, VA 20110
pspproducts.com | 703-687-4057 | sales@pspproducts.com
pspproducts.com | 703.687.4057 | sales@pspproducts.com
VB1-60-4XP
Diagram "B" Type 2
Main Panel (3-Way Connector)
(Breaker Required)
Ground
Neutral
Load
connection
Diagram "D" Type 1
Generator Transfer Switch
(Breaker Not Required)
