PSP Hurricane 1000 Series Installation Instructions

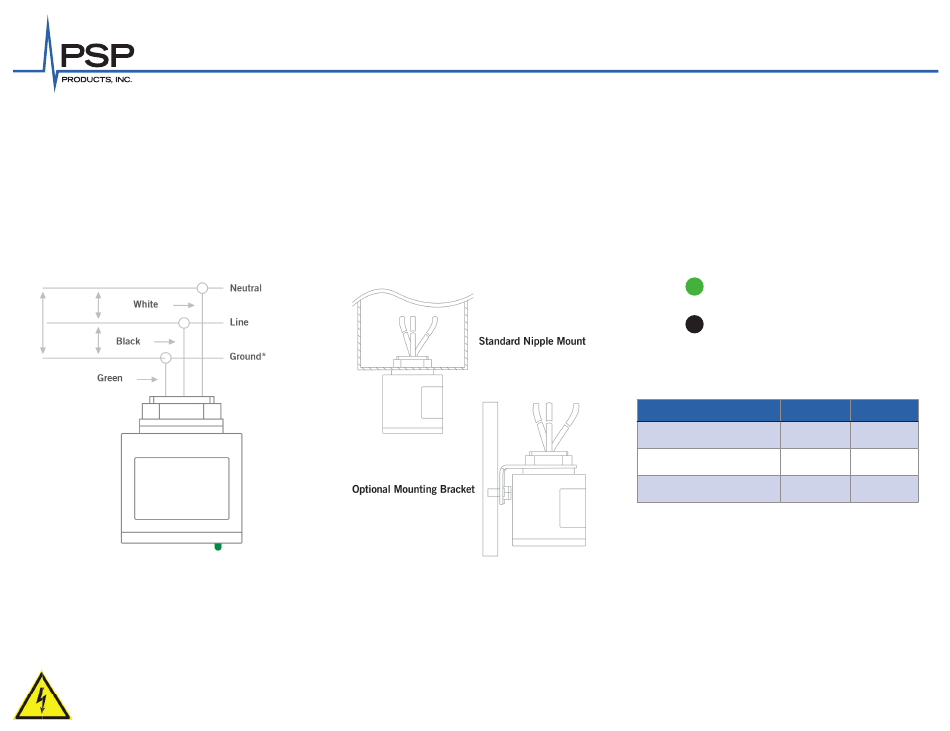

Installation Instructions
1. To assure proper installation measure the voltage on each phase and insure the correct device has been selected for your installation.
2. Turn off power to circuit where surge protector is to be installed.
3. Mount device so as to keep conductor length as short as possible. Cut wires to length and connect to circuit per wiring diagram below avoiding sharp bends or looping.
4. Reinstall covers, restore power and confirm diagnostic LED is Illuminated.
120 & 240-277 VAC Wiring Diagram
*All surge protection devices require good ground connection for effective operation
Important: Risk of electrical shock.
This device should only be installed by qualified personnel.
Installation Options
www.pspproducts.com | 800-648-6802 | sales@pspproducts.com
Hurricane 1000 Series
Surge Protection Device 120 & 240-277 Volt AC
Diagnostic Operation
LED On = System Protected
LED Off = Replace Device

Device Ratings

Normal Voltage
Max. Operating Voltage (MCOV)
Max. Discharge Current (Imax)
Technical Assistance Call: 800-648-6802
After Hours Tech Support 443-600-3403
PSP Products Inc. | Phoenix Drive | Manassas, VA 20110
H1S75-04N H4S75-04N
120 VAC 240-277 VAC
150 VAC 320 VAC
75 kA 75 kA
Rev: 05-01-19
