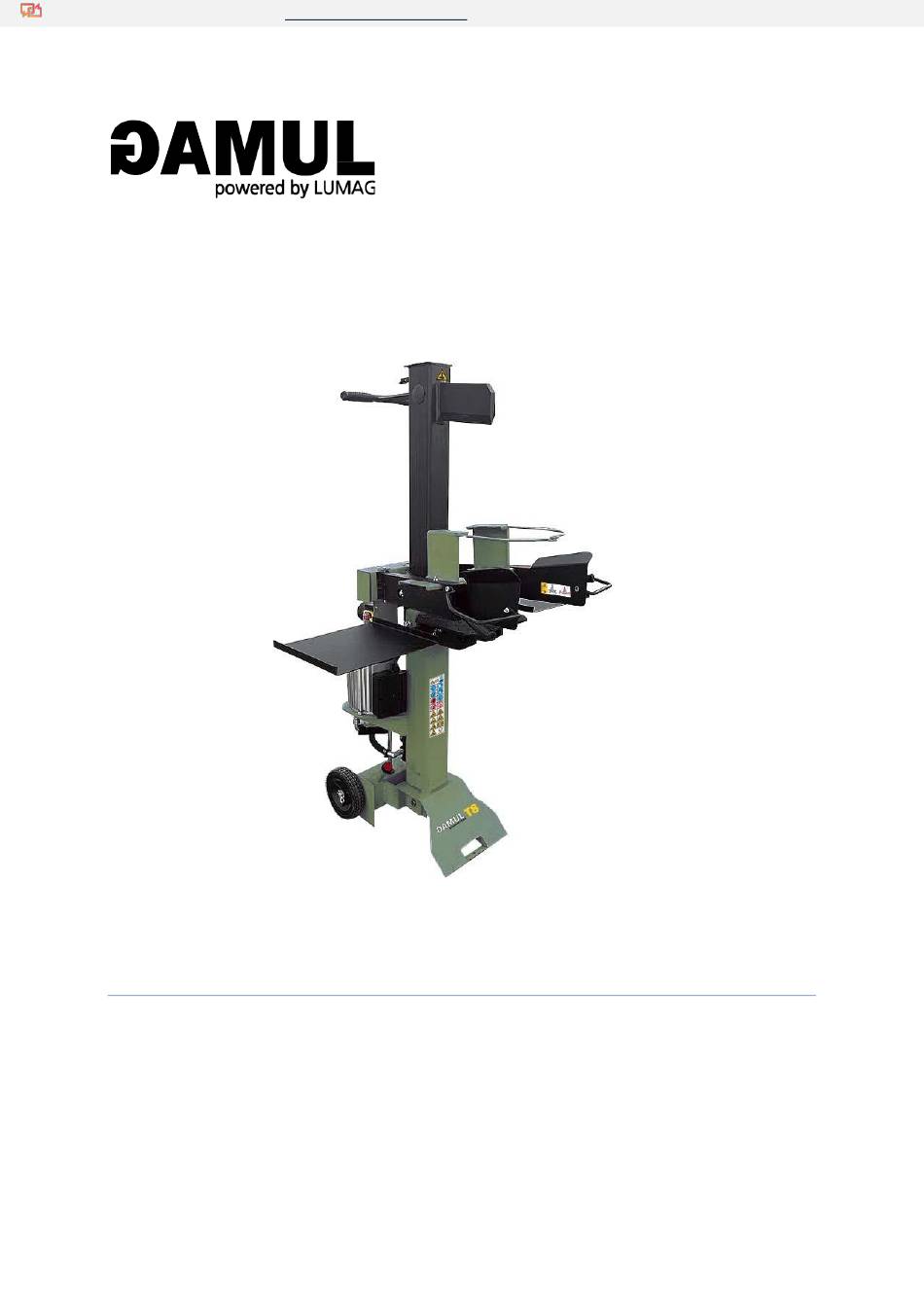

HYDRAULIC WOOD SPLITTER
Originaloperating instructions
GAMULT8
IMPORTANT NOTE!
Wood splitters with 7t, 8t or 9t splitting force are mainly used in private areas. For ecological reasons, always
place the hydraulic wood splitter on a solid, dense surface to prevent contamination of the surface.
ATTENTION! The vent screw on the oil filler neck must always be unscrewed before the machine is put into
operation. This allows the hydraulic tank to be ventilated.
Both the model number and the serial number can be found on the rating plate on the machine. You should
keep both numbers in a safe place for future reference. This manual explains the functions and uses of the
machine.
FOR YOUR SAFETY
Before commissioning, read the operating instructions and observe the safety
and warning instructions!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GAMUL T8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumag GAMUL T8

Summary of Contents for Lumag GAMUL T8

  • Page 1 Translated from German to English - www.onlinedoctranslator.com HYDRAULIC WOOD SPLITTER Originaloperating instructions GAMULT8 IMPORTANT NOTE! Wood splitters with 7t, 8t or 9t splitting force are mainly used in private areas. For ecological reasons, always place the hydraulic wood splitter on a solid, dense surface to prevent contamination of the surface. ATTENTION! The vent screw on the oil filler neck must always be unscrewed before the machine is put into operation.
  • Page 2 21. troubleshooting Behavior in an Emergency 22. warranty/guarantee/customer service Used 23. EC declaration of conformity warning and information symbols 24. components GAMUL T8 part name Technical data Electrical connection scope of delivery assembly 10. transport and storage 10.1 Safety instructions for transport...
  • Page 3 Information about the operating instructions This operating manual provides important information on handling the GAMUL T8 reservations hydraulic log splitter. The prerequisite for safe Information on technical data, dimensions and working is correct compliance with all specified illustrations of the machine, as well as changes to safety instructions and handling instructions.

  • Page 4: Intended Use

    Intended Use Environment The machine – hydraulic log splitter GAMUL T8 – is Please recycle waste and do not only suitable for splitting wood with a maximum dispose of it as garbage. All tools, hoses length of 520 mm. Wood may only be split and packaging must be sorted, taken to standing up in the direction of the grain.

  • Page 5: Important Note

    safety instructions Security This section provides a comprehensive overview of WARNING! important safety aspects adequate protection of the operator as well as for safe and Familiarize yourself with the machine. Proper trouble-free operation. training is a prerequisite for working safely with this machine.
  • Page 6 and endanger other persons through improper use. Operation Never operate a damaged machine! First-time users should seek instruction from the seller familiarize themselves with Only work when you are in good physical characteristics of the machine, its intended use and the necessary safety devices.
  • Page 7 – safety glasses with side protectionto protect Only use original LUMAG spare parts and the eyes from dust or splinters. accessories. The use of other spare parts and – work glovesmade of sturdy leather to protect accessories increases the risk of accidents.
  • Page 8 → If the wood is jammed, only knock it out. The danger from noise wood is under a lot of tension when you try to hearing loss remove it, and your fingers could get crushed in Prolonged, unprotected work with the machine can the crack.
  • Page 9 Warning and information symbols Danger of slipping and tripping! Keep your work area clean! Clutter can used lead to accidents. Symbols are provided on the machine to provide important information about the product and Warning!Fluid under high pressure instructions for use. (hydraulic oil, grease or fuel) can easily splash onto clothing or skin and cause DANGER!

  • Page 10: Technical Data

    15 drive unit (electric motor 230V AC motor 16 switch-plug combination with motor protection 230V The GAMUL T8 wood splitter may only be 17 column of fission connected to a 230 volt mains supply with 50 Hz 18 lifting rod...

  • Page 11: Scope Of Delivery

    You can reach us by Rubber cables for electrical connections must email: comply with EN60245 and be marked with the info@lumag-maschinen.deor by phone at +49 symbol H07RN. The marking of the cables is 8571/92 556-0. required by law.
  • Page 12 Step 2: Assemble the splitting table assembly (Figure C) Attach the splitting table to the splitting frame as shown. To do this, the splitting table is hooked on one side and secured on the other side. When viewing this, assume that you are standing in front of the log splitter.
  • Page 13 1. Grease the metal tabs of the control levers at Step 4: Mount side tables (RE/LI) the top and bottom with a thin layer of grease. (Figure E) 2. Insert the operating lever and insert the pipe into the recess of the cross connection. Mount the side tables on the right and left of the 3.

  • Page 14: Transport And Storage

    transport and storage IMPORTANT NOTE! When splitting wood, both the long threaded bolt and the locking pin are used. IMPORTANT NOTE! When transporting and storing the machine, only It is best to transport the log splitter upright; if the the safety pins are removed and the side tables are machine is lying on its side, hydraulic oil will folded down.
  • Page 15 staff – Secure the pallet with the goods being transported with tensioning straps so that the – Transport work without the aid of lifting or pallet with the goods being transported cannot conveying equipment that requires supervision tip over; if necessary, correct the center of may be carried out by trained personnel gravity.
  • Page 16 4. To prevent the two control levers from setup swinging around accidentally during transport, they must be secured at the front with the rubber tensioner (F) are held together. WARNING! The machine must be installed on a firm and level surface.

  • Page 17: Drive Types

    hydraulics drive types 13.1 electric drive Note on hydraulics The hydraulic oil tank is located at the base of the log splitter. The oil tank is filled with hydraulic oil at the factory. If the log splitter is tilted very far back WARNING! during transport, make sure that no oil can leak out of the filler neck.
  • Page 18 In addition, it is forbidden to use the hydraulic log commissioning splitter outdoors in wet conditions! Only operate the machine when it is in a switch/plug combination stable position. Pay particular attention to If the log splitter cannot be switched on again ensure that the floor does not give way (green START button jumps back), the motor has under the heavy load of the machine.
  • Page 19 To ensure that the voltage always remains at a automatically moves into control levers... sufficient level, on the GAMUL T8 model with 230V, press one of the control levers down and hold it back to the starting down before switching on the motor (1) and switch position.
  • Page 20 6. Once the splitting process is finished, both service operating levers must be released so that the splitting knife can move upwards again. 7. The split wood may only be removed from the splitting table when the splitting knife is back IMPORTANT NOTE! in its original position.
  • Page 21 The operator must perform the splitting process with both hands.Never reach into the splitting area when the splitting wedge is moving! ATTENTION! Wood can split, only use delimbed wood for splitting. The logs must be split lengthwise. Never split them lying down or across the grain! If the wood is extremely overgrown, split the logs from the edge.

  • Page 22: Maintenance And Repair Work

    Thereafter, regularly tighten and check all screws protective devices after maintenance work. and nuts. Only use original LUMAG spare parts. Other parts Replace lost screw connections. can cause unforeseeable damage and injuries. Check all hydraulic fittings and hoses for leaks and Work on the electrical equipment may only be tightness.
  • Page 23 The following hydraulic oils or equivalent oils of viscosity class HLP 46 are recommended for the hydraulic transmission system: SHELL Tellus 22-46, Esso Nuto H46, DEA HD B46 No dirt or deposits may enter the oil tank. Even slight contamination can cause significant damage to the hydraulic system.
  • Page 24 disposal WARNING! When the machine is no longer serviceable and is to be scrapped, it must be deactivated and The hydraulic oil is under pressure! dismantled, that is, it must be brought to a There is therefore a risk of injury from leaking condition where it can no longer be used for the hydraulic oil.
  • Page 25 hydraulic diagram circuit diagram 230V Fig. Circuit diagram 230V WARNING! Connections repairs electrical equipment may only be carried out by a qualified electrician. Fig. Hydraulic diagram...

  • Page 26: Troubleshooting

    WARNING! Any faults in the machine or engine that require major intervention should always be repaired by your LUMAG specialist workshop or an authorized specialist workshop. Improper intervention will void the warranty. PROBLEM POSSIBLE CAUSE PROPOSED REMEDY Faulty supply line...

  • Page 27: Warranty

    Warranty work is carried out exclusively by our The warranty is excluded with regard to the parts if LUMAG service workshop. Defects that occur defects are caused by natural wear, temperature, within the warranty period due to material or...

  • Page 28: Ce Declaration Of Conformity

    CE declaration of conformity According to the provisions of the EC Machinery Directive 2006/42/EC EMC Directive 2014/30/EU, the company LUMAG GmbH Rudolf-Diesel-Straße 1a D-84375 Kirchdorf a.Inn Phone: +49 8571 / 92 556-0 Fax: +49 8571 / 92 556-19 that the product...
  • Page 29 GAMUL T8 WARNING! All repairs to the machine must be carried out by authorized personnel. Any necessary electrical work should only be carried out by an authorized specialist.
  • Page 30 NOTES...
  • Page 32 Subject to change! Version GAMUL T8 (08.23 D) LUMAG specialist dealer can be found at:www.lumag-maschinen.de LUMAG GmbH Rudolf-Diesel-Str. 1a D-84375 Kirchdorf a.Inn Germany Internet:www.lumag-maschinen.de...
