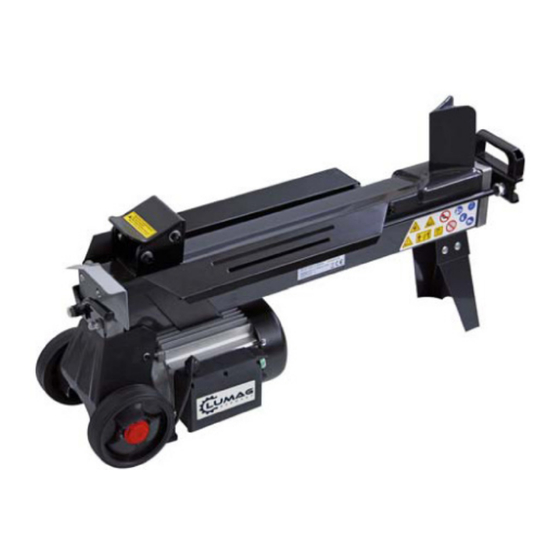

- Page 1 Distribution Limited Hydraulic Log Splitter Operator’s Manual HOS5A FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE...
- Page 3 Textkonserve_HOS 5A_GB Instruction Manual Electric log splitter WARNING! Before the equipment is assembled and taken into operation, carefully read the manual. Get acquainted with both the equipment as well as the handling of it. WARNING! Before start, loosen the air bleed screw (13) some turns to create air circulation in the oil tank. When terminating the work, pull tight again.
- Page 4 Textkonserve_HOS 5A_GB Specification of components FIELD OF APPLICATION This log splitter is a transportable machine tool intended for private household- and hobby use. It is intended for splitting horizontal material in the direction of the fibers in the wood. Only straight, clean-cut logs may be processed in this splitter. All other use is in violation of the user conditions.
- Page 5 Textkonserve_HOS 5A_GB 13. Attendance and maintenance - Follow the instructions for lubrication and maintenance - Regularly check the cable and replace if damaged - For damages on the equipment, let authorized workshop repair - Regularly check extension cables and if damaged: replace them! - Keep handles and controls clean from grease and oil 14.
- Page 6 Textkonserve_HOS 5A_GB • The right position for the operator is behind the push-arm, at the control handle. Do not stand in the area of the splitter wedge. • Always locate the wood log in horizontal on the working area. Never try to split askew or against the fiber direction. •...
- Page 7 Textkonserve_HOS 5A_GB Ensure sufficient space within the working area. Risks for tripping and slipping! Poor order may cause accidents. Keep the equipment away from heat, sparks and open fire. Never let the hydraulic oil out on the ground. Cover- and safety devices may not be modified or removed. The equipment is designed as a working place for one person.
- Page 8 Textkonserve_HOS 5A_GB WARNING! Connecting to mains supply Do not connect to the mains before all assembly is done. The motor is dimensioned for the voltage and frequency as stated in the Technical Specifications. Normally the equipment can handle the tasks as far as the voltage doesn´t deviate more than +/- 10% from this value.
- Page 9 Textkonserve_HOS 5A_GB 1. Put the log to be split up along the working surface (2). The log shall be located straight on the main bar, fixated by the two guide plates (6). 2. This log splitter is designed for two-hand operation – left hand is used for the hydraulic valve (11), right hand is used for the ON/OFF switch (7) (Fig.
- Page 10 Textkonserve_HOS 5A_GB Remove the screw + dipstick (14). Be careful with the gasket for the screw! Wipe clean the stick. Put it back (don´t wind it back!) Again, pull out: • If the level is between the two markings, the level is OK. •...
- Page 11 Textkonserve_HOS 5A_GB The splitting wedge is blunt Sharpen the wedge Oil leakage Locate the leakage, call service engineer Hydraulic system sucks air during Loosen the air bleed screw some operation turns before start The pressure relief valve not Call service engineer adjusted correctly Oil leakage at the The air bleed screw wasn´t...
- Page 12 Textkonserve_HOS 5A_GB The legal warranty period from date of purchase is 2 years. If any complaints to the equipment, please contact our Customer Support. In such a case, please have receipt or invoice for the equipment at hand. The warranty means that faulty parts as to our decision are either repaired or replaced. The ownership of replaced parts is transferred to us.
