Wiring

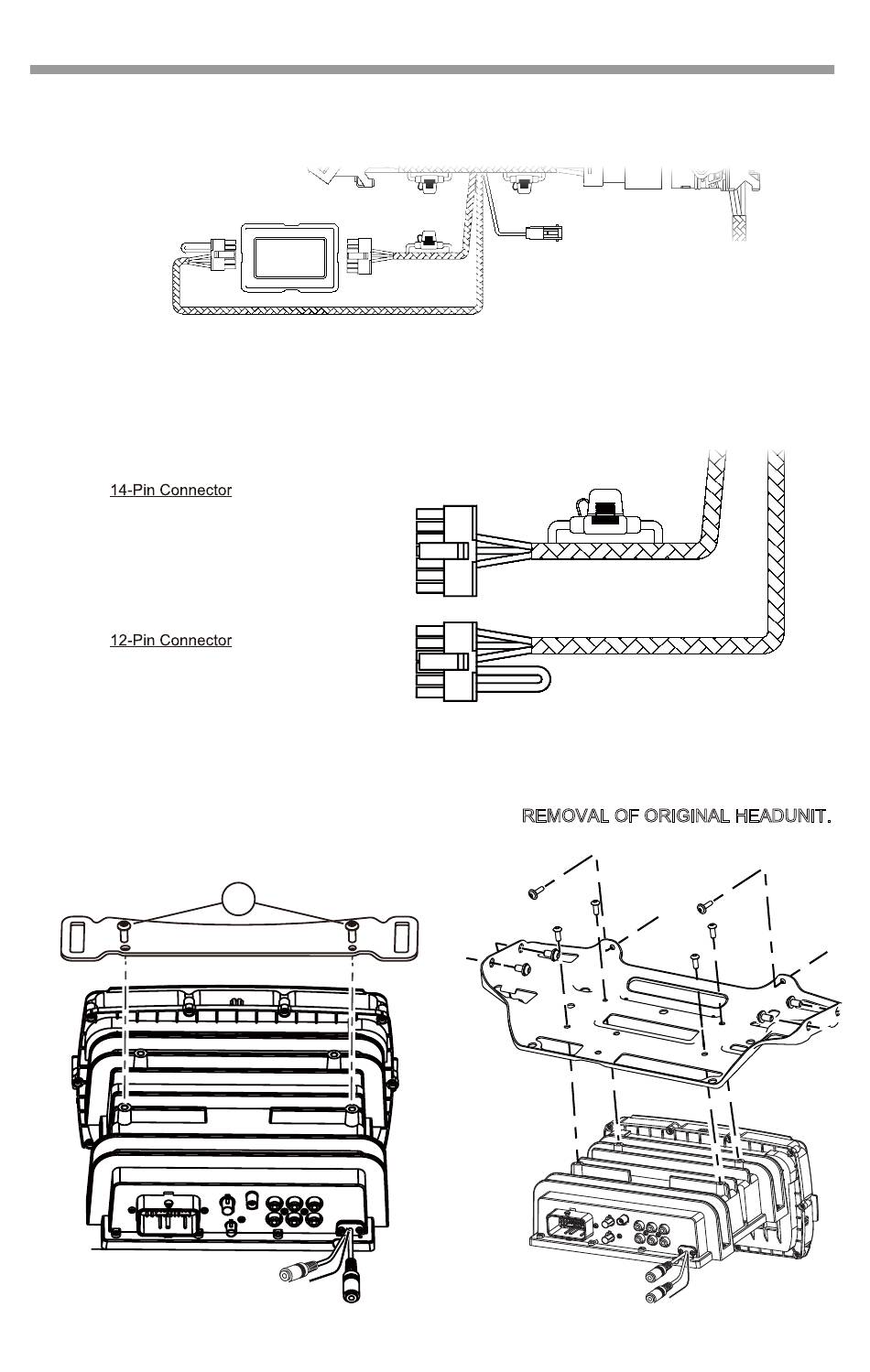

4. If an alternative handlebar integration module other than Scosche is available, skip this step and
proceed to step 5. If included, connect the Scosche handlebar integration module to the corresponding
12-pin and 14-pin connectors on the wire harness of WHD14+.
5. If an alternative handlebar integration module is to be used, cut the wires leading to the 12-pin
and 14-pin connectors and discard them. Follow the color coded call-out below to connect the
wires of WHD14+ wire harness to the corresponding inputs and outputs of the alternate handlebar
control module.
Red..........................ACC turn-on
Orange/White..........Illumination
Violet/White.............CAN -
Green/White............CAN +
Black.......................Ground
Yellow......................12V
Black/White..............Key/SWC Ground
Green/White.............Key/SWC 1
Grey/White...............Key/SWC 2
6. Double check all connections are complete and secure. Reassemble the fairing support bracket
using the original screws to the corresponding screw holes on top of WHD14+. Then, reassemble the
fairing by reversing the model specific instructions covered in REMOVAL OF ORIGINAL HEADUNIT.
ROAD GLIDE
SCOSCHE
2
STREET GLIDE
