HIKVISION DS-KA-RL1E2 Quick Start Manual

Quick Guide

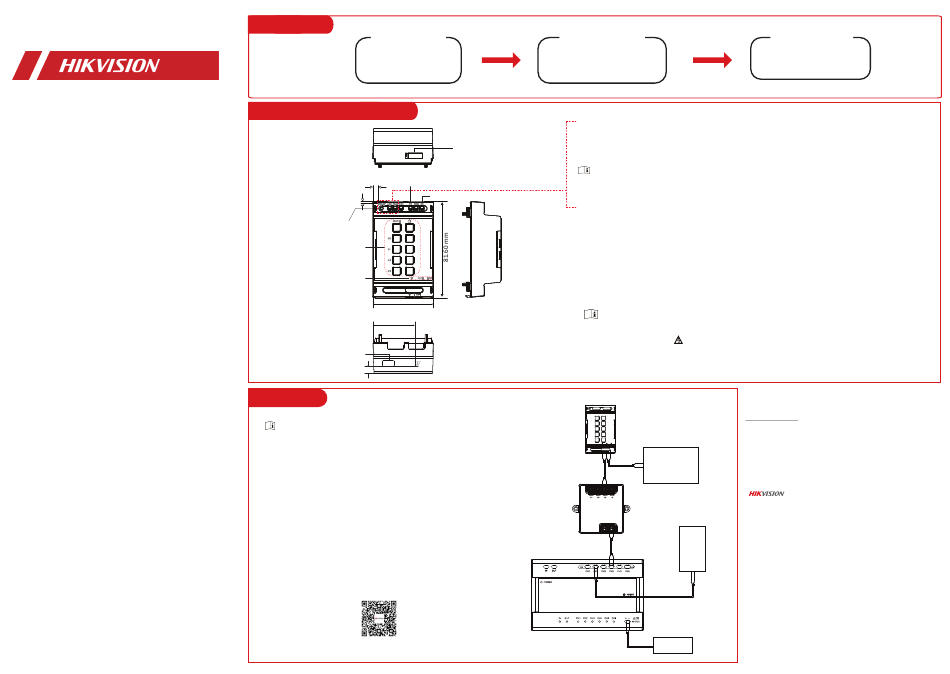

Appearance and Interface
DS-KA-RL1E2
Relay Module
Quick Start Guide
UD39918B-A
1.1 Wiring
•CH3 to CH6 interfaces are 110 W in total. The distributor can connect to
the indoor station via CH3 to CH6. CH1/CH2 interface is 15 W each. The
distributor can connect to the door station via interface CH1 and CH2.
•The relay module can connect the floor shunt via any of the 4 interfaces
(CH1~CH4).
•The lockinterface of the relay can connect to lock, light and mechanical
doorbell.
Scan the QR code to see
information about system
wiring.
1 Wiring
1.1 Wiring
Two Wire In & Two
Wire Out Interface
5.02 mm
Normal Close
Normal Open
1.68 mm
Reset
Button
Rotary
Switch
Indicator
50.96 mm
34.75 mm
Debugging
Serial Port
5.73 mm
2 Installation
2.1 Wall Mounting with Rail
2.2 Wall Mounting with Screws
Reset Button
• Building No.=0
Pressing reset button would restore the device to unactivated state.
• Building No. ≠0
Pressing reset button would restart the device. (Usually used after adjusting the
dial code. )
No need to cut off the power supply.
Light Indicators
Alarm 1: reserved
Alarm 2: The ERR light will flash when encounter invalid mode, relay No., building
No., room No. range and IP address conflict.
• The pictures here are for reference only.
• The device should be used in distribution boxes.
• For the device with the sign indicating hazardous live, the external wiring
connected to the terminals requires installation by an instructed person.
• The relay module supports COM-NO-NC，6A@12~24 VAC/VDC.
Indoor Station
Floor Shunt
Door Station
OUT IN
Video/Audio Distributor
48 VDC
Power Input
3 Configuration
3.1 Quick Configuration
3.2 Use Indoor Station to Configure
Relay Module
