STRAIGHT CONSOLE

IMPORTANT NOTE

Read these instructions carefully, and familiarize yourself with

each procedure before assembling the furniture. Check that you have

all the component parts, and familiarize yourself with each

part before proceeding.

Take all the fittings out of the plastic bag and separate them into

groups.Ensure you have enough space to lay out all the parts

before assembly. To prevent damage to the parts, we recommend

that you assemble the unit on a soft, level surface.

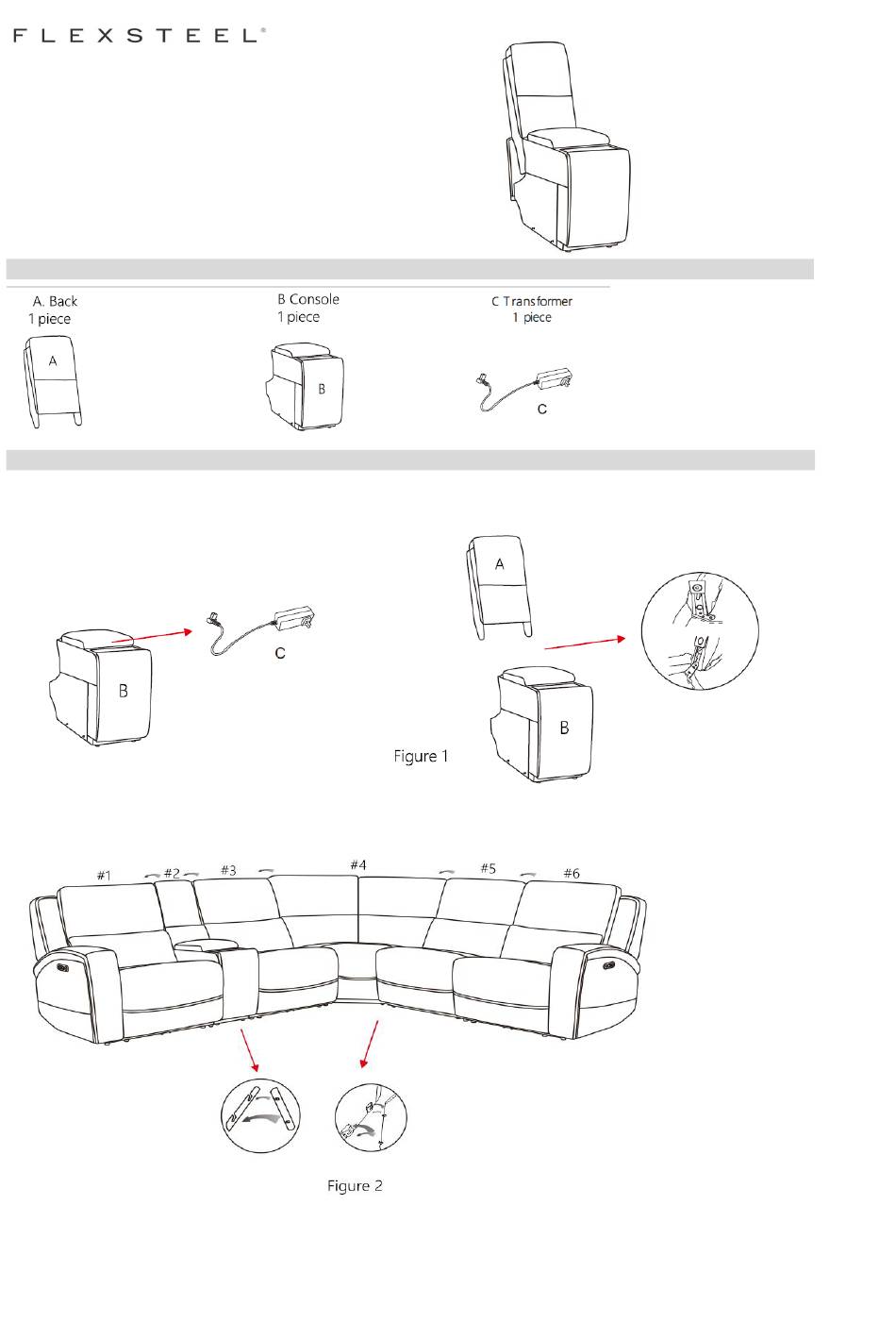

Part List

Assembly Instructions

STEP 1

Take out the transformer C from console B, and attach the Back (A) to the Seat (B). Ensure the latches fit well.

(See Figure 1)

STEP 2

Connect piece #2 with #1 by bracket at side , then #3 with #2, #4 with #3. #5 with #4, #6 with #5. (See Figure 2)

Need help?

Do you have a question about the STRAIGHT CONSOLE and is the answer not in the manual?

Page 1 STRAIGHT CONSOLE IMPORTANT NOTE Read these instructions carefully, and familiarize yourself with each procedure before assembling the furniture. Check that you have all the component parts, and familiarize yourself with each part before proceeding. Take all the fittings out of the plastic bag and separate them into groups.Ensure you have enough space to lay out all the parts...
Page 2 STEP 3 Connect the wire on piece #1 with #2, then #2 with #3. Then connect the wire on piece #6 with #5. Connect the transformers into the power port on the back of the piece#1 and #6, then plug them into a nearby outlet.
Page 3 User Guide for Wireless Charger Attention 1. It is common for heat to be generated in wireless charging through the energy transfer process. This is part of the normal wireless energy transfer. 2. Phone should be centered on the wireless charging icon if an icon is present. The further the current must travel,charging efficiency is reduced and more energy is lost to heat.
Page 4 9. Clean the Charging Pad and Device Back • Dust or grime on the charging surface or the back of your device can disrupt the charging process. Clean both surfaces with a soft cloth. 10. Test with Another Device • If you have another wireless charging-compatible device, try charging it on the pad. If it works, the issue might be with your original device.
