G6000-826

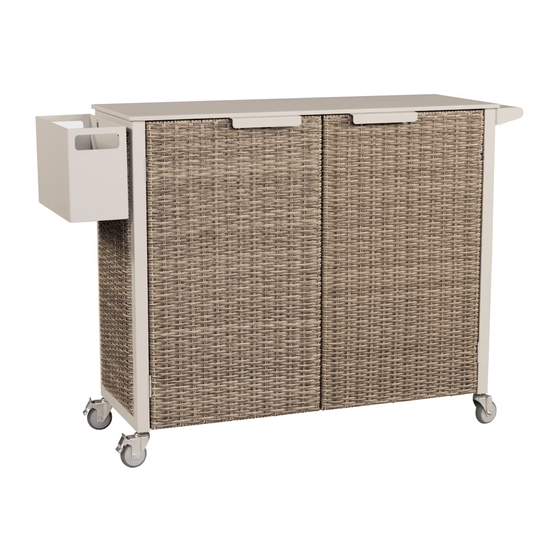

Bar Cart
IMPORTANT NOTE
Carefully remove all the parts from the
carton and put them individually on a soft
cloth to prevent damage to the parts.
We have taken great care in the design of
this product and request that you carefully
and accurately follow our assembly
instructions to ensure proper set-up.
Part List
A.
Top
1 pc.
B.
Top Frame
1 pc.
C.
Base
1 pc.
H.
Shelf
1 pc.
Hardware List
4mm.
Wrench
Key Head
1 pc.
1 pc.
3mm.
Ratchet Wrench
Key Head
1 pc.
1 pc.
D.
Back Panel
1 pc.
1
3
M6x45
M6x15
Long Bolt
Short Bolt
4 pcs.
4 pcs.
2
4
M6x25
M6x15
Medium Bolt
Round Head Bolt
14 pcs.
8 pcs.
E.
Side Frame
1 pc.
I.
Box
1 pc.
J.
Bar
1 pc.
5
Locking
Caster
2 pcs.
6
Non Locking
Caster
2 pcs.
F.
G.
Side Frame
Side Panel
1 pc.
2 pcs.
K.
L.
Door
Door
1 pc.
1 pc.
7
9
M5x15
M6x15
Flat Short Bolt
Flat Short Bolt
12 pcs.
2 pcs.
8
10
Adjustable Pin
Handle
4 pcs.
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FLEXSTEEL G6000-826
Summary of Contents for FLEXSTEEL G6000-826
- Page 1 G6000-826 Bar Cart IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent damage to the parts. We have taken great care in the design of this product and request that you carefully and accurately follow our assembly instructions to ensure proper set-up.
-
Page 2: Assembly Instruction
Assembly Instruction / 2 4 IMPORTANT Tighten Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ... - Page 3 Assembly Instruction / 3 4 STEP 3 Attach Side Panels (G) to unit with Round Head Bolts (4). Attach Locking Casters (5) and Non Locking Casters (6) to unit by using Wrench. (See Figure 2) Figure 2 STEP 4 Turn over unit to its upright position. Attach Box (I) to unit by inserting hook in side panel into hole in Box (I).
- Page 4 Assembly Instruction / 4 4 STEP 5 Attach Handles (10) to Doors (K) and (L) with Short Bolts (3). (See Figure 6) Attach Doors (K) and (L) to unit with Flat Short Bolts (7) by using 3mm. Key Head. (See Figure 7) Note: Maximum load capacity for Top Panel, Shelf and Bottom Panel: 30LBS.
-
Page 5: Care Instructions
Do not place hot items directly on the table. Use placemats or trivets under hot items and coasters under beverages to prevent marks and stains. Flexsteel Industries, Inc. For Parts or Customer Service, call toll-free: 1-888-415-3979 Monday-Friday 8:00-5:00pm Central Time Email: customersolutions@flexsteel.com...
