Work Pro NEO5 IP User Manual page 3

NEO5 IP
This loudspekaer model can be used for outdoor purpose thanks to it high IP range (IP 65).
The frontal grille is sealed and the connection is made through a multi-conductor cable
sealed with a gland
NEO5 IP
Remember, if you need connect the loudspeaker
to 70,100V line position, the cables marked as 2
& 3 (Orange, Green), corresponding to 8 , MUST
BE CONNECTED BETWEEN THEM.
Make sure to select the correct power cable
before connecting the loudspeaker
to a 70/100V line amplifier. If the low
impedance position (8 ) is selected, the
loudspeaker could be damaged!

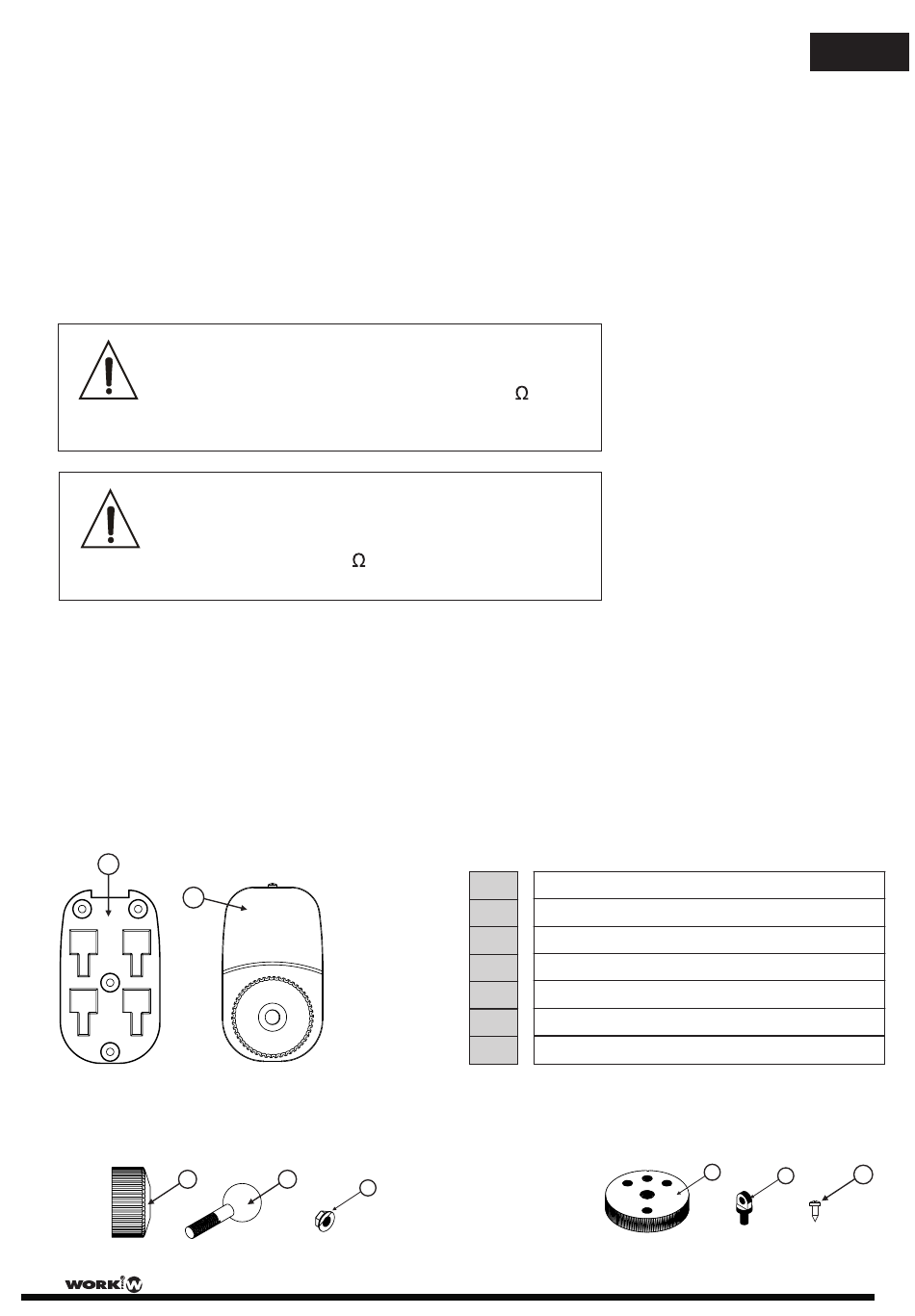

Plastic
Wall-mount bracket
1
2
3
(IP 65 rating)
(connection cautions)
4
5
2
1
Rear wall mounting part
2
Allen Screw 45 mm x M6
3 M6 nut
4 Threaded Ball
5
M10 nut
6
Rear threaded insert
7
Screw eyelet for safety cable
User Manual/Manual de Uso
EN
(a)
(a) (b)
(a) Mounted to loudspeaker
6
8
7
NEO5 IP
