Instruction Manual

Electro-Pneumatic Control Valve for Valve Unit

Featured models: CV10-M2/CT20/CT20D

172-65742M-04

Publication date 30 October 2024

Table of Contents

Need help?

Do you have a question about the CV10-M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for TLV CV10-M2

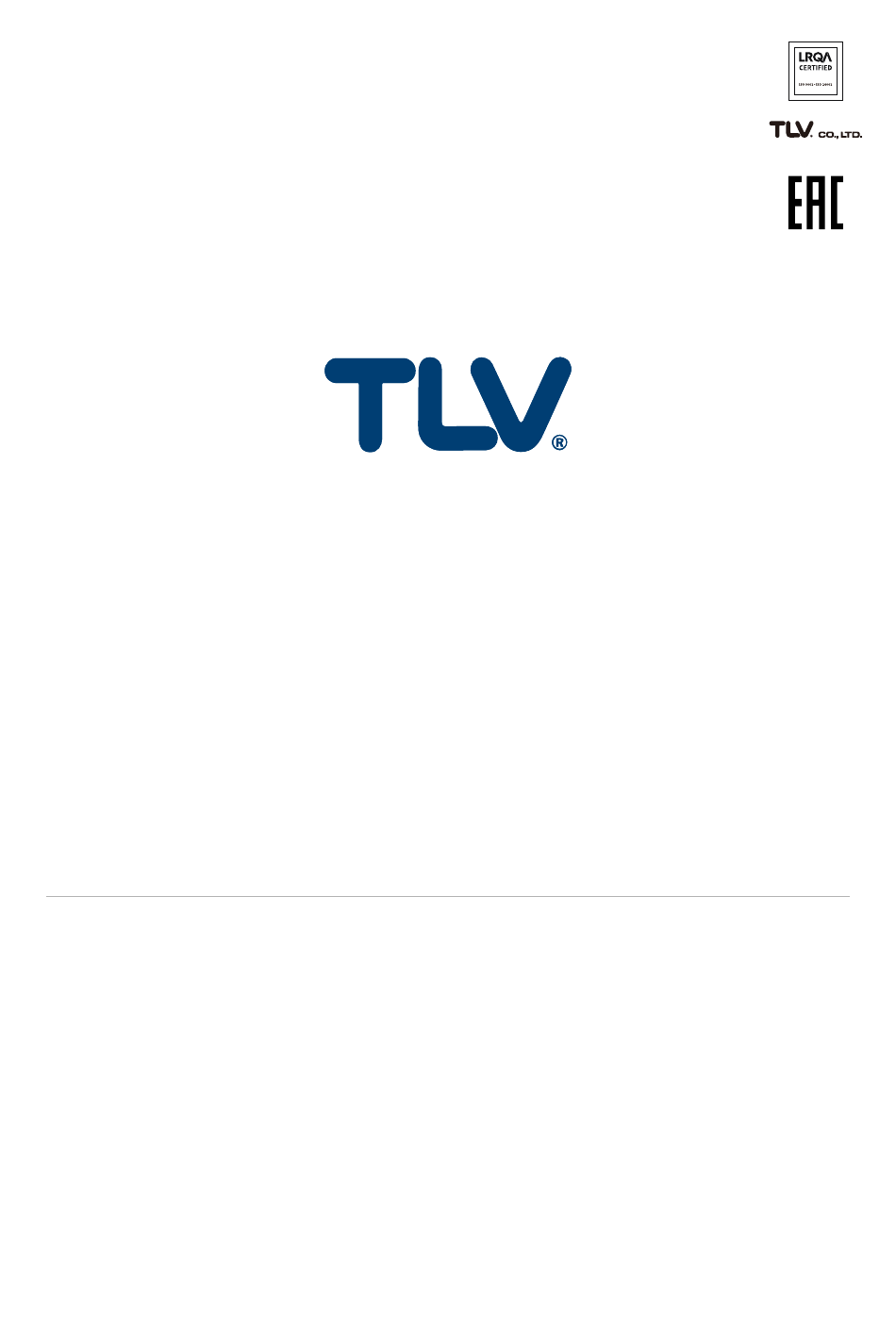

Page 1 ISO 9001 ISO14001 Manufacturer Kakogawa, Japan is approved by LRQA Ltd. to ISO 9001/14001 Instruction Manual Electro-Pneumatic Control Valve for Valve Unit Featured models: CV10-M2/CT20/CT20D 172-65742M-04 Publication date 30 October 2024 Copyright © 2024 TLV CO., LTD.
Page 2: Table Of Contents
Table of Contents Introduction ..........................3 Safety Considerations ......................4 Specifications ........................... 6 Configuration ..........................7 Installation ..........................8 Maintenance ........................... 11 Disassembly/Reassembly ...................... 12 Troubleshooting ........................21 TLV EXPRESS LIMITED WARRANTY ................... 22 Service ........................... 24...
Page 3: Introduction
Introduction Thank you for purchasing the electro-pneumatic control valve CV10-M2/CT20/CT20D. This product has been thoroughly inspected before being shipped from the factory. When the product is delivered, before doing anything else, check the specifications and external appearance to make sure nothing is out of the ordinary. Also be sure to read this manual carefully before use and follow the instructions to be sure of using the product properly.
Page 4: Safety Considerations
• The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions.
Page 5 Caution Be sure to use only the recommended components when repairing the product, and NEVER attempt to modify the product in any way. Failure to observe these precautions may result in damage to the product and burns or other injury due to malfunction or the discharge of fluids. Caution Use only under conditions in which no freeze-up will occur.
Page 6: Specifications
Specifications Caution Install properly and DO NOT use this product outside the recommended operating pressure, temperature and other specification ranges. Improper use may result in such hazards as damage to the product or malfunctions that may lead to serious accidents. Local regulations may restrict the use of this product to below the conditions quoted.
Page 7: Configuration
Configuration CV10-M2/CT20 CT20D ⑳ ⑳ ⑭ ⑮ ⑲ ⑥ ③ ⑦ ⑱ ④ ③ ⑩ ⑯ ⑥ ⑤ ④ ⑲ ⑭ ⑧ ⑦ ⑪ ② ⑱ ⑧ ⑨ ⑫ ⑮ ⑪⑫ ⑬ ⑯ ② ⑤ ① ⑭ ⑩ ① ⑨...
Page 8: Installation
Installation Caution Install properly and DO NOT use this product outside the recommended operating pressure, temperature and other specification ranges. Improper use may result in such hazards as damage to the product or malfunctions that may lead to serious accidents. Local regulations may restrict the use of this product to below the conditions quoted.
Page 9 Removing protective caps and seals Before installation, be sure to remove all protective seals and caps. (Found in ２ locations, on the product inlet and outlet(s).) CV10-M2/CT20 CT20D Installation angle Install the product vertically, so that the arrow mark on the body points horizontally in the direction of flow.
Page 10 Drainage port usage example The threaded condensate drainage port at the bottom of the body makes possible installation of a blow valve or steam/air trap. Because the condensate drainage port is located on the primary side of the product, condensate flowing in the primary side piping can quickly be eliminated, contributing to prevention of valve seat erosion and rapid start-up of the equipment.
Page 11: Maintenance
Maintenance Caution Take measures to prevent people from coming into direct contact with product outlets. Failure to do so may result in burns or other injury from the discharge of fluids. When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature.
Page 12: Disassembly/Reassembly
Disassembly/Reassembly Caution When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature. Disassembling or removing the product when it is hot or under pressure may lead to discharge of fluids, causing burns, other injuries or damage.
Page 13 Detaching/Reattaching the Stem Connector Nut and Locknut Part Name During Disassembly During Reassembly Locknut, Loosen the locknut by holding the Do not supply air to the actuator at a pressure of Stem stem connector nut with a spanner 0.6 MPaG or more Connector DO NOT disassemble with the Consult the table of tightening torques and tighten...
Page 14 Disassembling/Reassembling the Gland and its Components In the procedure below, first partially loosen only the guide bushing, and then remove the stem before removing the other parts. (The procedure is most easily performed if the guide bushing is loosened while it is attached to the valve body.) Part Name During Disassembly During Reassembly...
Page 15 Instructions for reverse action (air to open, fail closed) stroke adjustment Make sure that the valve plug is securely seated in the valve seat. Actuator Stem Valve Stem Supply the maximum air pressure (0.33 MPaG) of the spring range (e.g. 0.09 to 0.33 MPaG) to the actuator.
Page 16 Instructions for direct action (air to close, fail open) stroke adjustment Make sure that the valve plug is securely seated in the valve seat. Actuator Stem Valve Stem Screw the locknut and stem connector nut onto the valve stem until they are just short of coming into contact with the guide bushing.
Page 17 Disassembling/Reassembling the Valve Bonnet Section Part Name During Disassembly During Reassembly Remove with a socket wrench Consult the table of tightening torques and tighten to the proper torque, making sure to tighten evenly Valve Bonnet Pull up and off, being careful Reattach, being careful not to damage the valve not to damage the valve plug plug or valve seat;...
Page 18 During Disassembly During Reassembly Valve Seat This procedure requires a special tool; Over-tightening could result in damage contact TLV for details to the valve seat and body; consult the table of tightening torques and tighten to the proper torque Valve Seat...
Page 19 355, 750 cm ― Drain Plug 15 to 150 Size depends on bolt specifications. Contact TLV for details. Actuator area RC(PT) , other stands available. Torque values with sealing tape wrapped 3 to 3.5 turns around the threads Note • Coat all threaded portions with anti-seize.
Page 20: Exploded View
The shape of the plug differs depend on the size and the Cv value A special tool is required for disassembly/ reassembly Front (for models CV10-M2/CT20/CT20D): Model, size, date of manufacture, Back (for models CT20/CT20D): Spring range, Cv value, etc. Installed only on CT20 and CT20D...
Page 21: Troubleshooting
Troubleshooting Caution When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature. Disassembling or removing the product when it is hot or under pressure may lead to discharge of fluids, causing burns, other injuries or damage.
Page 22: Tlv Express Limited Warranty
Subject to the limitations set forth below, TLV CO., LTD., a Japanese corporation ("TLV"), warrants that products which are sold by it, TLV International Inc. ("TII") or one of its group companies excluding TLV Corporation (a corporation of the United States of America), (hereinafter the "Products") are designed and manufactured by TLV, conform to the...
Page 23 HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR ITS TLV GROUP COMPANIES WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO OTHER PROPERTY, DAMAGE TO BUYER’S OR THE FIRST...
Page 24: Service
Service For Service or Technical Assistance: Contact your TLV representative or your regional TLV office. In Europe: Tel: [49]-(0)7263-9150-0 Daimler-Benz-Straße 16-18, 74915 Waibstadt, Germany Tel: [44]-(0)1242-227223 Units 7 & 8, Furlong Business Park, Bishops Cleeve, Gloucestershire GL52 8TW, U.K. Tel:...
