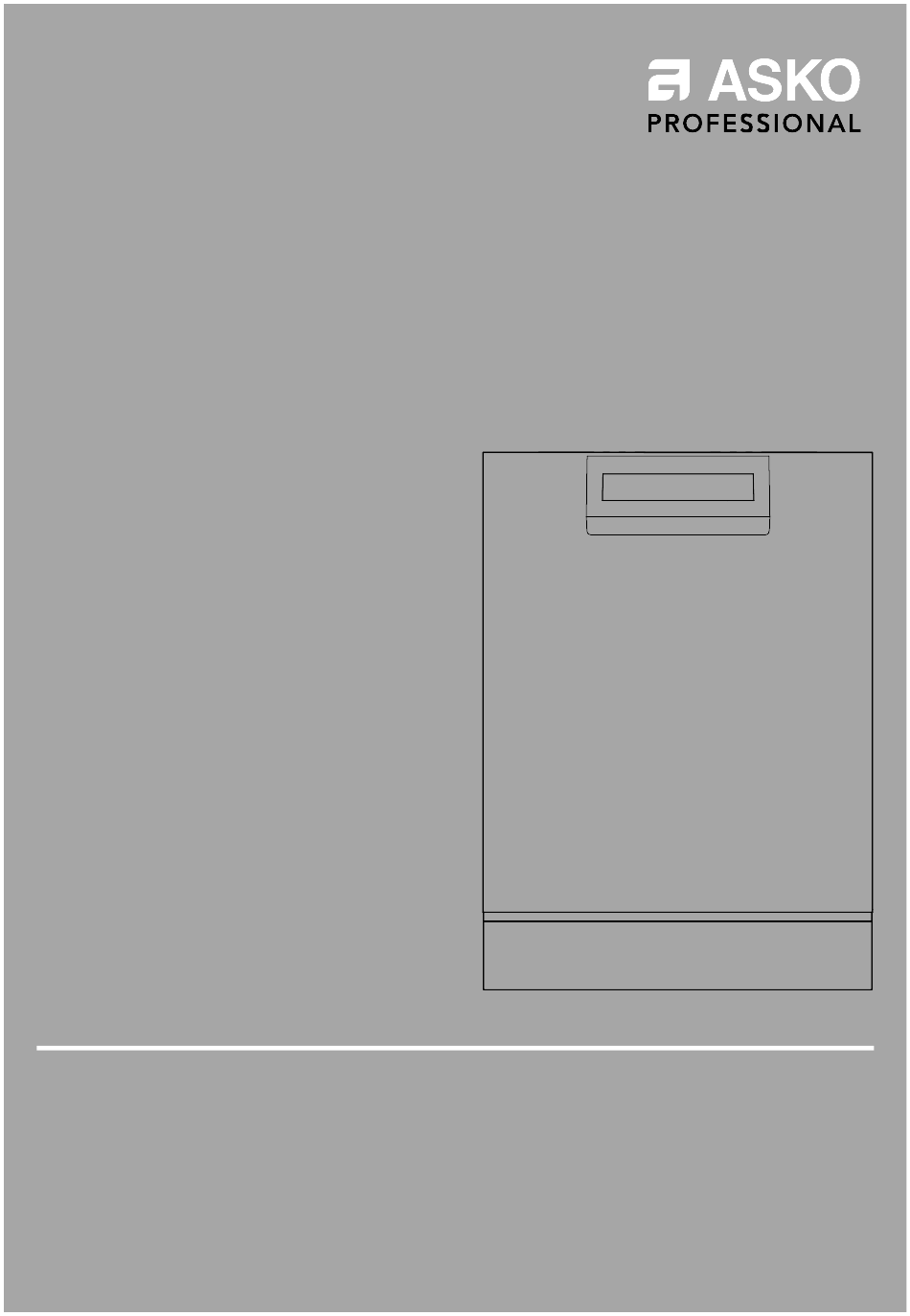

USER MANUAL
DWC6422BIW
Dishwasher
DWC6422BIS
EN
DWC6422BIWUK
DWC6422BISUK

Advertisement

loading
Need help?

Need help?

Do you have a question about the PROFESSIONAL DWC6422BIW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asko PROFESSIONAL DWC6422BIW

Summary of Contents for Asko PROFESSIONAL DWC6422BIW

  • Page 1 USER MANUAL DWC6422BIW Dishwasher DWC6422BIS DWC6422BIWUK DWC6422BISUK...

  • Page 2: Table Of Contents

    Number of cycles ........Unloading the dishwasher ......Technical data and energy labelling ..Program chart ..........Technical data ..........ASKO Connect Pro & ConnectLife ... Information for consumers ......ASKO Connect Pro ........Information for test institute ......ConnectLife ..........

  • Page 3: Your Dishwasher

    Install the dishwasher, see the chapter Installation. Then open the door and press "Welcome to your new ASKO dishwasher. This is a first time setup." is shown on the display the first time the dishwasher is switched on. It is important that you choose the right settings to ensure good dishwashing results.

  • Page 4: Safety Instructions

    Safety instructions Read the user manual and keep it in a safe place! Number of standard place settings: 13 Never use the dishwasher for any purpose other than that specified in these operating instructions. Do not load the dishwasher door or dishwasher baskets with anything other than dishes.

  • Page 5: Sani Lock

    Safety instructions WARNING! Children must be supervised – dishwasher detergent is corrosive! Sani lock To prevent the risk of burn injuries, the door cannot be opened while the dishwasher temperature exceeds 65 °C. Lock You can activate the Lock setting to prevent children or persons with reduced mental capabilities from starting the dishwasher.

  • Page 6: Symbols On The Appliance

    Safety instructions Symbols on the appliance Read the user manual. Recycle as electrical waste. Approved in accordance with the relevant EU directives. Approved in accordance with the relevant UK legal requirements.

  • Page 7: Before Washing For The First Time

    Before washing for the first time Water hardness In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and the dishwasher. Checking water hardness Water hardness is specified using German degrees of water hardness (°dH), French degrees of water hardness (°fH), English degrees of water hardness (°eH) or millimoles per litre (mmol/l).

  • Page 8: Basic Settings

    Basic settings Open the door. Press "Welcome to your new ASKO dishwasher. This is a first time setup." is shown on the display. It is important that you choose the right settings to ensure good dishwashing results. Select setting with or .
  • Page 9 Before washing for the first time Settings Connection setup Connect the dishwasher to your wireless network and pair with your smartphone/tablet. In the ConnectLife application, go to the »Add devices« menu and select the appropriate type of device. Then scan the QR code (it can be found on the serial number plate of the appliance;...

  • Page 10: Top Up Rinse Aid

    Before washing for the first time Top up rinse aid Top up the rinse aid compartment with rinse aid if you have selected Rinse aid 1 - 5. Press to open Press to close 1. Open the rinse aid compartment lid. 2.

  • Page 11: Top Up Auto Dose

    Before washing for the first time Top up auto dose Fill the automatic dosing compartment with dishwasher detergent gel if you have activated the Auto dose setting. Lift up to open 1. Open the lid of the automatic dosing compartment for dishwasher detergent gel. 2.

  • Page 12: Greener Dishwashing

    Greener dishwashing Save energy and water When using a dishwasher in a residential setting, less energy and water are generally used compared to washing the dishes by hand. Do not rinse under running water Do not rinse the dishes under running water as this will lead to increased energy and water consumption.

  • Page 13: Loading The Dishwasher

    Loading the dishwasher Fragile dishes Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand high heat, others can be damaged by dishwasher detergent. Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic.

  • Page 14: Upper Basket

    Loading the dishwasher The appearance of the baskets may differ depending on the dishwasher setup. Upper basket Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass shelf and knives are placed in the knife stand on the right.

  • Page 15: Lower Basket

    Loading the dishwasher Lower basket Place plates, side plates, serving dishes, pots and cutlery (in the cutlery basket) in the lower basket. Adjustable plate supports The adjustable plate supports can be adjusted to suit the dishes. Release the plate supports by pushing them inwards before repositioning them.

  • Page 16: Cutlery Basket

    Loading the dishwasher Washing large plates You can adjust the lower basket for plates with a diameter of 25-31 cm by moving the adjustable plate supports and their fixtures to increase the distance between the tine rows. Accessory Buy a wine glass shelf with space for six tall wine glasses.
  • Page 17 Loading the dishwasher Cutlery basket with lid Accessory Buy a mini cutlery basket. The extra cutlery basket is flexible and can be dismantled and attached to the lower basket or the large cutlery basket to make an extra large cutlery basket. This accessory is available where you bought the dishwasher.

  • Page 18: Using The Dishwasher

    Using the dishwasher Add detergent You have two options for adding detergent – manual or automatic. To activate Auto dose, see the chapter Settings. The manual detergent compartment can be used as a supplement even when Auto dose is activated (e.g. for dishwasher detergent with bleaching agent or if the automatic dosing compartment is empty).

  • Page 19: On/Off

    Using the dishwasher On/Off Select a pre-selected program Start/Stop Navigation buttons for selecting from more programs On/Off Open the door and press . Also turn on the water tap if it is turned off. Select program Eco is always pre-selected. To select another program, press , or . You can also select a program by pressing until the desired program is shown on the display.

  • Page 20: Start/Stop

    If the dishwasher is not started or the door is not closed within 2 minutes of the last time the control panel was pressed, the machine switches off. To remote start the dishwasher, see the chapter ASKO Connect Pro & ConnectLife. Stopping or changing a program If you want to change program after starting the dishwasher, open the door then press and hold for three seconds.

  • Page 21: If You Want To Load More Dishes

    Using the dishwasher This may differ somewhat from time to time depending on the temperature of the water supply, the amount of dishes, the ambient temperature and other factors. During the first run of each program, the remaining time displayed can be slightly misleading, as the dishwasher is estimating the time.

  • Page 22: Once The Program Has Finished

    Using the dishwasher Once the program has finished Once the program has finished, "Program done" appears on the display. At the end of the program one short signal will sound. Chapter Settings describes how to change this function. The dishwasher switches off automatically after the program ends. Shut off the water tap after each use (if required by your insurance company).

  • Page 23: Program Chart

    Program chart...

  • Page 24: Asko Connect Pro & Connectlife

    ASKO Connect Pro is a web-based platform that enables you to organise, manage and monitor all your professional ASKO appliances regardless of where they are installed. Once you have connected a professional appliance in the ConnectLife app, a link to ASKO Connect Pro is shown. For more information, please see https://professional.asko.com/.
  • Page 25 ASKO Connect Pro & ConnectLife NOTE! The dishwasher can always be used without the app. When the dishwasher's control panel is pressed, commands from the ConnectLife app are blocked for 10 seconds. If you have any questions, please visit us at www.connectlife.io.

  • Page 26: Settings

    Settings Press To open the Settings, press until Settings is shown on the display and confirm your selection with Select setting Confirm current setting Settings Alternatives Lock On/Off To prevent children or persons with reduced mental capabilities from starting the dishwasher, the Lock setting can be activated.
  • Page 27 Settings Settings Alternatives Auto dose Off, 15-40 ml Activate this setting if you want to use automatic dosing of detergent. This dishwasher is fitted with a water softener, so use detergent and rinse aid doses suitable for soft water. The exact dosage depends on the selected program.
  • Page 28 Settings To open the Advanced Settings, press until Advanced Settings is shown on the display and confirm your selection with Press: , , , Advanced Settings Alternatives Language You can choose the language used for the display. WiFi The current WiFi status is shown on the display. WiFi status Connect the dishwasher to your wireless network to be able to remote control the dishwasher using the ConnectLife app.
  • Page 29 Settings Advanced Settings Alternatives Display Logotype On/Off Setting to hide the logo shown on the display. Display Brightness 1/2/3/4 For adjusting the brightness of the display. Notification volume 0/1/2/3 The buzzer indicates when a dishwashing program has ended. Error messages are always indicated by a loud buzzer.
  • Page 30 Settings Advanced Settings Alternatives Interior light at power off On/Off Select whether the interior light is to be switched on when the dishwasher is turned off and the door is opened. (If is turned on, the interior light is always switched on when the door is opened.) Failure readout...

  • Page 31: Care And Cleaning

    Care and cleaning Top up rinse aid When the rinse aid needs topping up, the symbol lights on the display. See the chapter Before washing for the first time. Top up salt When the salt needs topping up, the symbol lights on the display. See the chapter Before washing for the first time.

  • Page 32: Clean The Filters

    Care and cleaning Clean the filters Coarse filter The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter when necessary. It should be cleaned at regular intervals depending on how often the dishwasher is used.

  • Page 33: Cleaning The Spray Arms

    Care and cleaning NOTE! Dishwashing results may be affected if the coarse and fine filters are incorrectly fitted. The dishwasher must not be used without the filters in place! Check that the yellow drainage pump stop (on the right in the bottom drain) is in place.

  • Page 34: Clean The Outside Of The Dishwasher

    Care and cleaning Upper spray arm Pull out the upper basket. Unscrew the spray arm bearings anticlockwise to remove the spray arm from the upper basket. Lower spray arm Pull the lower spray arm straight up to release it. Clean the outside of the dishwasher Door and door seal Open the door.

  • Page 35: Remove Blockages

    Care and cleaning Remove blockages Unblocking the drainage pump If the dishwasher still contains water after the program has finished, something may be blocking the drainage pump, which results in the error message Water outlet fault or BLDC drain pump fault. 1.

  • Page 36: Winter Storage/Transport

    Care and cleaning 7. Plug the machine into the wall socket and turn on the water tap. Allow the pressure to settle for a while and check that the connection is watertight. Outer filter on inlet hose Gasket Winter storage/Transport Store the dishwasher above freezing temperature and avoid long transport distances in very cold weather.

  • Page 37: Troubleshooting

    Troubleshooting Error messages Action Overfilling water 1 Unblocking the drainage pump. See the chapter Care and cleaning. If the problem persists, contact your nearest service centre. Water outlet fault See "Water remains in the dishwasher" under "Problem" in the table below. If the problem persists, contact your nearest service centre.

  • Page 38: General

    Troubleshooting General Problem Possible causes Action The control panel does not react You have pressed the control Wait a moment then try again. when pressed. panel too soon after opening the door. Lock is activated. See the chapter Safety instructions. Dirt on the control panel.
  • Page 39 Troubleshooting Problem Possible causes Action The dishwasher does not start. has not been pressed. Press until the display shows "Program started, close door". The door is not properly closed. Check. Salt compartment empty. Top up with salt. See the chapter Care and cleaning. The dishwasher has been Close the door and wait.
  • Page 40 Troubleshooting Problem Possible causes Action The dishes are not clean. The spray arms are not rotating Check that the dishes are not freely. blocking the spray arms. Spray arm holes or bearings Clean the spray arms. See the blocked. chapter Care and cleaning. Unsuitable dishwashing Select a program with a high program.
  • Page 41 Troubleshooting Problem Possible causes Action Spots on stainless steel or silver. Some foodstuffs, such as Rinse off these types of mustard, mayonnaise, lemon, foodstuffs if not starting the vinegar, salt and dressings, can dishwasher immediately. Use cause spots on stainless steel if the Rinse and hold program.
  • Page 42 Troubleshooting Problem Possible causes Action Detergent residue in the The detergent compartment was The detergent compartment detergent compartment after damp when adding detergent. must be dry when adding dishwashing. detergent. The detergent compartment has Check that the dishes are not been blocked.
  • Page 43 Troubleshooting Problem Possible causes Action Bad odour in dishwasher. Dirt around the seals and in Clean with washing-up brush corners. and low foaming cleaner. Low temperature programs have Run a program with a high been selected for a prolonged temperature once or twice a period.

  • Page 44: Wifi

    Connect the dishwasher to your connected to your wireless wireless network. See the symbol does not appear on network. chapter ASKO Connect Pro & the display. ConnectLife. WiFi connection is deactivated. Activate WiFi connection. See WiFi connection On/Off in the chapter Settings.

  • Page 45: Installation

    Installation [mm] *Remove the locking nuts when installing in a recess measuring 820-821 mm. Nominal dimensions. Actual measurements may vary. Safety instructions Connections to electricity, water and drainage must be performed by a qualified professional. Always follow applicable regulations for water, drainage and electricity. Take care during installation! Wear protective gloves! There must always be two people! Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.

  • Page 46: Transport Protection For The Door

    Installation Transport protection for the door Do not forget to remove the transport protection for the door when unpacking the dishwasher. Placing the dishwasher The dishwasher is intended to be built-in under a worktop. The built-in measurements are shown in the illustration.

  • Page 47: Adjust The Height And Slide The Dishwasher Into Place

    Installation NOTE! The surface to which the protective film is affixed must be clean and dry. Adjust the height and slide the dishwasher into place 1. Start by measuring the height from the floor to the bottom edge of the worktop. 2.

  • Page 48: Drainage Connection

    Installation Check that the drainage hose has no kinks or sharp bends. Also check that there is nothing that can damage the hoses. Check that the machine is installed such that the door opens freely, otherwise door lock functionality may be disrupted. 7.

  • Page 49: Connection To Water Supply

    Installation Max. 950 mm The drainage hose can also be connected to a connection nipple on the sink unit's water trap. The connection nipple must have an internal diameter of at least 14 mm. The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose must not exceed 4.5 m).

  • Page 50: Electrical Connection

    Installation Install the double check valve (UK only) Install the double check valve between the water tap and the inlet hose. (Found in the enclosed plastic bag.) Double check valve Electrical connection Information about the electrical connection can be found on the serial number plate. This specification must match the electricity supply.

  • Page 51: Dishwasher Toe Kick

    Installation After fastening the machine, check that the front feet still touch the floor. Dishwasher toe kick The dishwasher is supplied with a toe kick. Fit the sound insulation (only certain models) Fit the toe kick...

  • Page 52: Service

    Read the chapter Troubleshooting before contacting the service centre. If you have encountered a problem that you cannot resolve, please contact your nearest service centre for professional help, see www.asko.com. Our website also has information about spare part availability and what you can repair yourself.

  • Page 53: Technical Data And Energy Labelling

    In accordance with the EN 60436 standard. Information for consumers Information about your appliance can be found at https://global.asko.com/energy-label. You can also find information in the EU Product Registration database for Energy Labelling, EPREL. Scan the QR code on the energy label supplied with the dishwasher (or go to https://eprel.ec.europa.eu and search for the model name).
  • Page 54 WWW.ASKO.COM 931506 We reserve the right to make changes.
