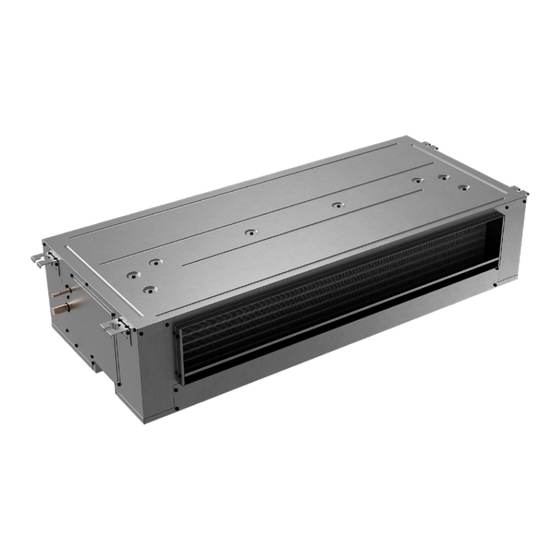

Goodman ACST Series Manual

■
Product Features
• All-Aluminum tube/aluminum fin coil
• Direct-drive, resilient-mount, multi-speed motor
• Sequence-controlled and rust-resistant
nickel chromium heating elements
of 5, 6, 8 and 10 kW
• High-efficiency evaporator coil
• Quiet operation
• ACST Models: Equipped with a factory
installed and fully adjustable TXV for
improved performance
• Factory installed casing along with
mounting brackets for all tonnages
• Configurable front and bottom return
for all tonnages
• Factory installed R-32 sensor designed
for the lifespan of the coil
SS-GACST-R32
• AHRI Certified; ETL Listed
• Primary/secondary drain connection
in a high-temperature plastic drain pan
• Suitable for free-return installation
(non-ducted return air)
• Galvanized-steel construction
• Factory-installed pull-type disconnect
• Easy service access
• Optimized for the use with R-32 refrigerant
• Cabinet air leakage less than 2% at 1 inch H
tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 1 inch H
tested in accordance with ASHRAE standard 193
Complete warranty details available from your local dealer/contractor or at www.daikincomfort.com. To receive the
*
10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration
and some of the additional requirements are not required in Florida, California, or Québec. The duration of warranty
coverage in Texas and Florida differs in some cases. Other limitations and exclusions apply; refer to complete warranty
details for a full list of limitations and exclusions.
www.goodmanmfg.com
ACST Series
Ceiling-Mount Air Handlers
1½ to 2½ Tons
Contents
Nomenclature .........................................2
Product Specifications ............................3
Dimensions .............................................4
Airflow Data ............................................5
Heat Kit Data ............................................5
Wiring Diagram .......................................6
Accessories .............................................7
