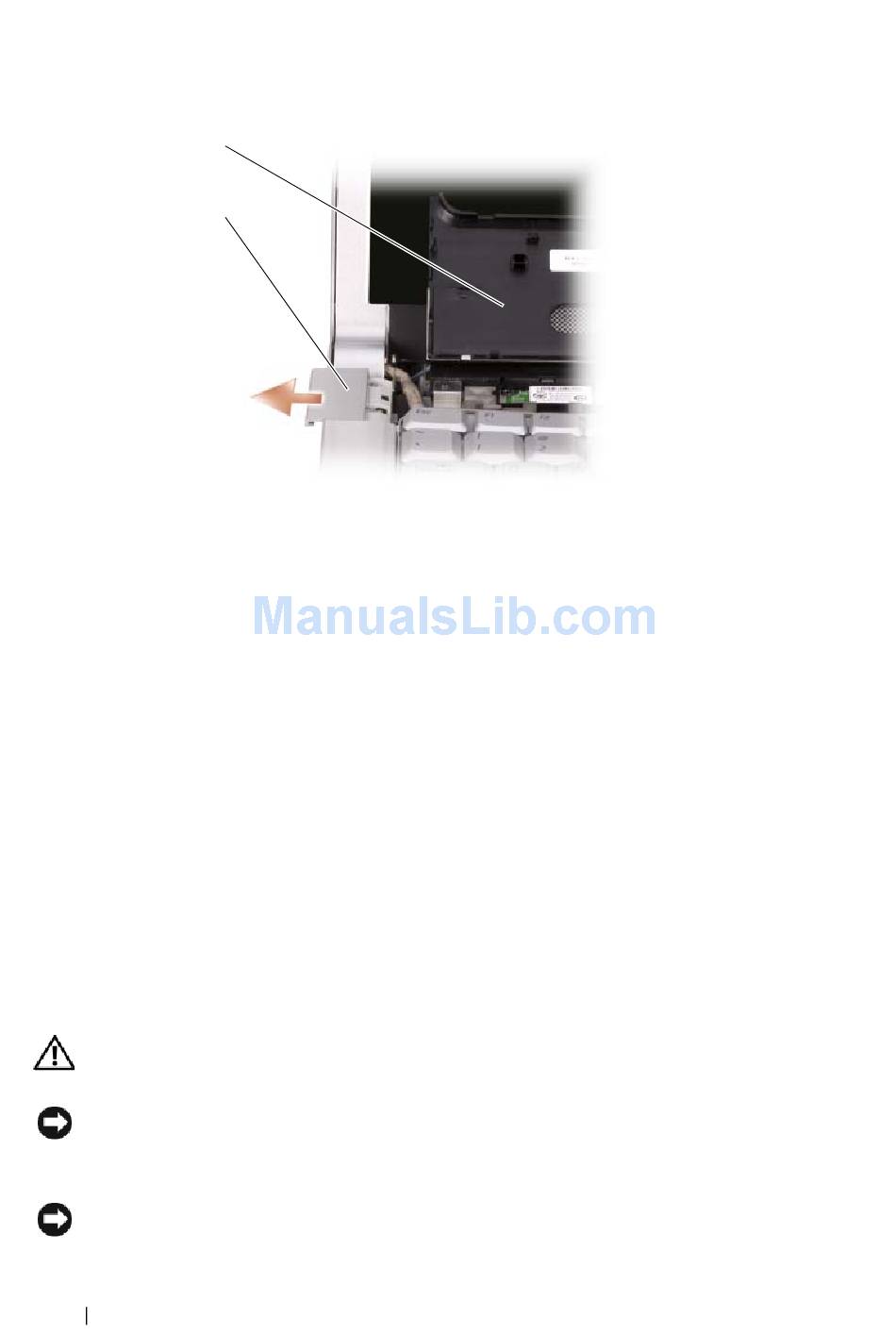

1 center control cover

Replacing the Center Control Cover and Hinge Covers

1 Replace the hinge covers.
2 To reconnect the cable that attaches the center control cover to the system
board, place the cable inside the cable connector and push its black
securing tabs inside with your fingertips.
3 Snap the center control cover in place.
4 Turn the computer over and replace the three M2 x 2-mm screws that
secure the center control cover to the computer base.

Keyboard

For more information about the keyboard, see "Using the Keyboard and
Touchpad" on page 39.
CAUTION:
safety instructions in the Product Information Guide.
NOTICE:
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on the back of the computer).
NOTICE:
To help prevent damage to the system board, you must remove the battery
from the battery bay before you begin working inside the computer.
138
Adding and Replacing Parts
1
2
Before you begin any of the procedures in this section, follow the
To avoid electrostatic discharge, ground yourself by using a wrist
2
hinge cover (2)
