6. Fastening

6.1 Fastening with glue pad

6.2 Fastening with screws

(Manual)
1. Before fastening, test to ensure that your PIN code keypad AX reaches
the locking device (range varies depending on locking device, see
nical data [ 28] ).
}
2. Allow the space required to insert a screwdriver so that the housing can
be opened again at a later point in time.
Adhesive mounting is the fastest way to mount your PIN code keypad AX .
PIN code keypad AX already programmed.
ü
Subsurface clean and free of grease.
ü
1. Attach the supplied special adhesive pad to your PIN code keypad AX.
2. Align your PIN code keypad AX at its required position.
3. Press your PIN code keypad AX to glue it firmly into place.
9 PIN code keypad AX is mounted.
You can securely fasten your PIN code keypad AX with screws.
ü PIN code keypad AX already programmed.
Slotted-head screwdriver (size TX 6) - not included in the supplied
ü
package.

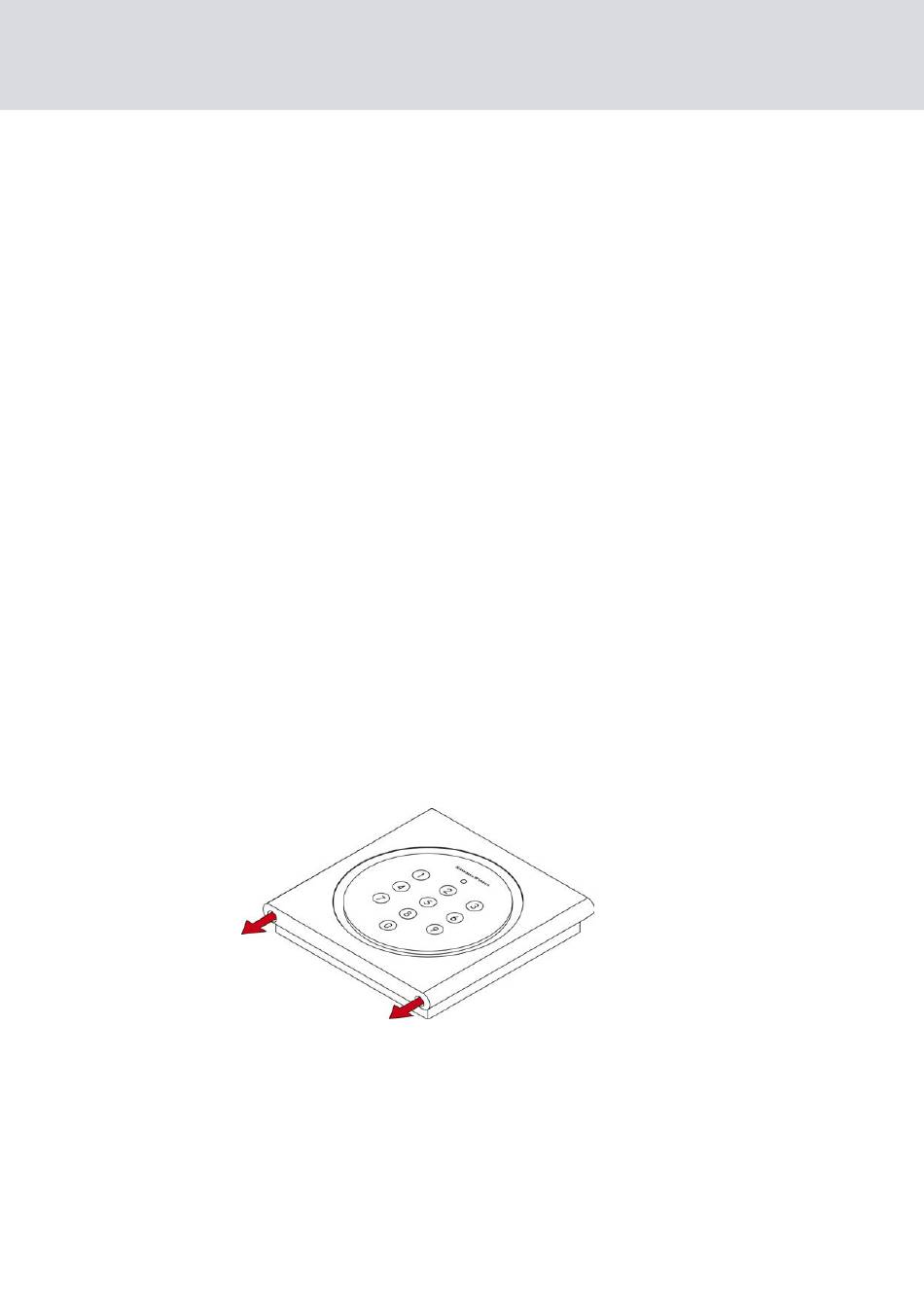

1. Undo both screws completely from the housing base.
6. Fastening
