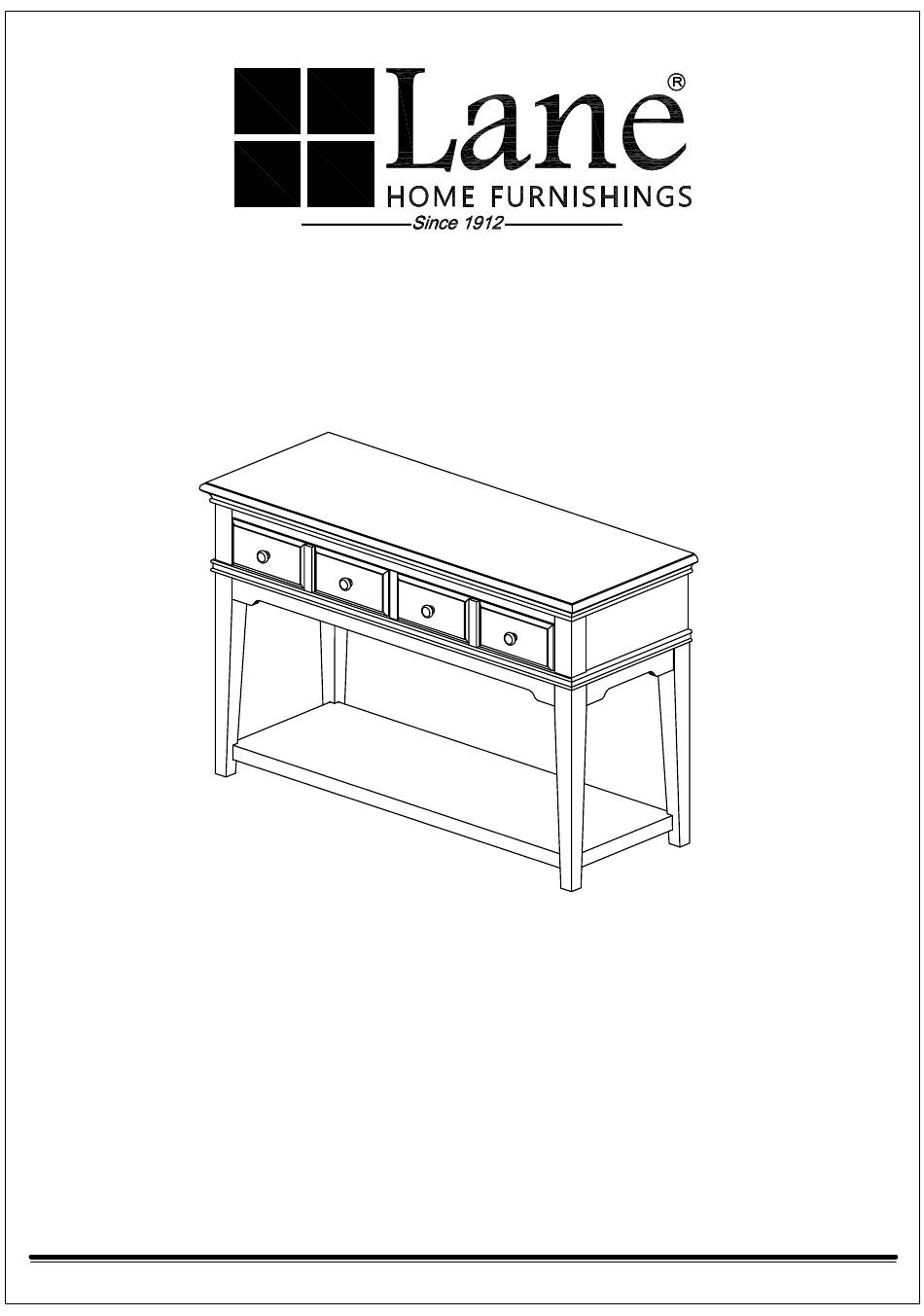

- Page 1 ASSEMBLY INSTRUCTIONS ITEM # : 70065-49-01/02 CONSOLE TABLE Page 1 of 4 MADE IN VIETNAM...
- Page 2 ITEM # 70065-49-01/02 CONSOLE TABLE TABLE PARTS & HARDWARE LIST TABLE TOP x 1 LEG x 4 PANEL SHELF x 1 SPRING WASHER x 12 ALLEN BOLT x 8 ALLEN BOLT x 4 (Ø5/16'') (Ø5/16'' *50 MM) (Ø5/16'' *75 MM)
- Page 3 ITEM # 70065-49-01/02 CONSOLE TABLE STEP 1 Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened. STEP 2 Page 3 of 4 MADE IN VIETNAM...
- Page 4 ITEM # 70065-49-01/02 CONSOLE TABLE STEP 3 TABLE ASSEMBLY COMPLETED Page 4 of 4 MADE IN VIETNAM...
