Lane 7584-43 Assembly Instructions Manual

ASSEMBLY INSTRUCTIONS
7584-43 3PK OCCASSIONAL TABLES PART LIST
PART DRAWING
A
B
C
D
United Wood Products, Inc. Customer Service Contact Information:
Toll Free Phone Number: 1-800-458-7212
Email: consumercare@ufifurniture.com
Website: www.unitedfurnitureindustries.com
PLEASE NOTE: With use, screw may become loose & must be tightened periodically.
DESCRIPTION QTY
1
TABLE TOP
LEG
1
SHORT STRETCHER
LONG STRETCHER 1

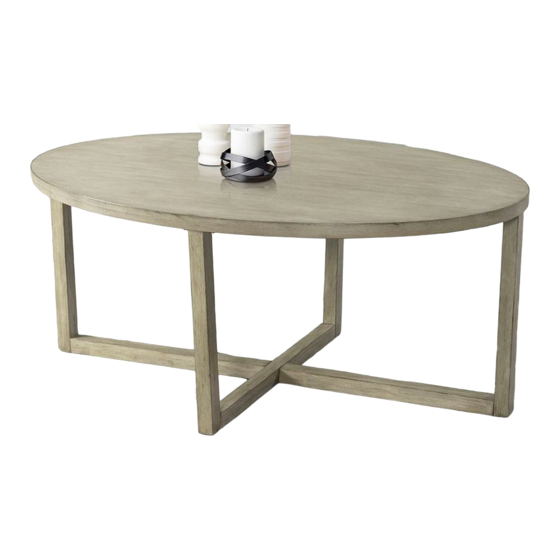

COMPLETED 3PK OCCASSIONAL TABLES
ASSEMBLY
Page 1 of 6
ITEM # 7584-43
3PK OCCASSIONAL TABLES
PART DRAWING
H1
H2
H3
4
H4
H5
H6
H7
NOTE: If needed, only part H1 - H7 are available for
replacement.
DESCRIPTION
SHORT BOLT (Ø1/4'' * 5/8'')
SPRING WASHER (Ø1/4'')
FLAT WASHER (Ø1/4'')
ALLEN KEY (M4)
SCREW (#4* 1-1/2'')
SCREW (#4* 1'')
GLUE
MADE IN VIET NAM
7584-43 3PK OCCASSIONAL TABLES
QTY
8
8
8
1
4
1
1
