ASSEMBLY INSTRUCTIONS
7593-41 POWER CHAIRSIDE TABLE PART LIST
PART
DRAWING
A
B
C
C
United Wood Products, Inc. Customer Service Contact Information:
Toll Free Phone Number: 1-800-458-7212
Email: consumercare@ufifurniture.com
Website: www.unitedfurnitureindustries.com
PLEASE NOTE: With use, screw may become loose & must be tightened periodically.
DESCRIPTION
QTY
TABLE TOP
1
BOTTOM SHELF
1
LEGS

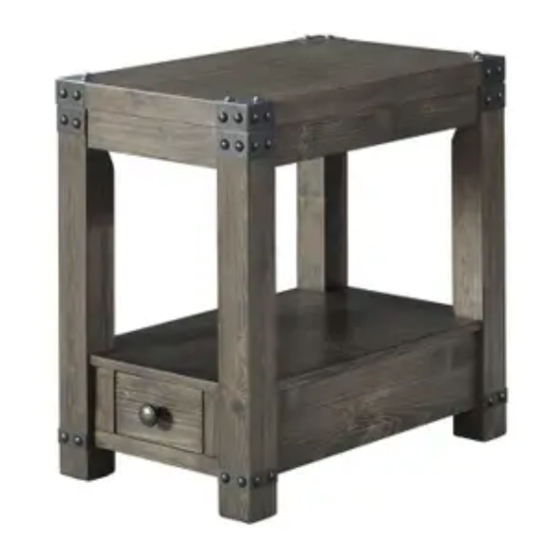

COMPLETED POWER CHAIRSIDE
TABLE ASSEMBLY
Page 1 of 3
ITEM # 7593-41
POWER CHAIRSIDE TABLE
PART
DRAWING
H1
H2
H3
H4
H5
4
NOTE: If needed, only part C and H1 - H5 are available
for replacement.
DESCRIPTION
LONG BOLT (Ø1/4'' * 2-1/4'')
SPRING WASHER (Ø1/4'')
FLAT WASHER (Ø1/4'')
ALLEN KEY (M4)
KNOB
MADE IN VIET NAM
7593-41 POWER CHAIRSIDE TABLE
QTY
12
12
12
1
1
