ASSEMBLY INSTRUCTIONS
PART LIST
PART
DRAWING
A
B
C
Customer Service Contact Information:
Toll Free Phone Number: 1-844-771-2727
Email: consumercare@lanefurniture.com
Website: www.lanefurniture.com
NOTES:
1.CHECK CAREFULLY FOR SMALL PARTS WHICH MAY COME LOOSE DURING SHIPMENT.
2.REMOVE ALL COMPONENTS FROM THE PACK AND PLACE ON A CLEAN, SOFT SURFACE TO ASSEMBLE.
3.UNITS SHOULD BE ASSEMBLED BY TWO OR MORE PEOPLE.
4.DO NOT OVER -TIGHTEN SCREW/ BOLTS UNTIL ASSEMBLY IS COMPLETED.
5.WITH USE, SCREW MAY BE COME LOOSE & MUST BE TIGHTENED PERIODICALLY.

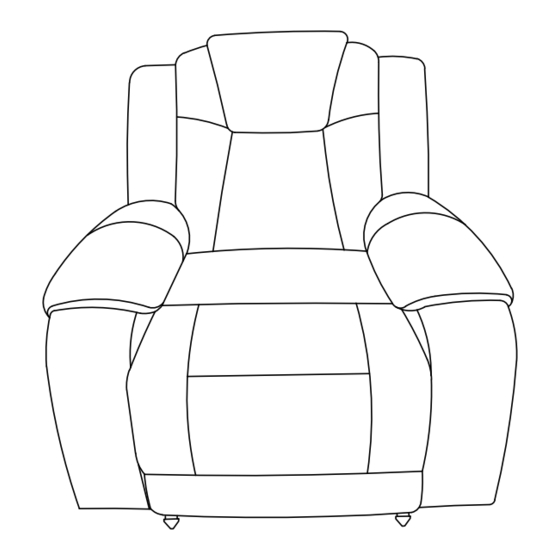

COMPLETED RECLINER -
DUAL POWER ASSEMBLY
DESCRIPTION
QTY
1
SEAT
1
BACKREST
1
LEFT WING
Page 1 of 3
ITEM # 59909-096-1X/2X/1MX
RECLINER - DUAL POWER
PART
DRAWING
D
E
F
DESCRIPTION
QTY
RIGHT WING
1
PLUG
1
TRANSFORMER
1
MADE IN VIET NAM
