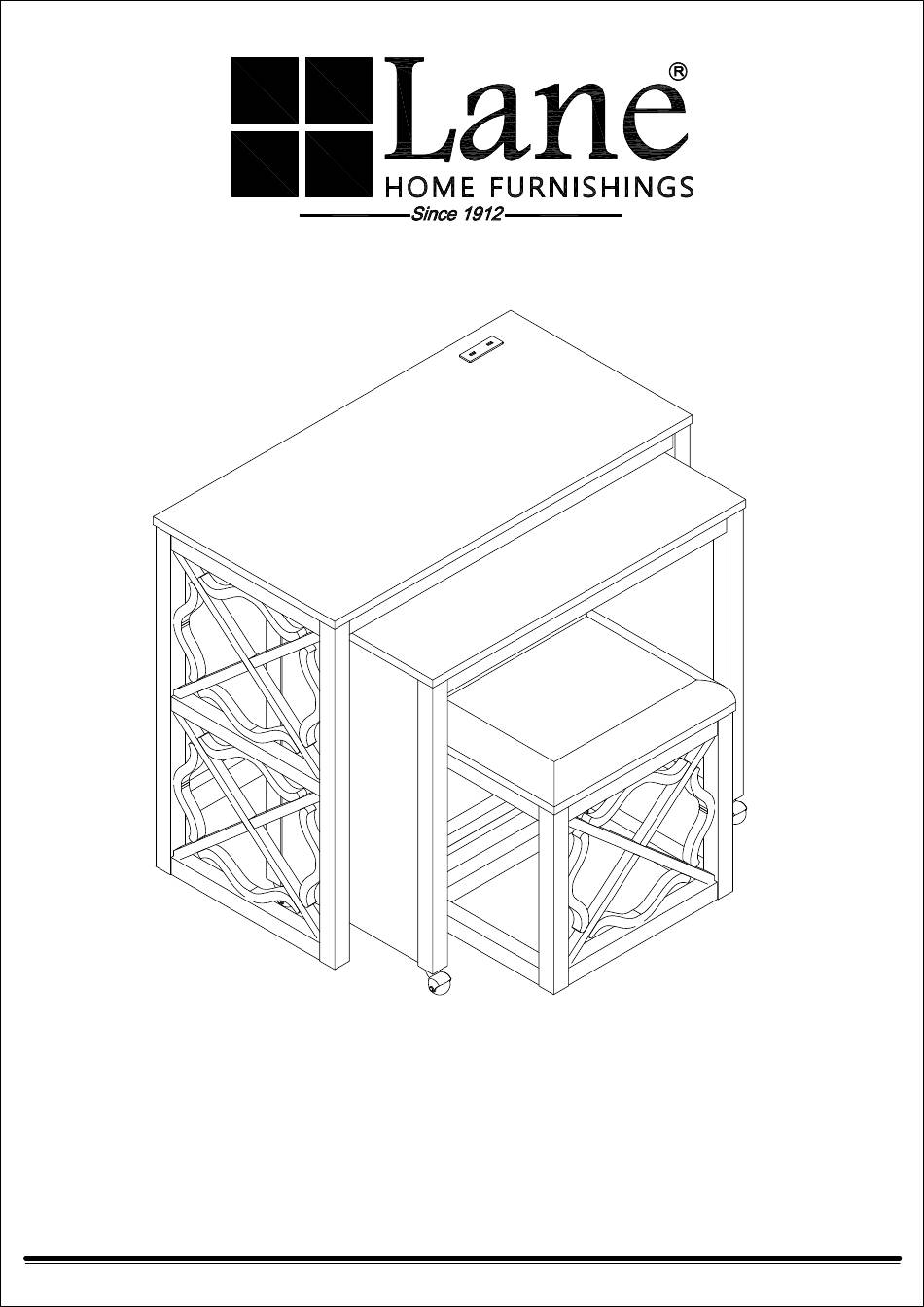

- Page 1 ASSEMBLY INSTRUCTIONS ITEM # : 30116-40 EMMA NESTING CONSOLE TABLE Page 1 of 12 MADE IN VIETNAM...
- Page 2 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE NESTING CONSOLE PARTS & HARDWARE LIST Please assemble with the tool provided or recommended. Do not use an impact drill. LSF SIDE FRAME x 1 RSF SIDE FRAME x 1 TABLE TOP x 1...
- Page 3 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE ROLLING CONSOLE PARTS & HARDWARE LIST Please assemble with the tool provided or recommended. Do not use an impact drill. RSF SIDE FRAME x 1 LSF SIDE FRAME x 1 TABLE TOP x 1 BACK SUPPORT x 1 ALLEN BOLT(Ø5/16'' *38 MM) x 6...
- Page 4 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE STOOL PARTS & HARDWARE LIST Please assemble with the tool provided or recommended. Do not use an impact drill. FRONT SIDE FRAME x 1 SEAT BOX x 1 BACK SIDE FRAME x 1...
- Page 5 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE HARDWARE BLISTER PACKS ARE STORED INSIDE THE NESTING CONSOLE Page 5 of 12 MADE IN VIETNAM...
- Page 6 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE STEP 1 ( x1) Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened STEP 2 ( x1) Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened...
- Page 7 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE NESTING CONSOLE ASSEMBLY COMPLETED Page 7 of 12 MADE IN VIETNAM...
- Page 8 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE STEP 3 ( x1) Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened STEP 4 ( x1) Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened...
- Page 9 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE ROLLING CONSOLE ASSEMBLY COMPLETED Page 9 of 12 MADE IN VIETNAM...
- Page 10 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE STEP 5 ( x1) Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened STEP 6 ( x1) Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened...
- Page 11 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE STEP 7 ( x1) Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened STEP 8 ( x1) Do not over-tighten the bolts. Make sure you use the lock washers to ensure the bolts stay fastened...
- Page 12 ITEM # 30116-40 EMMA NESTING CONSOLE TABLE STOOL ASSEMBLY COMPLETED Page 12 of 12 MADE IN VIETNAM...
