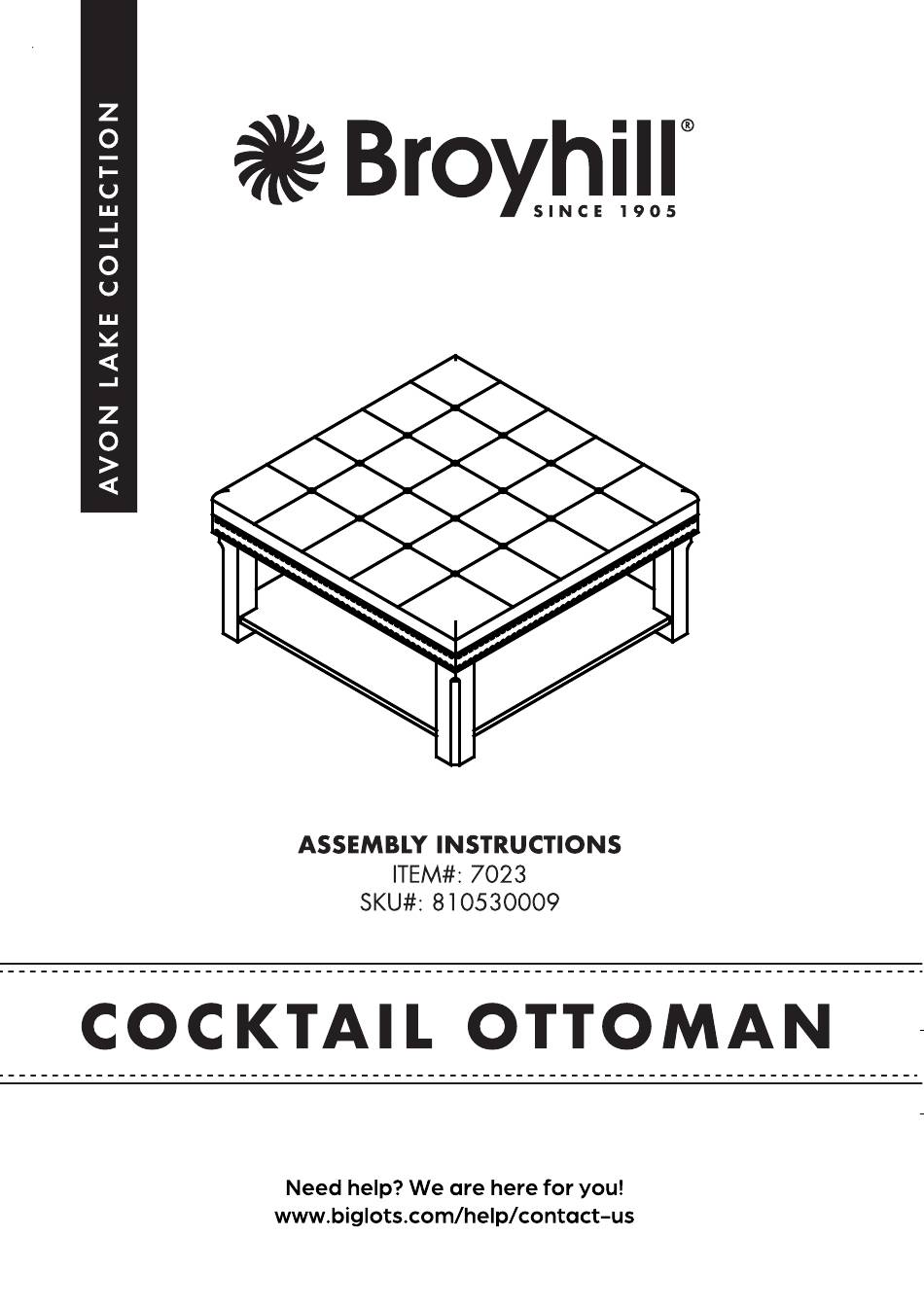

Summary of Contents for Broyhill AVON LAKE 7023
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: *Please read the assembly instructions prior to assembling this product. *Determine you have adequate space for assembly. *Assembly by two adults is recommended. *Assemble on soft surfaces to prevent damage to product finish. *Keep children away during assembly. This item contains small parts which can be swallowed by children. -
Page 3: Parts List
PARTS LIST Seat Bottom panel x 1pc x 4pcs x 1pc HARDWARE LIST Allen Bolt x 4pcs Allen Bolt x 8pcs Lock Washer x 4pcs ∅5/16” x 50mm ∅1/4” x 15mm ∅5/16” x 13mm Allen Key x 1pc Flat Washer x 4pcs ∅5/16”... - Page 4 STEP 1 HARDWARE NEEDED Lay the Bottom Panel (B) and the Legs (C) on the oor. Attach the Metal Corner (6) to the Legs (C) with Allen Bolt (2) using Allen Key (5). Attach the Legs (C) to the Bottom Panel (B) with Allen Bolt (2 ) using Allen Key (5) as shown.
- Page 5 STEP 2 HARDWARE NEEDED Open the covers under the Seat (A). Attach the Legs (C) to the Seat (A) with Allen Bolt (1), Lock Washer (3) and Flat Washer (4) using Allen Key (5). Fully tighten all Allen Bolts and close the covers. Fully tighten all Allen Bolts from Step 1 at this time.
- Page 6 ASSEMBLY IS COMPLETED PRINTED IN VIETNAM Page 5 of 5...
