GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to being Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its letter in the package Helpful hints provided along the way WARNINGS:... -
Page 3: Parts List

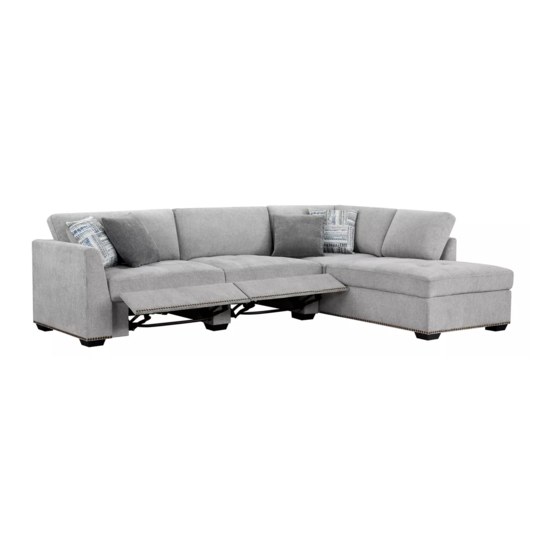

PARTS LIST chaise recliner power loveseat (The legs of the recliner power loveseat have been assembled) Back cushion Back cushion Back cushion Back cushion Back cushion Pillows Plastic legs with washers Power cord (including the five legs of the recliner power loveseat) -
Page 4: Helpful Hints
HELPFUL HINTS • Separating parts before starting Important: Open the zipper on the bottom of the chaise, then take out the legs and power cord out of the seat box. BOTTOM Important: Remove the plastic caps on the threaded bolts of each leg. - Page 5 STEP 1 Attach plastic legs with washers (J) to the bottom of the chaise (B) as shown. Close the zipper. (Warning:The legs of the recliner power loveseat (A) have been assembled). BOTTOM LEGS LEGS CORRECT BOTTOM VIEW INCORRECT BOTTOM VIEW...
- Page 6 STEP 2 There is a connection between recliner power loveseat (A) and chaise (B). Lift the recliner power loveseat (A) on the open end where hooks are located and let the downward facing hooks (a) slide into the upward facing hook slots (b) located on the chaise (B) as shown.
- Page 7 STEP 3 Attach the back cushions (C & D & E & F & G) to the back frame by zipper and clasps at the bottom of the back cushions, put pillows (H) on the recliner power loveseat (A) and chaise (B) as shown.
- Page 8 OPERATING INSTRUCTIONS One end of the power cord (I) is connected to the recliner power loveseat (A), and the other end is connected to the socket-outlet (100V-240V). When the power switch is pressed to the “—”, it means it is on (power indicator light up), and when it is pressed to the “O”, it means it is off (power indicator is off).
- Page 9 OPERATING INSTRUCTIONS While seated, to make the footrest recline, press the “open” control button on the side of seat cushion. To return the footrest to your desired position, press the “close” control button. Close Close Open Open...
-
Page 10: Assembled View
ASSEMBLED VIEW The sectional is now ready for use. PRINTED IN VIETNAM...
