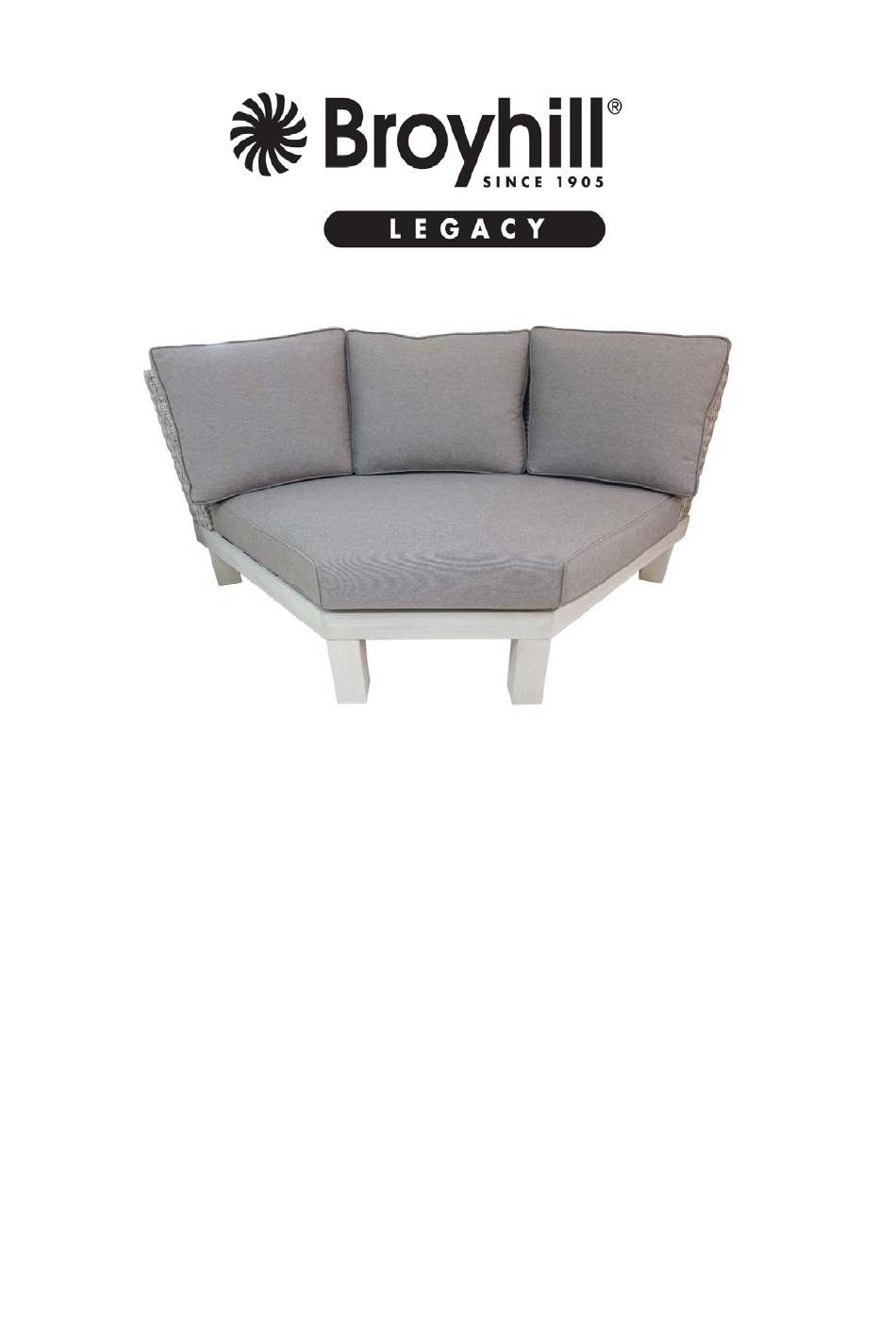

- Page 1 ASSEMBLY INSTRUCTIONS ITEM# : GBO21-602-2 SKU# : 810493302 ASHFORD ALL WEATHER WICKER ARMLESS SOFA Need help? We are here for you! 1-888-733-8169 Toll Free Or email us at customerservice_01@yeah.net,customerservice_02@yeah.net customerservice_03@yeah.net...
- Page 2 GENERAL BEST PRACTICE FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its letter in the package Helpful hints provided along the way Retain these assembly instructions for future reference.
- Page 3 PARTS LIST FOR CORNER SOFA: PARTS LIST Part No. Part Image Part No. Part Image Short Bolt Sofa Back (M6x15mm) Sofa Seat Panel Washer Back Foot Middle Back Cushion Front Foot Side Back Cushion Long Bolt Seat Cushion (M6x41mm) Middle Bolt U - shape Connection (M6x36mm) Lock...
- Page 4 PRODUCT FRAME MAP STEP 1 STEP 1 PART REQUIRED: 2, 6 & 7 Keep the bolts loose.
- Page 5 STEP 2 STEP 2 PART REQUIRED: 1, 2, 6 & 7 Keep the bolts loose. STEP 3 STEP 3 PART REQUIRED: 12, 13 & 14 Finished!
- Page 6 REMINDER REQUIRED: Sectional Set CTN#1 - Right Arm Sofa & Left Arm Sofa and CTN# 2 - Corner Sofa Two other connection locks is included in the hardware pack for sectional sofa set CTN#1 - Right and Left Arm Sofa . PLEASE FIX SOFA SEAT TOGETHER WITH PROVIDED Warranty One-year limited warrantly.
