Minitower Chassis

The minitower chassis has five expansion slots and six
storage device slots. The expansion slots include one
8-/16-bit ISA slot, one shared PCI/ISA slot, and three
16-bit PCI slots. The shared PCI/ISA slot does not support
PCI Bus Master cards.
The six storage device slots accommodate up to four
accessible devices and two internal hard disk drives. The
accessible device slots support the standard one-inch high,
3 1/2-inch diskette drive and three 1.6-inch high, 5 1/4-inch
storage devices. The internal device slots support two one-
inch high, 3 1/2-inch hard disk drives.

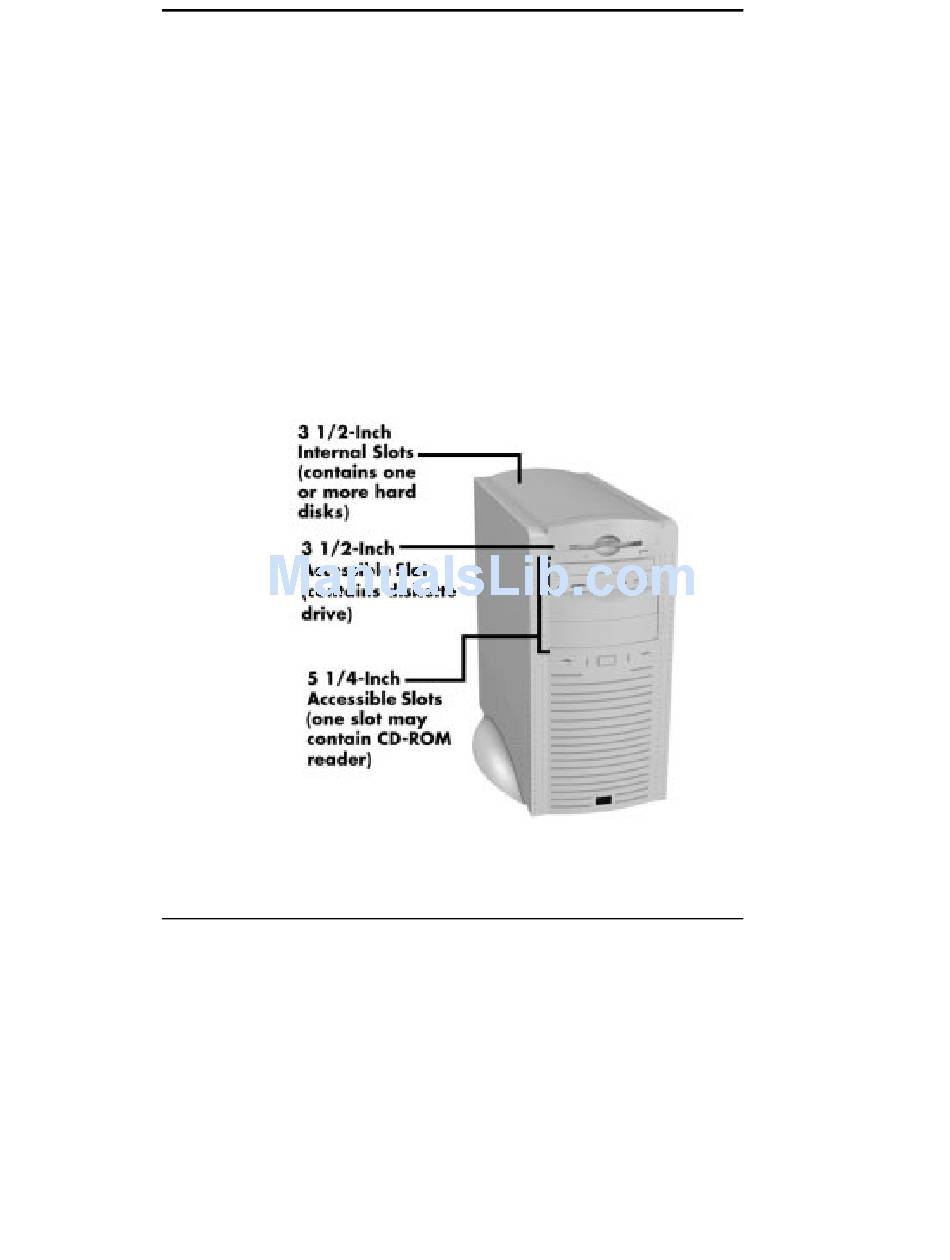

The following figure shows the locations of the storage
devices in the minitower chassis for a typical configuration.
3-4 Reviewing System Features
Minitower chassis features
