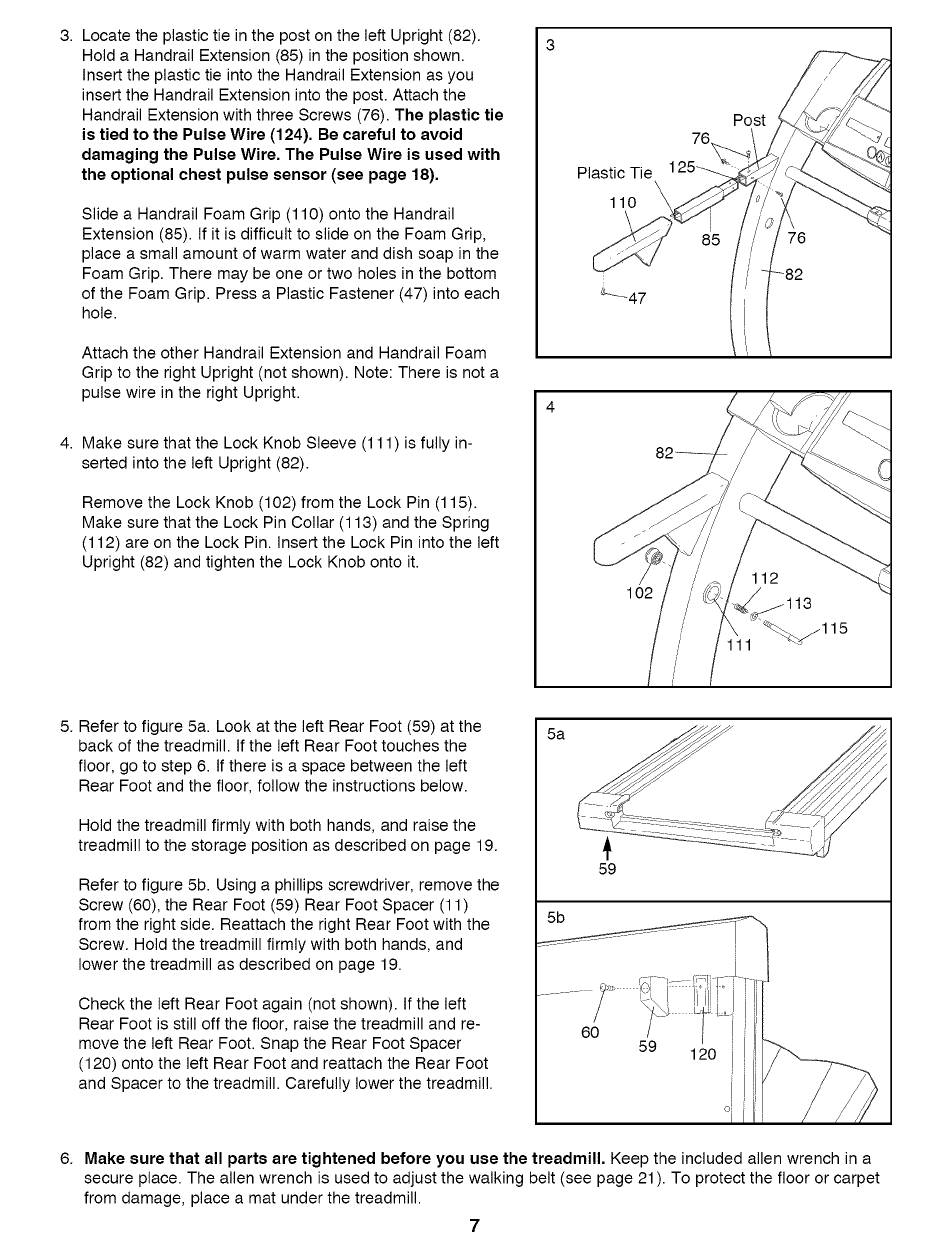

3. Locate theplastic tieinthe postontheleftUpright ( 82).
Holda Handrail Extension ( 85)intheposition shown.
Insert t heplastic tie intotheHandrail Extension a syou
insert t he Handrail Extension i ntothepost.Attach the
Handrail Extension w iththreeScrews (76). T heplastictie
is tied to the PulseWire(124), B ecareful t o avoid
damaging the PulseWire,ThePulseWireis usedwith
the optionalchestpulsesensor(seepage18),
Slidea Handrail Foam Grip(110)ontothe Handrail
Extension ( 85).If it is difficult t oslideontheFoamGrip,
placea small a mount o fwarmwateranddishsoapinthe
Foam Grip.Theremaybeoneortwoholes inthe bottom
oftheFoam Grip.Press a Plastic Fastener (47)intoeach
hole.
Attach theotherHandrail Extension a ndHandrail Foam
Griptothe rightUpright ( notshown). N ote: T hereis nota
pulsewireintherightUpright.
4. Makesurethatthe LockKnobSleeve (111)is fullyin-
sertedintotheleftUpright (82).
Remove t he LockKnob(102)fromtheLockPin(115).
Makesurethatthe LockPinCollar(113) a ndthe Spring
(112)areontheLockPin.Insert t he LockPinintotheleft
Upright ( 82)andtighten the LockKnob ontoit.
Plastic Tie 1
110
85
1O2
Post
111
5.Refertofigure5a.LookattheleftRearFoot(59)atthe
backofthetreadmill. If theleftRearFoottouches the
floor,goto step6. If thereisa space between theleft
RearFootandthefloor,follow the instructions below.
Holdthetreadmill firmlywithbothhands, a ndraisethe
treadmill tothestorage position as described o npage19.
Refertofigure5b.Using a phillips screwdriver, remove the
Screw (60), t heRearFoot(59)RearFootSpacer ( 11)
fromtherightside.Reattach t herightRearFootwiththe
Screw. H old thetreadmill firmly withbothhands, a nd
lower thetreadmill asdescribed o npage19.
Check theleftRearFootagain(notshown). I f theleft
RearFootis stilloffthefloor,raisethetreadmill andre-
movetheleftRearFoot. S naptheRearFootSpacer
(120)ontotheleftRearFootandreattach the RearFoot
andSpacer t o thetreadmill. Carefully l ower thetreadmill.
5a
5b
59
6. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 21). To protect the floor or carpet
from damage, place a mat under the treadmill.
