DEMO MANUAL DC1602A
Quick start proceDure
Demonstration circuit 1602A is easy to set up to evalu-
ate the performance of the LT3741. Refer to Figure 1 for
proper measurement equipment setup and follow the
procedure below:
1. With power off, connect the input power supply to
PV and GND. The input power supply should have a
IN
current limit of 10A or more.
2
2. With power off, connect a LED between V
3. Turn on the power at the input. Be careful not to look
4. Carefully evaluate other design parameters as needed.
5. Adjust CTRL1 to change output current.
6. To modify the demo board for other applications, please
– +
+
–

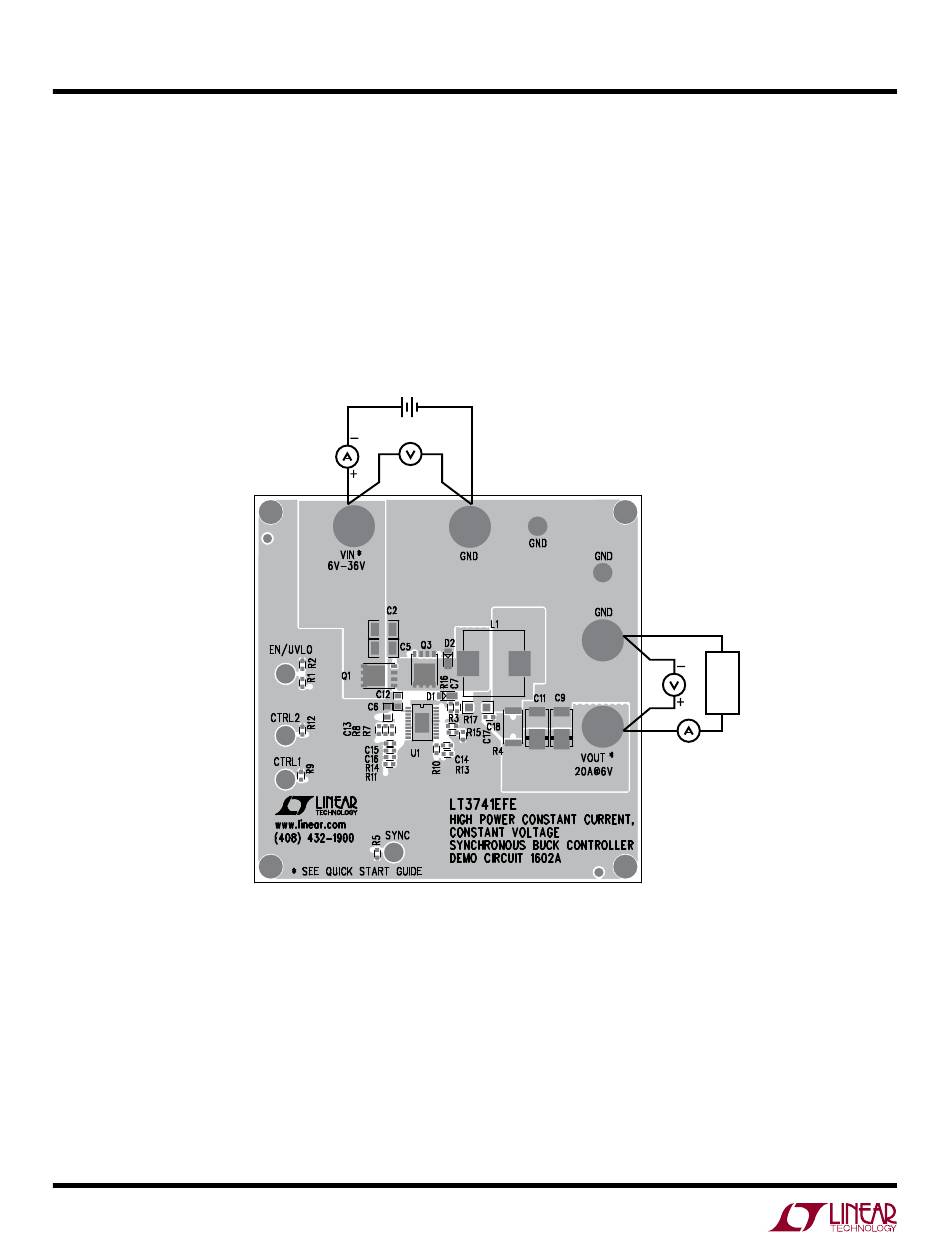

Figure 1. Proper Measurement Equipment Setup
at a powered LED directly.
contact Linear Applications Group for help.
DC1602 F01
and GND.
OUT
–
LOAD
+
