Media Technologies mt contract Derby X-Base Manual

X-Base, 4X-Base, T-Base, TT-Base, and Y-Base
Hardware Included:
#12 x 1
Pan Head Screw

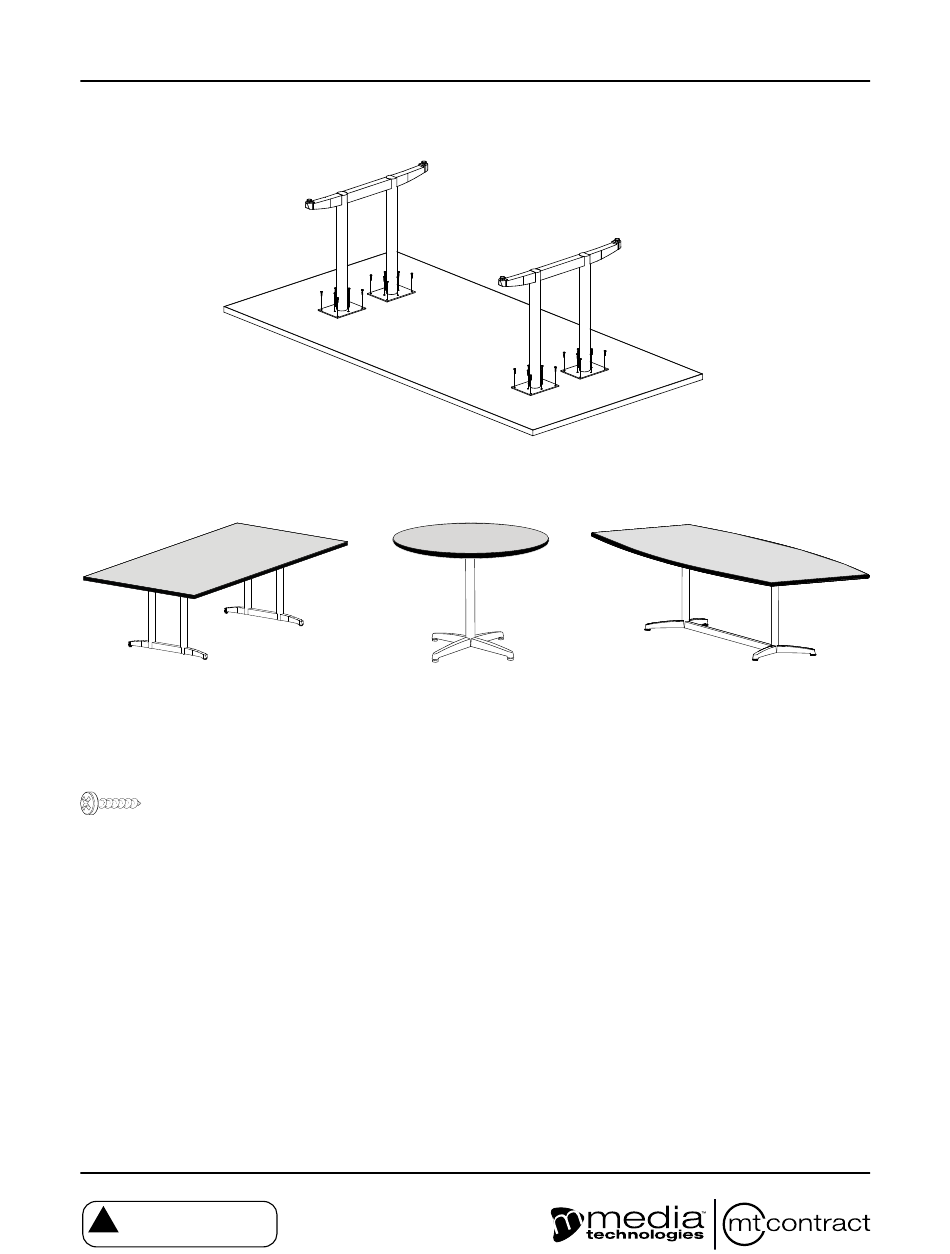

Step 1: Place the table top upside down on a clean, padded surface. See image on second page for orien-
tation of mounting plate to the castings on "Y" shape bases.
Step 2: Assemble stretcher(s) to leg columns, tighten nuts and back off 1/8 turn.
Step 3: Center leg assembly on underside of top and attach using #12 x 1" PH Screws (do not over tighten).
*Note: Should castings need to be assembled to columns refer to picture at right. Install bolt in casting as shown (reverse bolt direction if using 4" long
casting.) Holding spacer and nut in one hand and casting in another, place bolt through hole in the column, slide spacer onto bolt inside of tube as shown,
assemble nut. Tighten nut firmly using 2 9/16 wrenches.
Assemble units only as described in this
!
guide. All fasteners must be tightened
securely and checked regularly. Failure to
CAUTION
do so could cause instability and injury.
Derby
3 p c F . D P T o G W D M , P 9 : 5 2 8 1 : 2 3 2 0 6 / 3 / g , w d 9 . - 2 9 6 4 8 - C 3 4 T T D Y \ B E R \ D E S B L A T e \ a r s h o s t e l d o M 1 \ 0 k s o c B l d \ 3 g s n w i a D r I : \
Tools Required:
• #3 Phillips Head Screwdriver
• (2) 9/16 open ended wrenches.
Tables
instructions-derby- 230306
