Media Technologies mtcontract Hex Carrel Manual

Tools Required: Tools Required:
Phillips head screwdriver
6mm wrench
M6 x 1/2"
hex bolt
#12 x 1" screw
wing nut
Panel outside Panel inside
Assemble units only as described in this
!
guide. All fasteners must be tightened
securely and checked regularly. Failure to
CAUTION
do so could cause instability and injury.
Hex Carrel
Levelers

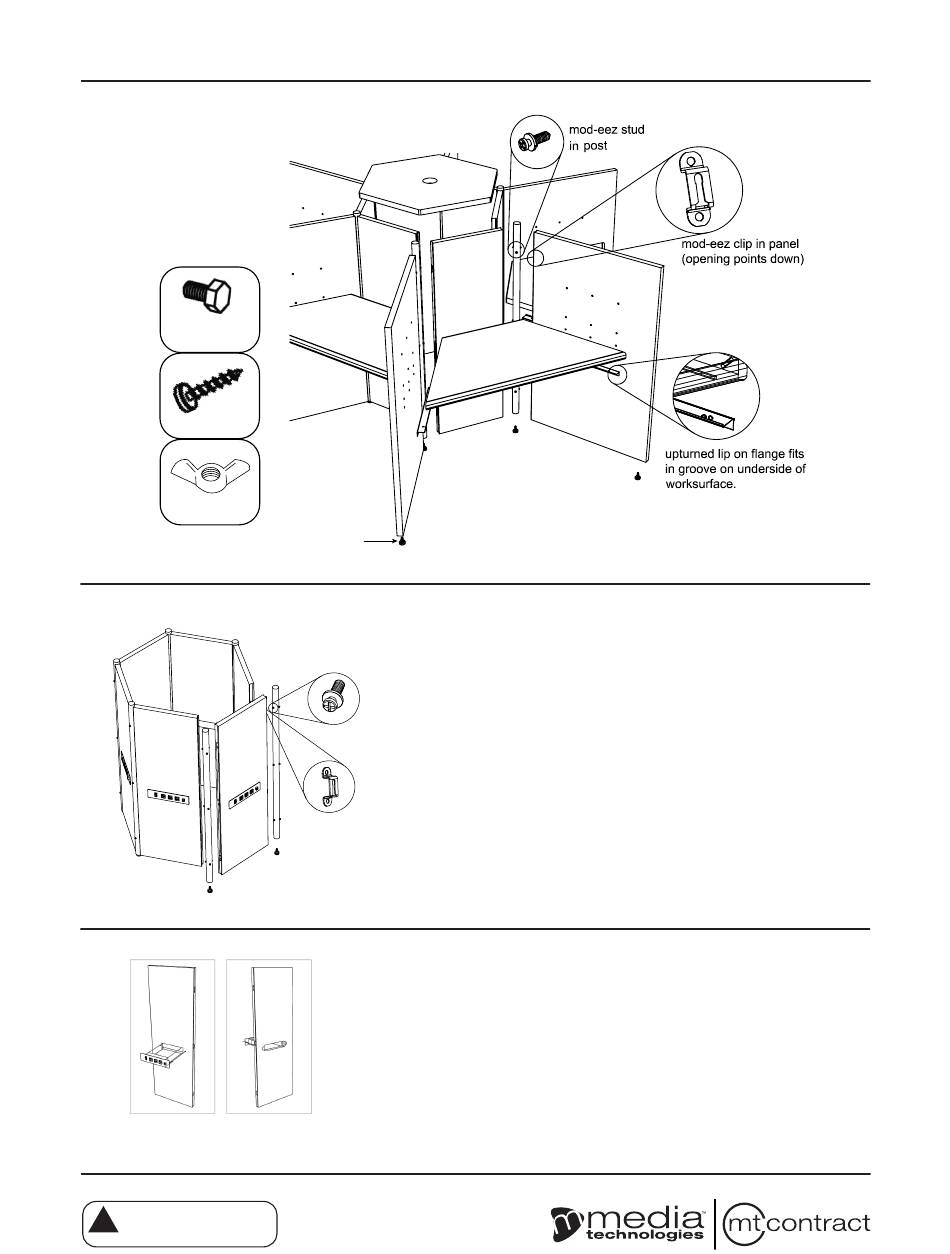

STEP 1 - Prepping Posts
Screw levelers into bottom of posts and Mod-eez
studs into pre-drilled holes in each post.
STEP2 - Assembling central hub
Mod-eez stud
Attach panels to posts. Open end of each Mod-eez
clip faces down. Slip studs on posts into clips on
panels and tap down on panel to secure.
Mod-eez clip
Attach all but the last panel and proceed to step 3.
STEP 3 - Installing power/data units
Slide power/data units into panel and secure from
the inside of each panel using wing nuts.
Attach the last panel.
•
The joint is mechanical and may be
disassembled.
•
One panel has an access panel that is
secured with two screws
Carrels
hex-carrel-instructions-230302
