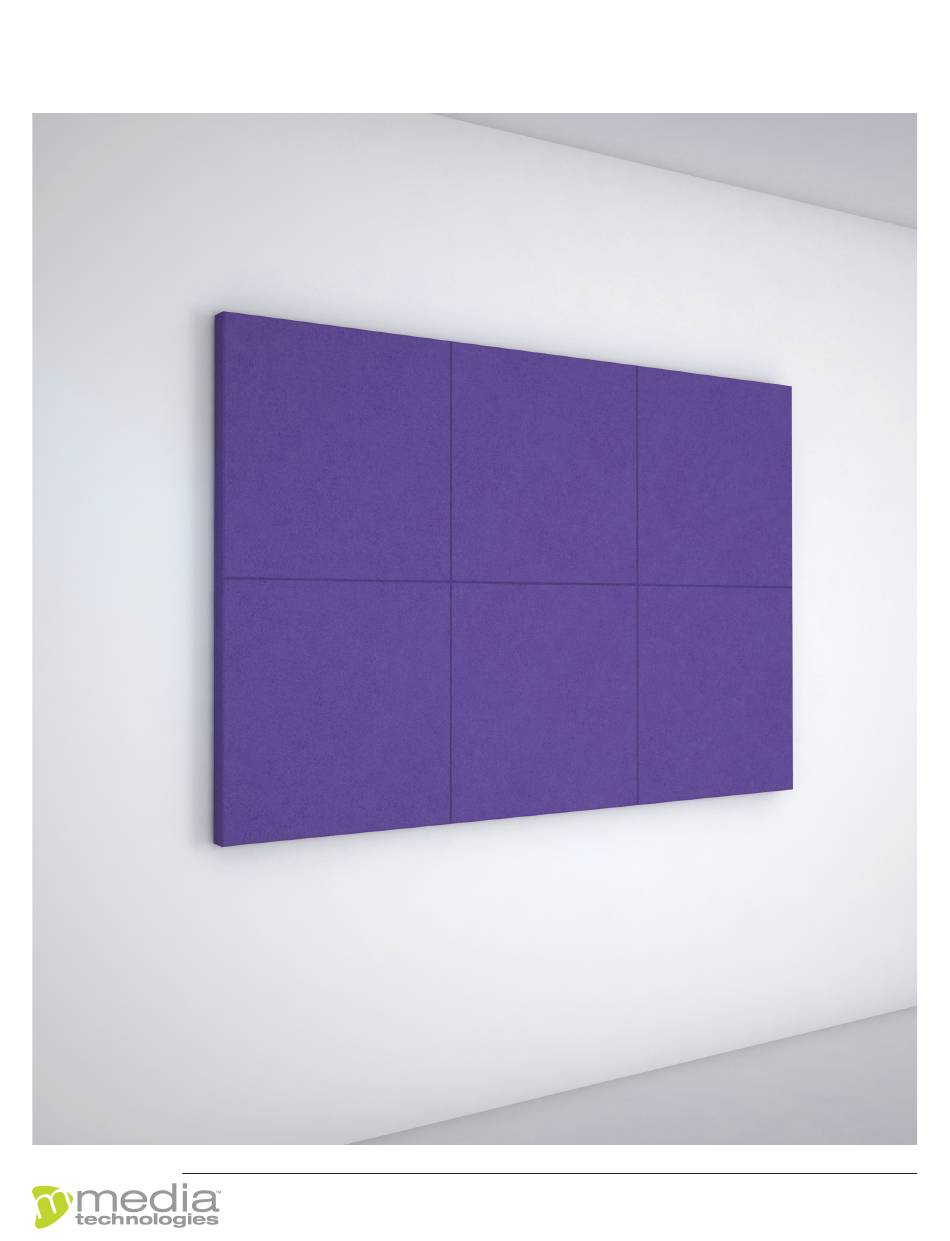

- Page 1 Sound Mosaic SimpleSpec 300.43 Installation Manual For more information, please visit mediatechnologies.com...
- Page 2 Sound Mosaic SimpleSpec 300.43 Installation Manual Table of Contents System Overview overview Available Size and Shapes Idea Starting Configurations Installation Product Description and Specifications For more information, please visit mediatechnologies.com...

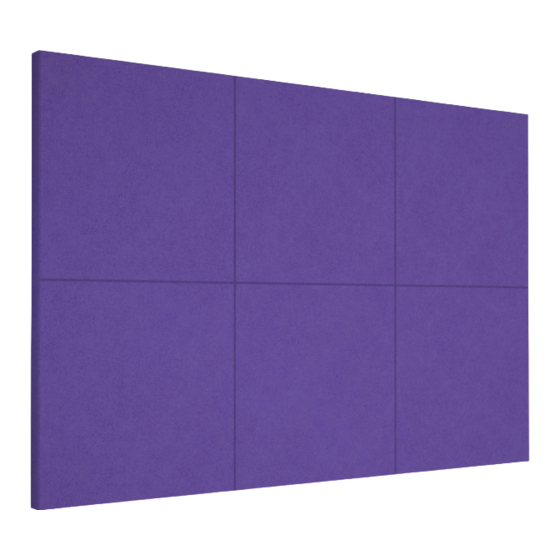

- Page 3 Sound Mosaic SimpleSpec 300.43 Installation Manual Overview Create a private space, contain sound, and build a more comfortable environment with this absorptive, wall mounted, modular tile system. Sound Mosaic is a series of lightweight tiles made from Sola Felt and boasts an NrC rating of .80.
- Page 4 Sound Mosaic SimpleSpec 300.43 Installation Manual Idea-Starting Sound Mosaic Configurations For more information, please visit mediatechnologies.com...
- Page 5 Sound Mosaic SimpleSpec 300.43 Installation Manual Installation Contents Overview 1 5/8" Drywall Screw Sound Mosaic (Number, size and shape according to configuration) 3-85-110 Required Tools Drill Laser Level Pencil PH2 Bit Preparation Determine placement of Sound Mosaic feature. mark a level bottom line on the wall.
- Page 6 Sound Mosaic SimpleSpec 300.43 Installation Manual Installation Preparation cont. . . reference this diagram as you prepare the Sound Mosaic for installation. Install starting at the bottom left corner (#1) , installing the first row of blocks, then install additional rows starting from the left side.
- Page 7 Sound Mosaic SimpleSpec 300.43 Installation Manual Installation Install First Sound Mosaic cont. . . Starting at the bottom left corner, position the block so the side without felt flaps is on the visible outside edge of the feature and the bottom of the block is even with the line drawn on the wall.
- Page 8 Sound Mosaic SimpleSpec 300.43 Installation Manual Installation Install Bottom Row of Sound Mosaics cont... Slide tabs behind first block until flush and tight. *Double verify Wall edge of Sound Mosaic is Steel plumb Tabs Sound Wall Mosaics Steel Tabs Sound...
- Page 9 Sound Mosaic SimpleSpec 300.43 Installation Manual Installation Install Bottom Row of Sound Mosaics cont... repeat the same process for additional blocks on the bottom row. For best aesthetic appearance ensure the side without felt flaps is on the visible outside edge whenever possible.
- Page 10 Sound Mosaic SimpleSpec 300.43 Installation Manual Installation Install Remaining Sound Mosaics cont... Start from the left side. Install the first block on the second row (and subsequent rows) by sliding the tabs behind first block (on bottom *Double verify row) until flush and tight.
- Page 11 Sound Mosaic SimpleSpec 300.43 Installation Manual Installation Install Remaining Sound Mosaics cont... Continuing toward the right side, install the next block. rotate all the steel tabs to the “out” *Double verify position. on the side where the steel edge of Sound Mosaic is tabs are “out”, the felt flaps should be...
- Page 12 Sound Mosaic SimpleSpec 300.43 Installation Manual Product Description and Specifications Create a private space, contain sound, and build a more comfortable environment with this absorptive, modular tile system. Sound Mosaic is a series of lightweight 24"�24" tiles made from Sola Felt and boasts an NrC rating of .80.
