Summary of Contents for Bose Professional ArenaMatch DeltaQ AM40

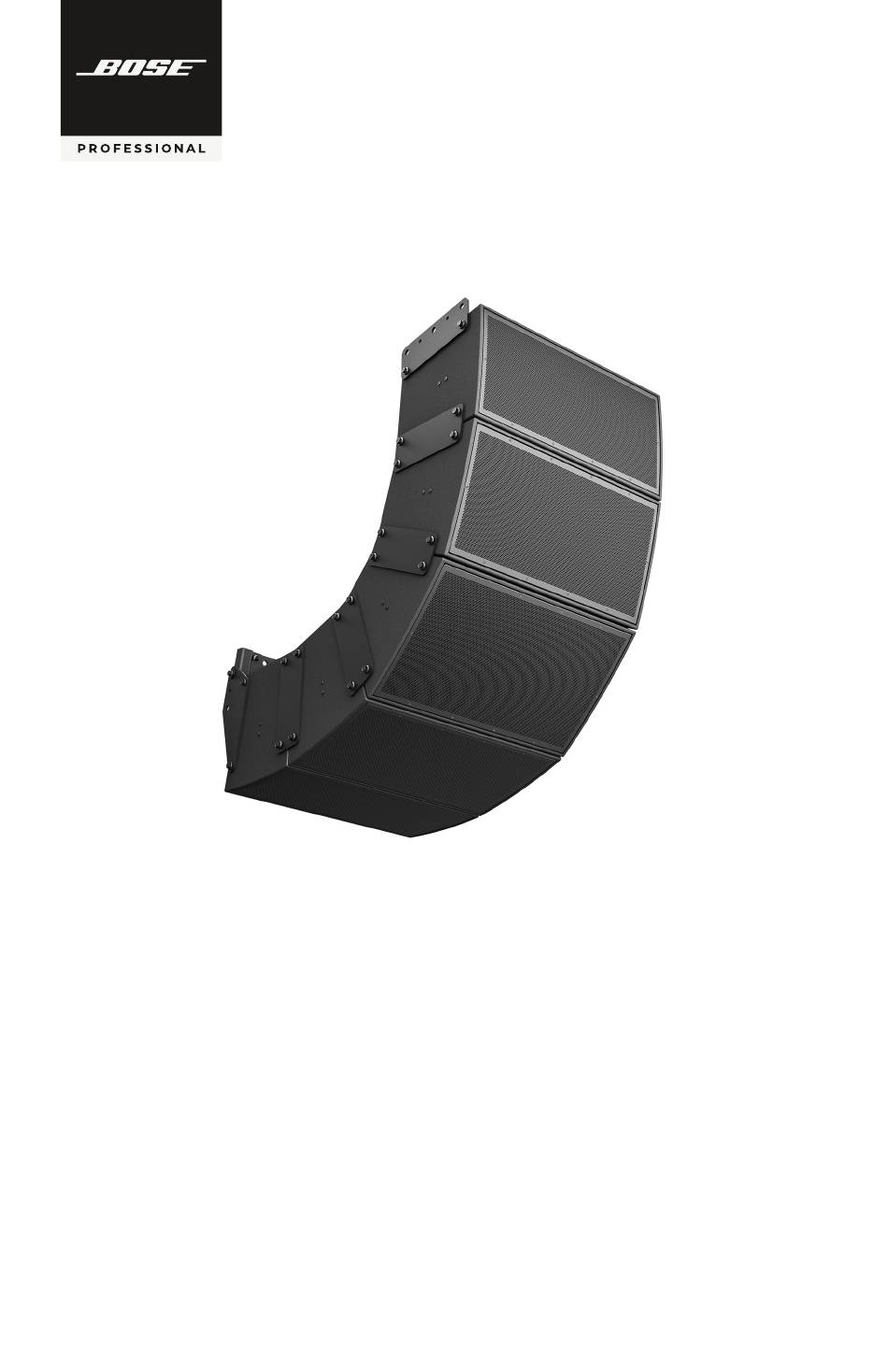

- Page 1 ArenaMatch DeltaQ Array Module Loudspeakers Array Rigging Accessories Installation Guide Guía de instalación Guide d’installation Installationsanleitung Guida all’installazione Installatiehandleiding...
-
Page 2: Important Safety Instructions
To reparaciones a centros de servicio, instaladores, técnicos o distribuidores contact Bose Professional or to find a dealer or distributor near you, visit autorizados. Para comunicarse con Bose Professional o para encontrar un BoseProfessional.com. - Page 3 WARNHINWEISE: AVERTISSEMENTS/PRÉCAUTIONS : Alle Produkte von Bose Professional müssen gemäß den örtlichen und Tous les produits Bose Professional doivent être installés dans le respect staatlichen Vorschriften sowie gemäß allen Branchenbestimmungen installiert des réglementations locales et nationales. L’installateur est responsable werden. Der Monteur ist dafür verantwortlich, sicherzustellen, dass die du respect de tous les codes et règlements locaux et nationaux en vigueur...
- Page 4 Om contact op te nemen met Bose Professional en voor o ai distributori autorizzati. Per contattare Bose Professional o per trovare il informatie over de dichtstbijzijnde dealer of distributeur, gaat u naar rivenditore o distributore più...
-
Page 5: Table Of Contents
Contents BoseProfessional.com Overview Array Plates (AMAPSHRT) (AMAPLONG) ................6 Pullback Bracket (AMPULL) ......................6 Module Connect Plate (AMMCPLAT) ..................6 Spreader Bar (AMAPSPRD) ......................6 Package Contents ........................... 7 Specifications Product Dimensions and Working Load Limits ..............8 Array Plate Short ..........................8 Array Plate Long .......................... -
Page 6: Overview
Overview BoseProfessional.com Overview Bose Professional ArenaMatch array rigging accessories are designed for use with ArenaMatch DeltaQ Array loudspeakers (AM10, AM20, and AM40) only. Array Plates (AMAPSHRT) (AMAPLONG) Use the array plates to secure the top module of an array to building structures. All accessory kits are shipped in pairs and includes all required fasteners. -
Page 7: Package Contents
Overview BoseProfessional.com Package Contents Accessory Included Hardware Class Quantity AMAPSHRT M12 screw 10.9 AMAPLONG M12 screw 10.9 AMPULL M12 screw 10.9 AMMCPLAT M12 screw 10.9 AMASPRD M12 screw 10.9 Fender washer with — plastic liner Spacer — Footnotes 30 millimeters long; with plastic washer and include pre-applied thread-locking compound. -
Page 8: Specifications
Specifications BoseProfessional.com Specifications Product Dimensions and Working Load Limits Array Plate Short Product kit net weight: 5.3 kg (11.7 lb) Top View Front View 146 mm 5.7 in 349 mm 126 mm 76 mm 13.7 in 4.9 in 3.0 in ×3 Ø... -
Page 9: Array Plate Long
Specifications BoseProfessional.com Array Plate Long Product kit net weight: 16.8 kg (37.0 lb) Top View Front View 146 mm 5.7 in Side View 42 mm 1.7 in 603 mm 23.7 in ×14 Ø 21 mm 0.8 in Single Point, 10:1 Working Load Limit WLL = 160 kg (350 lb) each side Installation Guide •... -
Page 10: Pullback Bracket
Specifications BoseProfessional.com Pullback Bracket Product kit net weight: 5.1 kg (11.3 lb) Top View Front View Side View 125 mm 4.9 in 396 mm 150 mm 15.6 in 5.9 in ×2 Ø 21 mm 0.8 in Single Point, 10:1 Working Load Limit WLL = 205 kg (450 lb) each side Note: Pullback brackets can be used on both the top and bottom of an array. -
Page 11: Module Connect Plate
Specifications BoseProfessional.com Module Connect Plate Product kit net weight: 4.4 kg (9.7 lb) Top View Front View Side View 296 mm 11.7 in 347 mm 131 mm 80 mm 13.7 in 5.2 in 3.1 in Single Point, 10:1 Working Load Limit Front and Rear Rigging WLL = 360 kg (800 lb) each side Installation Guide •... -
Page 12: Spreader Bar
Specifications BoseProfessional.com Spreader Bar Product kit net weight: 10.3 kg (22.7 lb) Top View 47 mm 1.9 in Front View 803 mm 31.6 in 306 mm 12.0 in 25 mm 256 mm 1.0 in 10.1 in 120 mm 4.7 in ×3 Ø... -
Page 13: Installation
CAUTION: To maintain weather resistance after installation, ensure all loudspeaker module inserts are sealed, all coatings remain undamaged, and all modules are installed with sufficient downward pitch. CAUTION: Use only Bose Professional ArenaMatch loudspeaker hardware, or custom suspension hardware designed and approved by qualified, professional engineering service providers. -
Page 14: Connecting Array Plates To A Loudspeaker Module
Installation BoseProfessional.com Connecting Array Plates to a Loudspeaker Module Remove the plastic plugs from the loudspeaker module on either side of the module. Line up your array plate with the open inserts on either side of the module. Note: If using a long array plate, determine which attachment holes and orientation to use based on your array design. -
Page 15: Connecting Loudspeaker Modules Using A Module Connect Plate
Installation BoseProfessional.com Connecting Loudspeaker Modules Using a Module Connect Plate Remove the plastic plugs from the loudspeaker modules on either side of the modules. Line up your module connect plate with the open inserts on either side of both modules. Using the included M12 screws and washers, secure the modules together with the module connect plate. -
Page 16: Connecting A Pullback Bracket To A Loudspeaker Module
Installation BoseProfessional.com Connecting a Pullback Bracket to a Loudspeaker Module Remove the plastic plugs from the loudspeaker module on either side of the module. Line up your pullback bracket with the open inserts on either side of the module. Note: Determine which orientation to use based on your array design. Using the included M12 screws and washers, secure the pullback bracket to the module. -
Page 17: Connecting A Spreader Bar To A Loudspeaker Module
Installation BoseProfessional.com Connecting a Spreader Bar to a Loudspeaker Module Confirm the orientation and position of the spreader bar in relation to the array plates based on your array design. Note: The center attachment point is slightly off-center to account for the module center of gravity position. - Page 20 ©2024 Transom Post OpCo LLC. All rights reserved. BoseProfessional.com AM829278 Rev. 03 February 2024 829278-0040...
