Bose Professional DesignMax DM3C Installation Manual

Bose Professional DesignMax DM3C Installation Manual

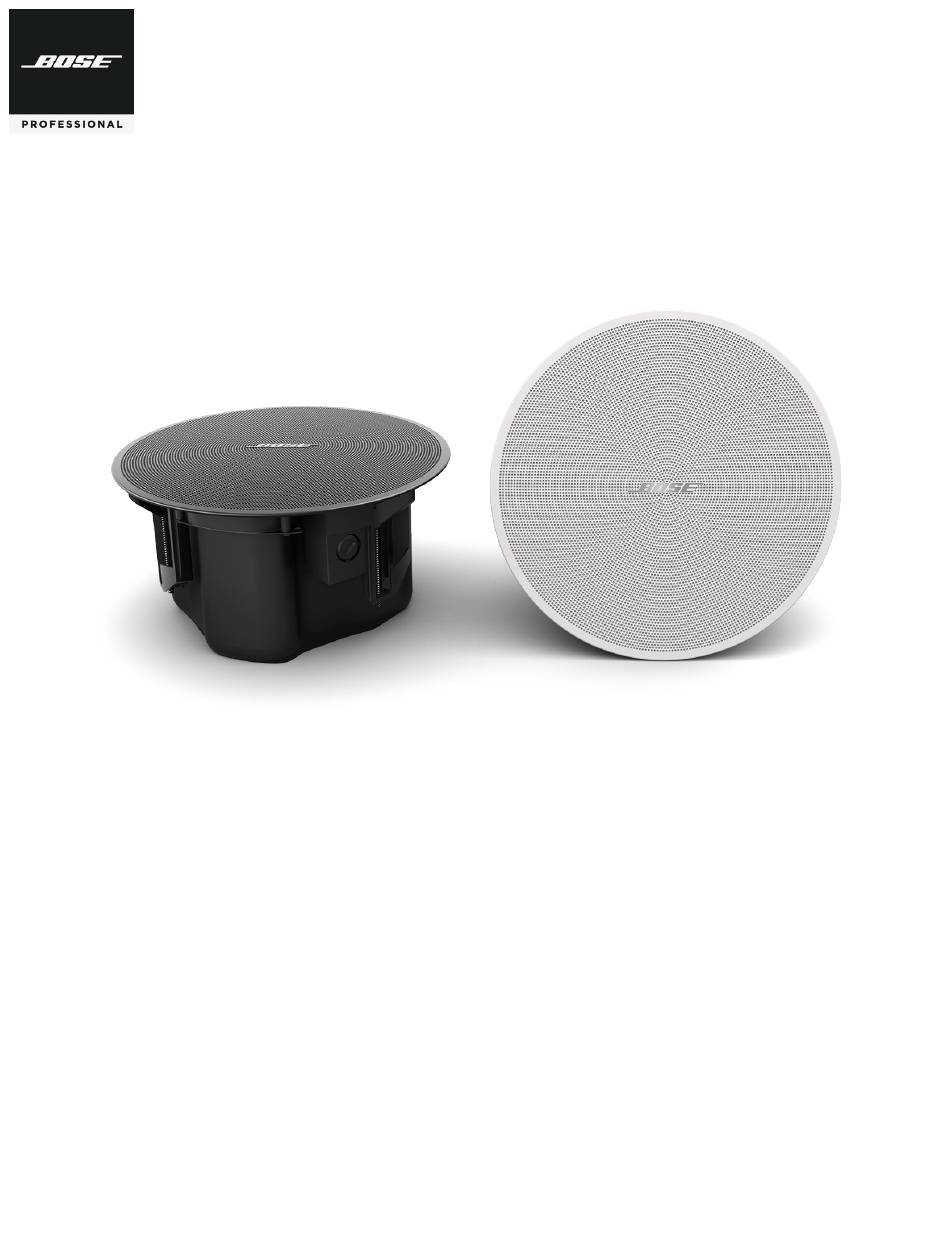

In-ceiling loudspeaker

Advertisement

Quick Links

Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2
Guía de instalación . . . . . . . . . . . . . . . . . . . . . 9
Notice d'installation . . . . . . . . . . . . . . . . . . . 16
Installationsanleitung . . . . . . . . . . . . . . . . . . 23
Guida all'installazione . . . . . . . . . . . . . . . . . . 30
Installatiehandleiding . . . . . . . . . . . . . . . . . . 37
DesignMax DM3C
In-ceiling Loudspeaker
Monteringsveiledning . . . . . . . . . . . . . . . . . . 44
Instrukcja montażu . . . . . . . . . . . . . . . . . . . . .51
安装指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
安裝指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
設置ガイド . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
79
‫دليل التركيب‬

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DesignMax DM3C and is the answer not in the manual?

Questions and answers

Summary of Contents for Bose Professional DesignMax DM3C

  • Page 1 DesignMax DM3C In-ceiling Loudspeaker Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2 Monteringsveiledning .
  • Page 2 Do not attempt to service this product yourself. Refer all servicing to authorized service centers, should be delivered to an appropriate collection facility for recycling. Proper installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or disposal and recycling helps protect natural resources, human health and the distributor near you, visit PRO.BOSE.COM.
  • Page 3: Product Dimensions

    Technical Specifications Important Installation Information This product is intended for indoor use only. For additional specifications, see the DesignMax DM3C It is the installer’s responsibility to ensure installation of the technical data sheet at PRO.BOSE.COM. loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations.
  • Page 4: Installation Options

    Use the side knockout when there is limited space above the ceiling. Both Knockouts Use both knockouts when an independent signal-in and signal-out wiring scheme is required and there is available space above the ceiling. 4 • English DesignMax DM3C • Installation Guide...
  • Page 5: Wiring The Loudspeaker

    Setup PRO.BOSE.COM Wiring the Loudspeaker Wire Gauge The DesignMax DM3C loudspeaker is designed to work with 18 AWG (0.8 mm ) to 14 AWG (2.1 mm ) size wire only. Connection Diagrams Expose six millimeters (1/4 inch) of bare wire to attach to the terminals.
  • Page 6 Installing the Tile Bridge Place the assembled tile bridge across the ceiling grid. If necessary, adjust the tile bridge so the rails rest on the ceiling grid. Replace the tile in the ceiling. 6 • English DesignMax DM3C • Installation Guide...
  • Page 7: Mounting The Loudspeaker

    Tighten the anchor arm screws to secure the loudspeaker. If using a power drill, set to a low torque setting. WARNING: Over-tightening the screws may result in damage to the anchor attachment point or the ceiling, which could lead to a falling hazard. Installation Guide • DesignMax DM3C English • 7...
  • Page 8: Attaching The Grille

    The grille secures to the loudspeaker magnetically. Safety and Regulatory Compliance The Bose DesignMax DM3C loudspeaker has passed testing and complies with the following specifications and uses: Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89 UL-2043, 2013, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.
  • Page 9 ©2019 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM837246 Rev. 01 July 2019...
  • Page 10 Product Overview DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. The 25- watt DesignMax DM3C loudspeaker features a two- way 3.25-inch woofer and ¾-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 75 Hz - 20 kHz.
  • Page 11 Adjustable Tile-Bridge, Template Optional Accessories Rough-in 6-pack PRODUCT CODES 829708-0110 DESIGNMAX DM3C PAIR BLK 829708-0210 DESIGNMAX DM3 PAIR WHT Footnotes (1) Frequency response and range measured on-axis in half-space environment with Bose EQ voicing (2) 1 kHz to 4 kHz average (3) Sensitivity measured on-axis in half-space environment with Bose EQ voicing (4) Maximum SPL calculated from sensitivity and power handling specifications, exclusive of power compression.
  • Page 12 DesignMax DM3C in-ceiling loudspeaker On-Axis Frequency Response (half-space (2π) with Bose EQ voicing) 1000 10000 20000 Frequency (Hz) Impedance 1000 10000 20000 Frequency (Hz) Beamwidth Horizontal Vertical 1000 10000 20000 Frequency (Hz) For additional specifications and application information, please visit PRO.BOSE.COM.
  • Page 13 DesignMax DM3C in-ceiling loudspeaker Dimensions For additional specifications and application information, please visit PRO.BOSE.COM. Specifications subject to change without notice. 11/2019 PRO.BOSE.COM OF 4...
