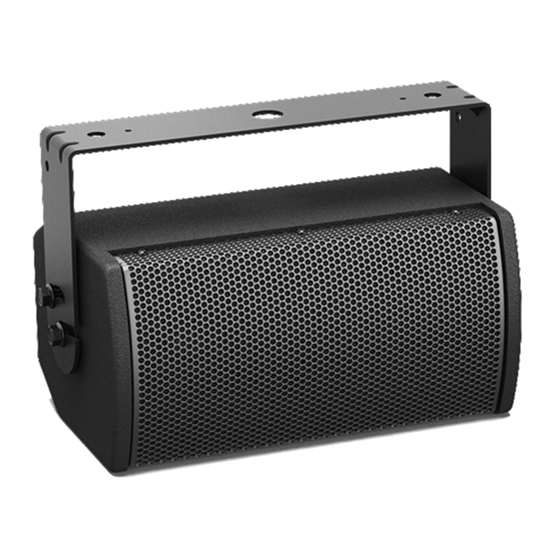

Summary of Contents for Bose Professional ArenaMatch Utility AMU105

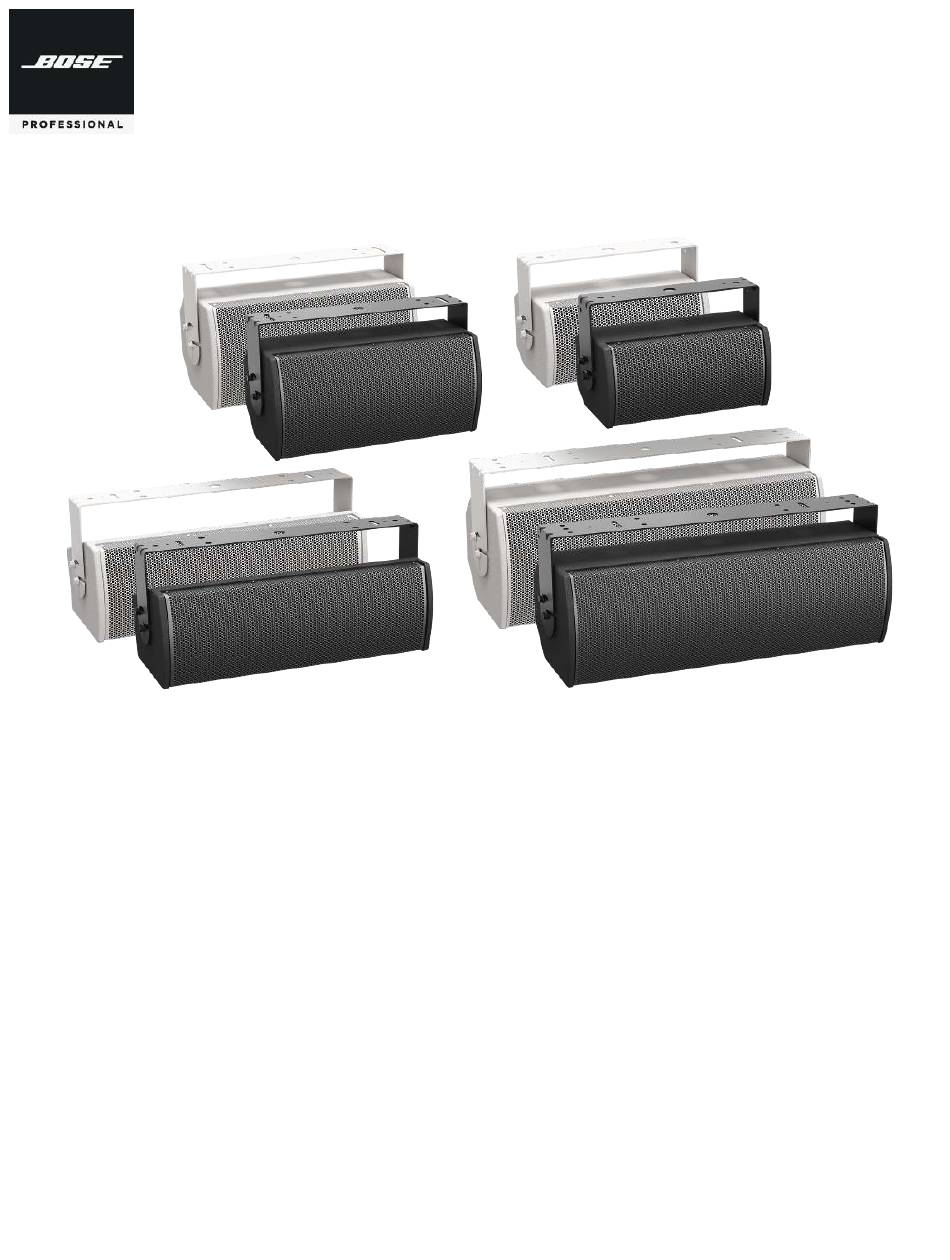

- Page 1 AMU105 AMU108 AMU208 AMU206 ArenaMatch Utility Small-format Foreground/Fill Loudspeakers AMU105 AMU108 AMU206 AMU208 Installation Guide Guía de instalación Guide d’installation Installationsanleitung Guida all’installazione Installatiehandleiding...
- Page 2 Do not attempt to service this product yourself. Refer all servicing to authorized service centers, should be delivered to an appropriate collection facility for recycling. Proper disposal installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or and recycling helps protect natural resources, human health and the environment.
-
Page 3: Table Of Contents
Package Contents .................................... 10 Optional Accessories ..................................10 Inspection & Maintenance ..................................11 Maintaining Weather Resistance ..............................11 Recommended Tools ....................................11 Product Dimensions ....................................12 ArenaMatch Utility AMU105................................12 ArenaMatch Utility AMU108 .................................13 ArenaMatch Utility AMU206 ............................... 14 ArenaMatch Utility AMU208 ................................15 Installation Input Panel ........................................16 Securing the Wiring ....................................16... -
Page 4: Overview
Adapt to a variety of configurations — all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for each transducer for more consistent frequency and polar response. Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSP. -
Page 5: Arenamatch Utility Loudspeakers
Overview PRO.BOSE.COM ArenaMatch Utility Loudspeakers AMU105 AMU108 AMU206 AMU208 Package Contents Each ArenaMatch Utility loudspeaker carton includes the following: AMU105 AMU108 AMU206 AMU208 Loudspeaker U-bracket M8 screws M4 screws Input cover Rubber washers T3 square drive Optional Accessories ArenaMatch Utility loudspeakers are compatible with the RMU pan-and-tilt bracket (WBPWR-50) and various third-party pole-mount kits. -
Page 6: Inspection & Maintenance
PRO.BOSE.COM Overview Inspection & Maintenance WARNING: The loudspeaker and all mounting components must be inspected annually by a qualified professional who is trained and certified in suspending loudspeaker systems. All rigging parts and components used in the suspension of the loudspeaker system should be visually inspected for signs of cracking, bending, water damage, corrosion, de-lamination, or any other condition that could comprise the system's integrity and create a dangerous falling hazard. -
Page 7: Product Dimensions
Overview PRO.BOSE.COM Product Dimensions ArenaMatch Utility AMU105 Product net weight: 6.5 kg (14.4 lb) / 7.5 kg (16.5 lb) with U-bracket Top View Side View 332 mm 13.1 in 190 mm 56 mm 7.5 in 2.2 in Front View Rear View... -
Page 8: Arenamatch Utility Amu108
PRO.BOSE.COM Overview ArenaMatch Utility AMU108 Product net weight: 10.6 kg (23.3 lb) / 12.6 kg (27.7 lb) with U-bracket Top View Side View 498 mm 19.6 in 262 mm 54 mm 10.3 in 2.1 in Front View Rear View No Bracket 470 mm 18.5 in 127 mm... -
Page 9: Arenamatch Utility Amu206
Overview PRO.BOSE.COM ArenaMatch Utility AMU206 Product net weight: 12.2 kg (26.8 lb) / 13.8 kg (30.5 lb) with U-bracket Top View Side View 234 mm 55 mm 580 mm 9.2 in 2.2 in 22.8 in Front View Rear View No Bracket 552 mm 21.8 in 213 mm... -
Page 10: Arenamatch Utility Amu208
PRO.BOSE.COM Overview ArenaMatch Utility AMU208 Product net weight: 17.0 kg (37.5 lb) / 19.5 kg (43.0 lb) with U-bracket Top View Side View 262 mm 54 mm 713 mm 10.3 in 2.1 in 28.1 in Front View Rear View No Bracket 686 mm 27.0 in 127 mm... -
Page 11: Installation
Installation PRO.BOSE.COM Installation Input Panel The input panel for all models are identical. They include a single screw-terminal barrier strip. Each terminal accepts a wire gauge of 10 AWG to 18 AWG. 100V 8Ω 8Ω Tap switch: Rotate to adjust tap setting. Use a flathead screwdriver. Barrier strip Securing the Wiring Feed the wiring through the gland nut on the bottom of the input panel. -
Page 12: Attaching The Input Panel Cover
PRO.BOSE.COM Installation Attaching the Input Panel Cover ArenaMatch Utility loudspeakers are shipped with the rear input panel cover not installed. Once you've made input wiring connections, secure the cover over the input panel with the included M4 screws. Loudspeaker Pitch Angles The maximum pitch angles for AMU loudspeakers when horizontally mounted with the included U-bracket are as follows: Wall-mounted Ceiling-mounted... -
Page 13: Mounting Amu Loudspeakers With The U-Bracket
Installation PRO.BOSE.COM Mounting AMU Loudspeakers with the U-bracket CAUTION: Before installation, determine the location and position of your AMU loudspeaker. Only remove the plastic inserts that are necessary for your installation. The plastic inserts are factory sealed to prevent water damage. If any insert is left unsealed after installation, the weather-resistant integrity of your loudspeaker could be compromised. -
Page 14: Rotating The High-Frequency Waveguides
PRO.BOSE.COM Installation Rotating the High-frequency Waveguides The high-frequency waveguide in the AMU108, AMU206, and AMU208 loudspeakers can be rotated to provide the desired coverage pattern for horizontal or vertical loudspeaker mounting. These loudspeakers are assembled in the factory for horizontal mounting. To rotate the waveguide for vertical mounting, do the following. -
Page 15: Recommended Amplifier Power
Installation PRO.BOSE.COM Recommended Amplifier Power Selecting the proper amplifier size for a given loudspeaker requires analysis of the transducer long-term (or RMS) power rating, dynamic range of the input-source material (crest factor), desired sound pressure levels, and other factors. As a general guideline, to optimize ArenaMatch system performance, the following amplifier configurations are recommended. -
Page 16: Technical Specifications
PRO.BOSE.COM Technical Specifications Technical Specifications AMU105 System Performance Frequency Response (±3 dB) 100 Hz to 16 kHz Frequency Range (–10 dB) 90 Hz to 16 kHz Nominal Coverage Pattern (H × V) 100° × 100° Recommended High-pass Filter 80 Hz with minimum 12-dB/octave filter Crossover Passive (2.0 kHz crossover frequency) 70V/100V transformer tap settings... -
Page 17: Amu108
Technical Specifications PRO.BOSE.COM AMU108 System Performance Frequency Response (±3 dB) 90 Hz to 16 kHz Frequency Range (–10 dB) 80 Hz to 16 kHz Nominal Coverage Pattern (H × V) 90° × 60° (rotatable high-frequency horn) Recommended High-pass Filter 80 Hz with minimum 12-dB/octave filter Crossover Passive (1.4 kHz crossover frequency) 70V/100V transformer tap settings... -
Page 18: Amu206
PRO.BOSE.COM Technical Specifications AMU206 System Performance Frequency Response (±3 dB) 90 Hz to 16 kHz Frequency Range (–10 dB) 80 Hz to 16 kHz Nominal Coverage Pattern (H × V) 120° × 60° (rotatable high-frequency horn) Recommended High-pass Filter 80 Hz with minimum 12-dB/octave filter Crossover Passive;... -
Page 19: Amu208
Technical Specifications PRO.BOSE.COM AMU208 System Performance Frequency Response (±3 dB) 80 Hz to 16 kHz Frequency Range (–10 dB) 70 Hz to 16 kHz Nominal Coverage Pattern (H × V) 90° × 60° (rotatable high-frequency horn) Recommended High-pass Filter 70 Hz with minimum 12-dB/octave filter Crossover Passive;... - Page 20 ©2018 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM830462 Rev. 00 December 2018...
