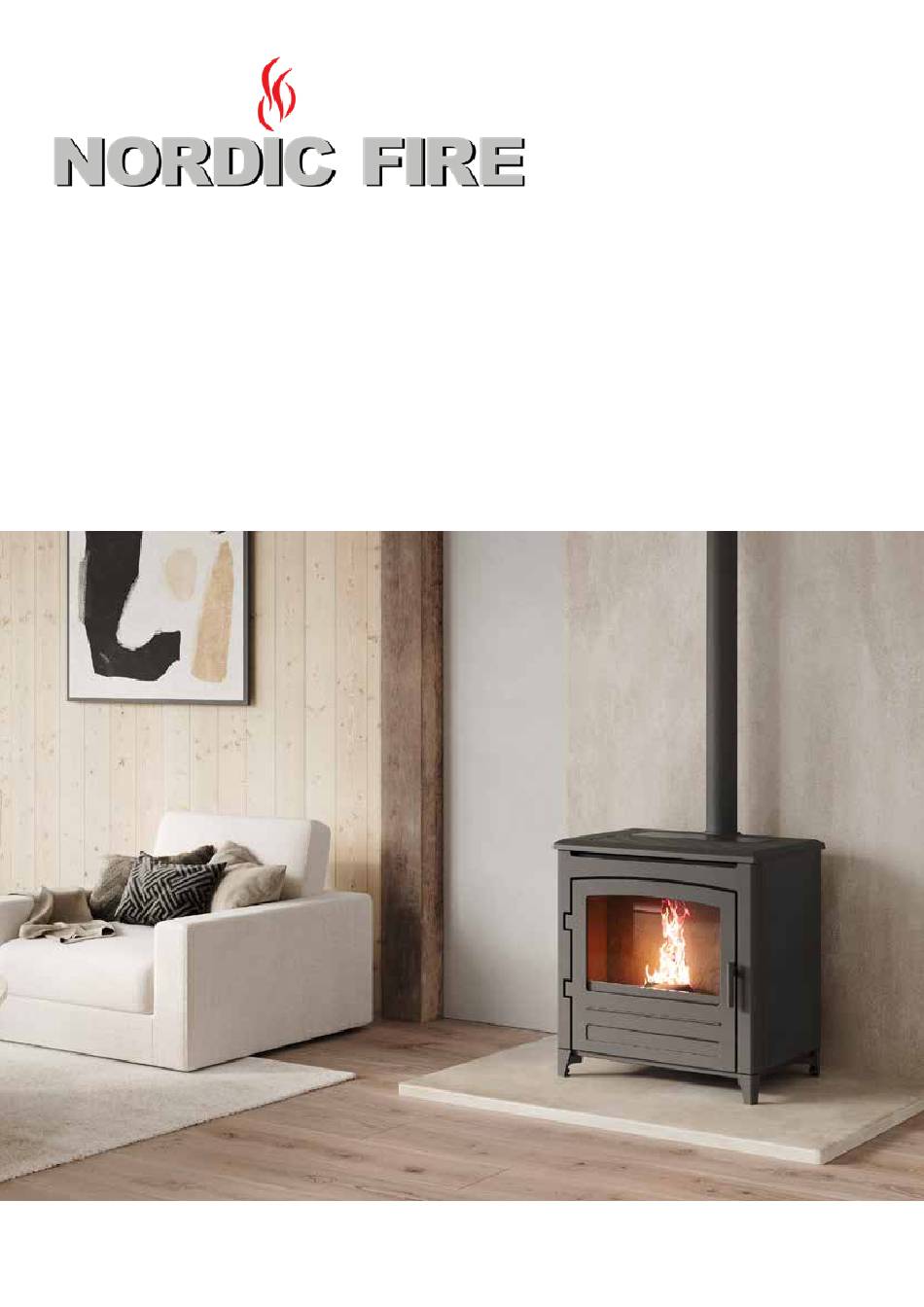

- Page 1 User and Maintenance Manual Pellet Stove ROCCO 7 - 10...
-
Page 2: Table Of Contents
CONTENT INHOUD INTRODUCTION GENERAL INFORMATION Safety regulations Incorrect use Nordic Fire warranty regulation Deviations Service & malfunction THE PELLET STOVE Purpose of the stove Construction & function Technical data Dimension drawing Data plate MONTAGE Transportation & handling Setup Fire safety... -
Page 3: Introduction
Failure to comply with these instructions will void all warranty claims and compensation claims, and Nordic Fire will be exempt from civil and criminal liability. Additionally, such non-compliance may pose risks to people and surrounding property. -
Page 4: General Information
- the use of materials other than wood in the stove. Nordic Fire warranty regulation Nordic Fire is released from civil and criminal liability in the event of: - use of the stove not in accordance with the instructions for User and Maintenance Manual;... -
Page 5: Deviations
Nordic Fire pellet stove warranty. Thanks to the high quality, we can give no less than 5 years warranty on the Nordic Fire stove. The purchase date must be evidenced by a copy of the purchase receipt. Should a defect occur within the guarantee period, at the basis of the stove itself, which is the result of... -
Page 6: Service & Malfunction
Service & malfunction Despite all the care taken in the production of Nordic Fire fireplaces, it may happen that something is not in order. In that case, contact your dealer or installer. In most cases your dealer or installer will solve the problem immediately. -
Page 7: Technical Data
Technical data Rocco 7 Rocco 10 Nominal adjustable power 2,8 - 7 kW 2,8 - 10 kW Pellet fuel consumption 0,8 - 1,9 kg/h 0,8 - 2,2 kg/h Efficiency Burn time 8,5 – 20 h 13,3 – 18 uur Flue outlet... -
Page 9: Dimension Drawing
Dimension drawing Rocco Data plate The data plate is located on the back of the stove and provides accurate identification of your model with a series of technical data and a serial number. -
Page 10: Montage
Damage to the glass or vermiculite/chammoth after commissioning is almost always caused by overloading or incorrect operation. In this case, a warranty claim is not possible. Installation is only permitted by a Nordic Fire-accredited installer. Self-installation or installation by an unqualified technician is strictly prohibited! Important Usage Notes: 1. - Page 11 - No combustible or heat-sensitive objects or building materials should be located within a distance of at least 80 cm in front of the stove door or within its direct range. This distance can be reduced to 40 cm if a double-sided ventilated and heat-resistant protective barrier is installed to shield the entire area.
-
Page 12: The Chimney
Connection to the flue pipe The connection to the chimney must be performed and inspected by a Nordic Fire dealer. The Nordic Fire dealer will ensure that the flue system and chimney are safe and comply with applicable regulations. -
Page 13: Elektrical Connection
It should also be verified that the air supply required for combustion is sufficient. Important Considerations for Connecting the Chimney - The chimney must be inspected by a Nordic Fire installer for leaks and the overall condition of the chimney before use. -
Page 14: Pellets As Fuel
- Max. moisture content 8-9% Low-quality pellets, in addition to not guaranteeing the maximum efficiency of the product, require more frequent maintenance. Therefore, Nordic Fire recommends using certified fuel. The performance of your stove strongly depends on the quality of the pellets. -
Page 15: Stoking The Stove
STOKING THE STOVE Initial Configuration & Usage To establish the correct connection between the radio remote control and the stove, a channel (frequency) must be selected. 1) Turn off the stove using the switch at the back. 2) Insert the batteries into the remote control. If they are already inserted, remove them and reinsert them. 3) A code will appear for a few seconds. -
Page 16: Starting The Pellet Stove
Starting the Pellet Stove If you press and hold the ON/OFF BUTTON on the remote control or (button 1) on the control panel, you can turn on the device. The ignition cycle can last a maximum of 20/25 minutes and is divided into five phases: FASE TEKST DISPLAY BETEKENIS... -
Page 17: Environmental & Adverse Climatic And Transitional Conditions
Environmental & adverse climatic and transitional conditions During transitional periods or in adverse weather conditions (e.g., fog, humid rainy days, strong gusts of wind, and when the outdoor temperature is above +15°C), chimney draft can be impaired, causing the smoke to not be fully vented. Heating capacity The actual power of the stove is largely determined by the amount of wood being burned. -
Page 18: Remote Control And Emergency Display
REMOTE CONTROL AND EMERGENCY DISPLAY Remote Control The remote control must be equipped with three 1.5V AAA batteries; DISPLAY SCREEN ESCAPE UP ARROW BUTTON BUTTON DOWN ARROW SETTING BUTTON BUTTON ON/OFF BUTTON ON/OFF BUTTON MODE FUNCTION When the screen is off Turn on the display When the status is OFF Turn on the product by holding the... -
Page 19: Emergency Display
UP ARROW MODE FUNCTION BUTTON When you see the main screen Allows you to change the temperature, then press Set When you are in a menu Allows you to select the submenu that interests you When you are in the parameter Allows you to place the parameter in the programming status desired position... -
Page 20: Remote Control Display
With the control panel, you can manage the basic functions of the device's operation when no remote control is available. You can perform the following actions: Turn On/Off: Press and hold button 1 (On/Off) for 2 seconds. Change Output: Every time you press button 2 (Power), you can change the operating power by selecting one of the three available power levels (1, 3, or 5). -
Page 21: Menu
Menu By using the UP and DOWN ARROW BUTTONS, you select the menu you want to modify. Press the SETTING BUTTON to enter the menu you want to modify and save the changes you've made. Press the ESCAPE BUTTON to go back to the previous menu level and save any changes you've made. In the menu that needs to be modified, you can use the UP and DOWN ARROW BUTTONS to change the set value within the selected menu. -
Page 22: Week Timer
Submenu – Daily Chrono DAY TIMER To activate, deactivate, and set the functions of the daily timer. The daily timer has two time slots, defined by the set times, according to the following schedule (it is not necessary to use them all at once): Time of activation start OFF tells the clock to ignore the command... - Page 23 After setting the time for turning on and off, as well as the power and temperature sets, you must select the days on which you want to activate the time slot. Below is an image of the screen where you need to activate the days: Field for reading the enabled days If the circle is full, the day is active.
-
Page 24: Buzzer Mode
Using the UP and DOWN ARROW BUTTONS, you can change the selected value. With the SETTING BUTTON, you select the next value. With the ESCAPE BUTTON, you select the previous value. By pressing the ON/OFF BUTTON, you return to the previous menu level. Menu 04 –... -
Page 25: Display Settings
3% * Access by untrained users can cause serious damage to the equipment, people, objects, and the environment. NORDIC FIRE is not liable for incorrect adjustment of these values. Menu 11 – Attiva relax (ROCCO 10) This allows you to decrease the speed of the front air fan for a preset time. -
Page 26: Set Output
1 and 5 Set Speed Convector Fan (ROCCO 7) - To change the fan speed, select “SET FAN” by pressing the ESCAPE BUTTON. - Press the DOWN ARROW BUTTON to change the fan speed value, then confirm by pressing the SETTING BUTTON or ESCAPE BUTTON;... -
Page 27: Measures In Case Of Fire In The Chimney
After a prolonged period of non-operation, it is necessary to check the permeability of the flue gas duct. The outer surfaces of the stove become very hot during operation, so always wear protective gloves when handling the stove. Also, be mindful of small children if they are in the room where the stove is installed. -
Page 28: Cleaning And Maintenance
CLEANING AND MAINTENANCE Before performing any maintenance task, ensure that the stove is disconnected from the power supply and that you have read this manual. The stove's surfaces should only be cleaned when the stove is cold. It is recommended to use a dry cloth for cleaning. Follow these guidelines for safe and trouble-free operation of the stove: - Perform periodic maintenance tasks on time: have the stove inspected by a specialized maintenance company at least once a year.;... -
Page 29: Cleaning The Glass Window
Cleaning the glass window The Nordic Fire pellet stove is designed in such a way that the secondary air supply helps to keep the glass clean. The high temperature and this airflow burn off as much dirt as possible. With the right fuel and sufficient chimney draft, the glass will remain largely clean. -
Page 30: Emptying The Combustion Chamber
Deposits in the combustion chamber As soon as deposits form in the burner tray, it is necessary to clean it before starting the stove each day. This will ensure that the holes in the burner tray are open. You will notice from the combustion that the stove is not clean. The fire will burn "slower"... -
Page 31: Special Maintenance
Ash behind the deflector plate At the top of the stove, there is a baffle plate. Over time, ash will accumulate here. The deflector plate should be removed every 2 months to clear away the ashes. After cleaning, the baffle plate should be reinstalled in exactly the same way. - Page 32 Each alarm condition results in the immediate shutdown of the device. The alarm state is triggered after the time set in Pr11 and can be reset by pressing and holding the ON/OFF BUTTON. In case of malfunction, please contact an authorized technical assistance center or Nordic Fire dealer.
- Page 36 User and Maintenance Manual Pellet Stove ROCCO 7 - 10 www.nordicfire.eu...
