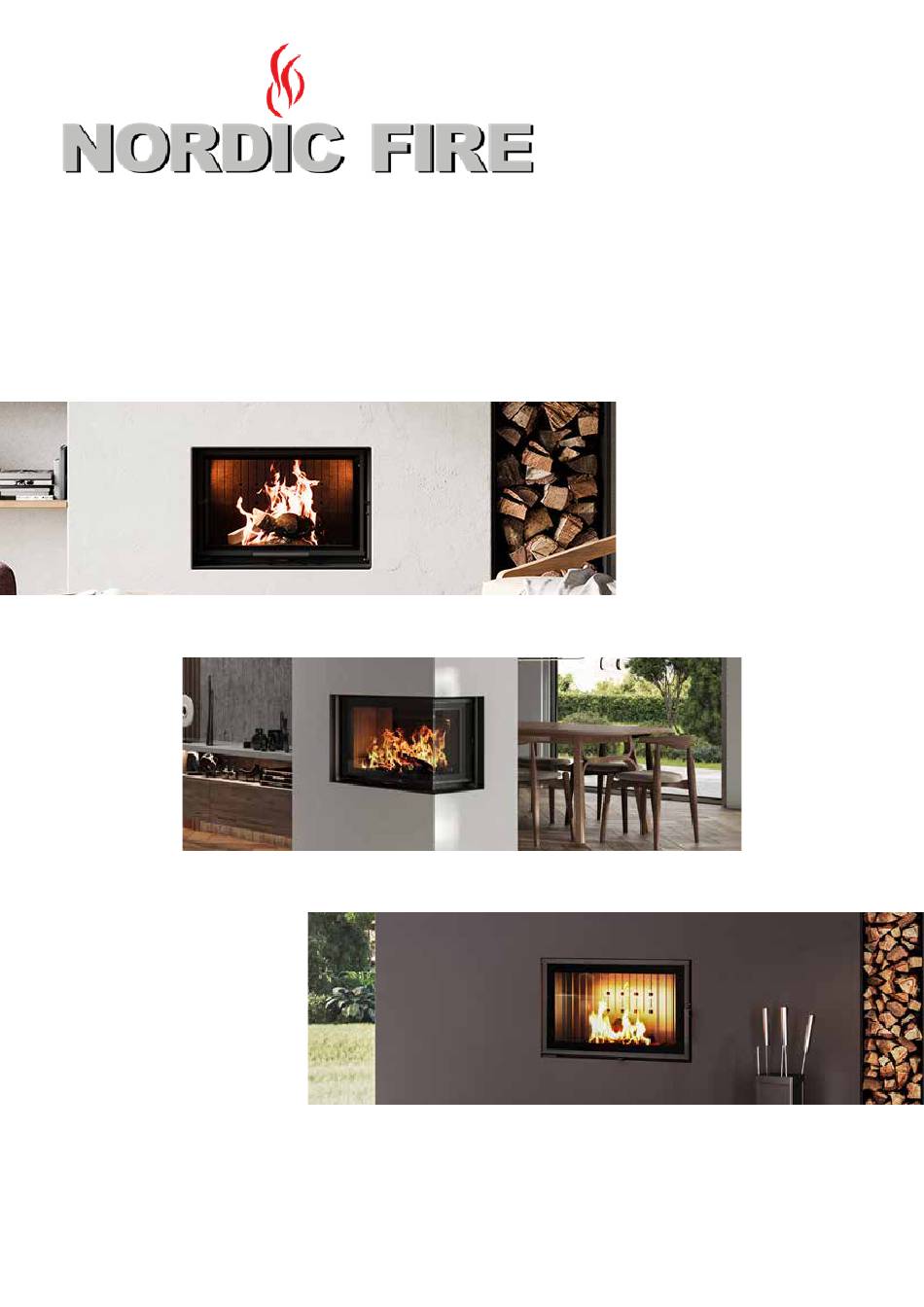

- Page 1 Instruction manual Wood built-in stoves SUPERIOR-ELITE-PRESTIGE...
-
Page 2: Table Of Contents
CONTENT INHOUD INTRODUCTION GENERAL INFORMATION Safety regulations Incorrect use Nordic Fire warranty regulation Deviations Service & malfunction THE WOOD BUILT-IN STOVES Purpose of the stove Construction & function Technical data Dimension drawing Data plate MONTAGE Transportation & handling Setup Fire safety... -
Page 3: Introduction
INTRODUCTION Dear customer Team Nordic Fire is delighted that you have chosen a stove from us and wish you much stoking enjoyment and warmth. This manual is designed to help you use and maintain the unit effectively, and to ensure that you get the most out of your wood stove. -
Page 4: General Information
- the use of materials other than wood in the stove. Nordic Fire warranty regulation Nordic Fire is released from civil and criminal liability in the event of: - use of the stove not in accordance with the Instructions for Use and the Installation Manual;... -
Page 5: Deviations
Nordic Fire wood stove warranty. Thanks to the high quality, we can give no less than 5 years warranty on the Nordic Fire stove. The purchase date must be evidenced by a copy of the purchase receipt. Should a defect occur within the guarantee period, at the basis of the stove itself, which is the result of... -
Page 6: Service & Malfunction
Service & malfunction Despite all the care taken in the production of Nordic Fire fireplaces, it may happen that something is not in order. In that case, contact your dealer or installer. In most cases your dealer or installer will solve the problem immediately. - Page 7 Functioning The air valve is controlled by a lever under the front panel [See page 19]. The air valve is controlled by turning the lever to the right or left. When the lever is in the rightmost position, the air supply is cut off.
-
Page 8: Technical Data
Technical data Superior Nominal capacity 13,2 kW Capacity range 6,9 - 14,6 kW Efficiency 79 % Maximum area to be heated 330 m³ Dimension 1313 x 972 x 441 mm Flue outlet boven Flue outlet diameter Ø 150 mm External air supply Ø... - Page 9 Elite Nominal capacity 13,2 kW Capacity range 6,9 - 15,7 kg/h Efficiency 79 % Maximum area to be heated 330 m³ Dimension 1313 x 904 x 514 mm Flue outlet boven Flue outlet diameter Ø 150 mm External air supply Ø...
-
Page 10: Dimension Drawing
Dimension drawing Superior Prestige... -
Page 11: Data Plate
Elite L Elite R Data plate The data plate is located on the back of the stove and provides accurate identification of your model with a series of technical data and a serial number. -
Page 12: Montage
The exact requirements will be indicated by your installer or Nordic Fire dealer. - Nordic Fire built-in fireplaces are provided with a top connection. A rear connection is not possible. - The flue materials must maintain sufficient distance from combustible materials. The distances indicated on the rating plate and in this manual must be maintained. -
Page 13: Fire Safety
- the casing of the built-in fireplace must have a vent for cold air (at the bottom of the casing) and a vent for hot air; Fire safety The inspection with distances to combustible materials was performed with an insulated flue. With uninsulated materials, it is wise to keep a greater distance. -
Page 14: The Chimney
Connection to the flue pipe The connection to the chimney should be provided and checked by a Nordic Fire dealer. The Nordic Fire dealer can check if the flue and chimney are sufficiently safe. In addition, he will check if the flue meets the valid regulations. -
Page 15: Flue Requirements
Flue requirements The flue system must meet the following characteristics: - the cross section of the flue must not be smaller than that of the connection to the stove and must not become narrower towards the chimney (adapters can be used to increase the diameter of the flue to the chimney);... - Page 16 Important when connecting the chimney - the chimney must first be checked by the Nordic Fire installer for leaks and the condition of the chimney. - a masonry, uninsulated flue is not allowed! - a masonry flue must be lined with a suitable inner liner which is insulated. For example, with vermiculite granules.
-
Page 17: Wood As Fuel
(paint) of the pan. - for use in a Nordic Fire wood stove, only wood that is sufficiently dry, cleaved and clean is suitable. - do not use wet wood. This is wasted energy (50% less energy!) and it pollutes your stove and chimney, increasing the risk of chimney fire. -
Page 18: Air Supply & Smoke Development
Some tips - wood should be stored split - firewood should be stored in a windy place protected from rain. - hardwood must dry longer than lighter woods. - damp wood is wasted energy. It pollutes your chimney and creates a nuisance in the area. Only wood that is suitable should be used in the wood stove. - Page 19 If the external air supply is not connected, adequate ventilation should always be provided. To prevent smoke from the stove escaping into the room when the door is opened, a check is recommended: - about 10 seconds before opening the door, fully open the primary air regulator (air lever as far for ward as possible);...
-
Page 20: Stoking The Stove
STOKING THE STOVE Important: Read through before commissioning - check that the connection to the chimney is completely sealed. - the stove becomes very hot when in use. You should pay attention to small children, people with physical disabilities or pets. They may burn themselves on the stove. - take care not to place flammable materials near the stove. -
Page 21: First Use
NOTES: During the first hours of operation, it is recommended to operate the stove at a low load, i.e., up to 50% of the normal load. The first ignition may be accompanied by condensation on the inner walls of the combustion chamber. -
Page 22: Environmental & Adverse Climatic And Transitional Conditions
Environmental & adverse climatic and transitional conditions Wood burning is a natural process that releases as much CO2 as it does during decay in the forest. However, poor combustion can release harmful fumes. That is why it is imperative that you, the user, fire correctly to avoid nuisance. -
Page 23: Proper Operation
PROPER OPERATION Stoves are designed to provide maximum efficiency. A properly fired wood stove can achieve an efficiency of about 79%. This means you need less wood for the same amount of heat. In addition, a well-fired stove produces less smoke pollution. Some tips for optimal stoking pleasure: - always fire your stove with the door closed. -
Page 24: Measures In Case Of Fire In The Chimney
We recommend that maintenance be performed by a specialized company before the start of the heating season. If the stove is used only for a limited period of time, in unfavorable wind or climatic conditions, increased attention during commissioning is essential. After a longer period without firing, it is necessary to check the permeability of the flue. -
Page 25: Cleaning The Glass Window
Cleaning the glass window The Nordic Fire wood stove is constructed so that the secondary air supply ensures that the glass pane is cleaned. Due to the high temperature and this air supply, dirt particles are burned as much as possible. -
Page 26: Emptying The Combustion Chamber
Emptying the combustion chamber To empty the combustion chamber, you can use a canned hand duster. However, the stove must be completely cooled down. Also, no glowing particles should be present anymore. This can often take up to at least a day after the fire is extinguished. A standard vacuum cleaner is not recommended, as the filter gets clogged by the fine ash. - Page 27 At the top of the stove is the baffle plate. After a certain time more and more ash will accumulate here. The retaining plate must be replaced in exactly the same way. It is important to do this carefully to avoid damaging the avoid damaging the chammoth.
-
Page 28: Malfunctions And Solutions During Operation
MALFUNCTIONS AND SOLUTIONS DURING OPERATION Problem Solution the door may have opened too abruptly, creating negative pressu- slowly opening the door re in the combustion chamber closed, adjustable flue shaft (if the opening the shaft installation has such an option) Check the efficiency of ventilation Backflow of smoke into the room insufficient air circulation in the... - Page 30 NOTES...
- Page 32 Instruction manual Wood built-in stoves Superior-Elite-Prestige www.nordicfire.eu...
