Contenido 1.MCI 800 MED 5. Indicaciones básicas de seguridad 2. Indicaciones generales 5.1. Símbolos de seguridad 2.1. Objetivo del manual 5.2. Seguridad para el operario 2.2. Dónde dejar el manual 5.3. Quién puede utilizar el equipo 3. Garantía 5.4. Reparación del equipo 4.

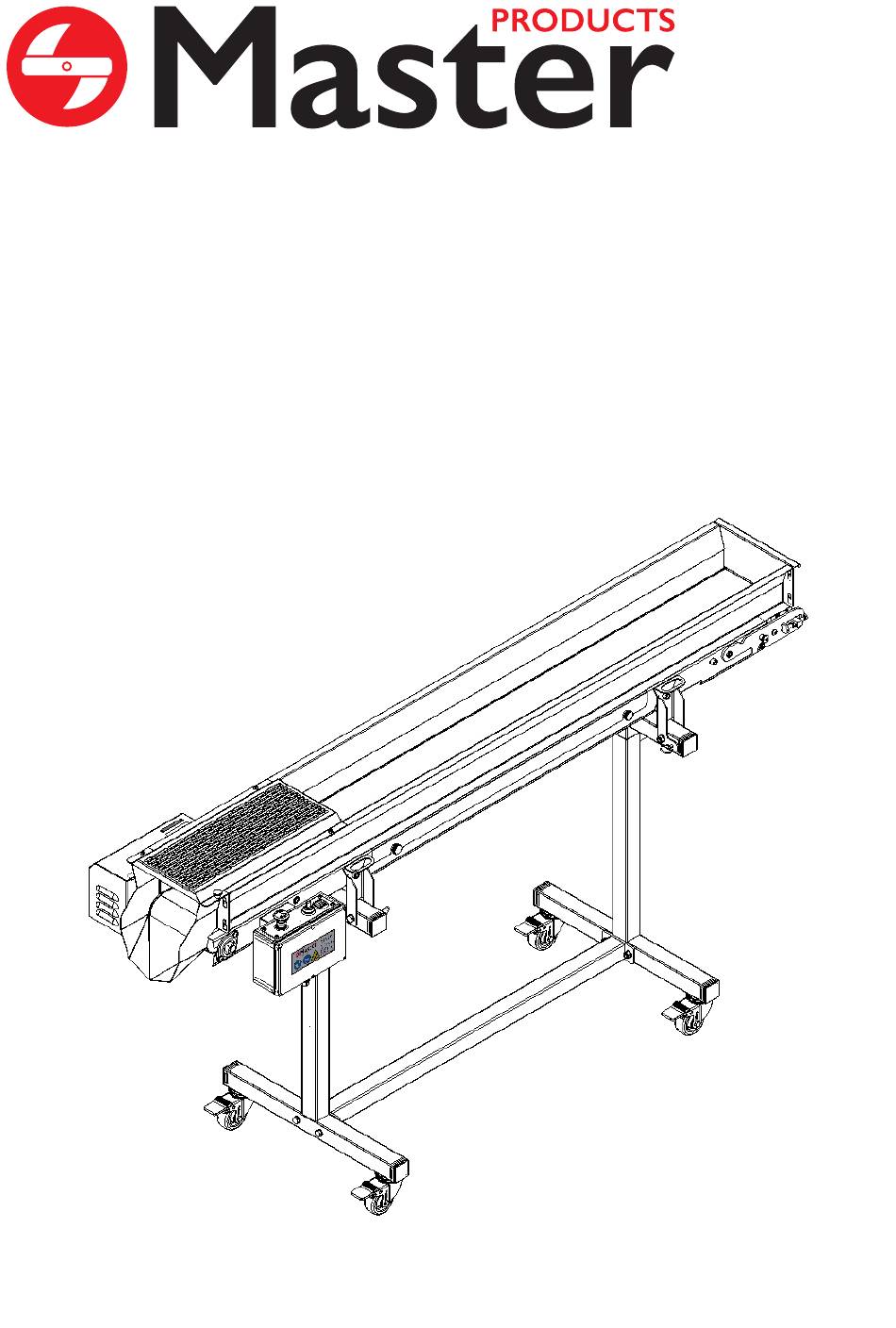

1. Equipo MCI 800 MED El equipo MCI 800 MED es un transportador de banda diseñado para alimentar de forma constante las máquinas recortadores MT Tumbler 800 & 800 MED. Su velocidad es ajustable según las necesidades del producto a procesar.
Solo un trabajador cualificado por Master Products puede desmantelar, reparar e instalar nuevas piezas en el equi- po. En caso de que la máquina esté en periodo de garantía, solo un trabajador de Master Products puede realizar acciones sobre ella sin perder la garantía.
800 MED. Su velocidad es ajustable según las necesidades del producto a procesar. Un sistema completo de producción Master Products es el formado por una Cinta de entrada MCI 800 MED, que incrementa la producción hasta un 30%, dos MT Tumbler 800 & 800 MED formando tándem para dar la inclinación deseada al sistema de producción y una Cinta de salida MCO 800 MED.
11.1. Montaje El equipo MCI 800 MED se entrega completamente protegida y encajada. En primer lugar, es necesario abrir la caja y comprobar que todo el material recibido es el especificado en este manual y se encuentra en perfectas condicio- nes.
Page 9
2. Con ayuda de una llave Allen N°10, retirar los tornillos, arandelas y tuercas de los soportes posteriores fijos como se muestra en la siguiente imagen. A continuación, retirar los pasadores de seguridad de los soportes basculantes frontales y dejarlos en la posición representada. 3.
Page 10
5. Accionar los dos posicionadores con muelle del cabezal basculante para liberarlo y girarlo hasta su posición de máxima apertura, como se muestra en la siguiente imagen. 6. Colocar la banda transportadora 7. Levantar los soportes basculantes frontales y fijarlos con los pasadores de seguridad. www.masterproducts.es...
Page 11
8. Bascular el cabezal tensor hasta la posición de tensado y fijarlo gracias a los posicionadores con muelle. Comprobar el tensado de la banda y de no ser suficiente, consultar el apartado tensado/destensado de la ban- da del presente manual para ajustarla. 9.
Page 12
10. Posicionar y encajar la caja de mandos en las ranuras del cuerpo principal de la banda transportadora, como se muestra en la siguiente imagen. 11. Conectar el extremo del cable de alimentación del motor, representado en color rojo en la siguiente imaginen, al conector de la caja de mandos.
11.2. Tensado de la banda Con ayuda de una llave fija N° 13 girar en sentido horario los tornillos del cabezal para tensar la banda transporta- dora, como se muestra en la siguiente imagen. ¡IMPORTANTE! Girar los dos tornillos las mismas vueltas para mantener una tensión uniforme de la banda. 11.3.
Mantenimiento 12.1. Aspectos generales Antes de montar, utilizar o realizar tareas de mantenimiento en el equipo MCI 800 MED, es imprescindible leer, entender y seguir las instrucciones del presente manual. El no cumplimiento de las instrucciones y precauciones de seguridad, podría causar graves daños o lesiones en los usuarios y en el equipo. Solo el personal autorizado y capacitado podrá...
Page 15
2. Desconectar de la caja de mandos el cable de alimentación del motor. 3. Desencajar y retirar la caja de mandos como se muestra en la siguiente imagen. 4. Desmontar la protección superior de entrada , aflojando y retirando el pomo moleteado .
Page 16
5. Accionar los dos posicionadores con muelle para liberar el cabezal basculante y girarlo hasta su posición de máxima apertura. 6. Extraer los pasadores de seguridad de los soportes basculantes frontales y girarlos hasta la posición represen- tada en la siguiente imagen. www.masterproducts.es...
7. Retirar la banda transportadora y proceder a la limpieza general del equipo y sus componentes. Retirar manualmente los restos más grandes de suciedad y producto acumulados en el equipo y sus componen- tes. A continuación, lavar con un rociador a presión o una manguera todos los componentes y el equipo en gene- ral.
Contaminación y daño del Posicionar correctamente ajustar correctamente al suelo producto el equipo el equipo 16. Datos generales Modelo MCI 800 MED 90 W Potencia Manual CMP-1897-00-B País España Nombre de la empresa MASTER PRODUCTS INOXIDABLE, S.L. Veïnat de la Banyeta nova, 10 Dirección...
Page 19
Content 1. MCI 800 MED 5. Basic safety instructions 2. General Instructions 5.1. Security symbols 2.1. Aim of the Manual 5.2. Safety for the operator 2.2. Where to keep the manual 5.3. Who can use the equipment 3. Warranty 5.4. Repairing the equipment 4.
3. Warranty Master Products offers a 2 years warranty on any defective part on this machine, as long as the defect is not due to misuse and/or lack of maintenance. For the warranty, it is essential to present the purchase invoice and contact the manufacturer.
Page 21
Tensioning side Conveyor belt structure (1 unit) (1 unit) Drive-side structure Crossbeam structure (1 unit) (1 unit) Bolt DIN933 M10x70 Washer DIN 9021 M10 (4 units) (8 units) Nut DIN985 M10 Rear protections (4 units) (1 unit) Left lateral protection Right lateral protection (1 unit) (1 unit)
5.5. How to stop the equipment The MCI 800 MED input conveyor belt is turned off whenever the on/off switch, located on the electrical panel, is pressed to leave it in OFF mode. Before carrying out any maintenance action on the conveyor belt, it must be disconnected from the electricity su- pply.
10. Operation Thanks to the MCI 800 MED input conveyor belt, the MT Tumbler 800 & 800 MED trimmers can be constantly fed. Its speed is adjustable according to the requirements of the product to be processed. A complete Master Products pro- duction system would consist of an input conveyor MCI 800 MED, two MT Tumbler 800 &...
Page 24
11.1. Assembly The equipment MCI 800 MED delivered fully protected and boxed. First of all, it is necessary to open the box and check that all the material received is as specified in this manual and is in optimum condition. If this is not the case, please contact Master Products technical service or your distributor.
Page 25
2. Using an Allen key No. 10, remove the bolts, washers and nuts from the fixed rear supports as shown in the following illustration. Then remove the locking pins from the front pivot supports and leave them in the position shown.
Page 26
5. Actuate the two spring-loaded positioners of the tilting head to release it and rotate it to its maximum opening position, as shown in the following figure. 6. Place the conveyor belt 7. Lift the front swivel supports and secure them with the locking pins. www.masterproducts.es...
Page 27
8. Tilt the tensioning head to the tensioning position and fix it with the spring-loaded positioners. Check the belt tension. If the belt tension is not sufficient, see the belt tensioning/stretching section of this manual. 9. Position the left and right side guards on the main body of the conveyor belt.
Page 28
10. Position and fit the electrical box in the grooves of the main body of the conveyor belt, as shown in the fo- llowing picture. 11. Connect the end of the motor power cable, shown in red in the following figure, to the connector on the elec- trical box.
11.2. Belt tensioning Using a spanner No. 13, turn the head bolts clockwise to tighten the conveyor belt, as shown in the following image. ¡IMPORTANT! Turn both screws the same number of turns to maintain even belt tension. 11.3. Belt de-tensioning Using a spanner No.
Maintenance 12.1. General aspects Before assembling, using, or servicing the Input conveyor belt MCI 800 MED, it is essential to read, understand, and follow the instructions in this manual. Failure to follow the instructions and safety precautions could cause serious injury to persons and damage to the equipment.
Page 31
2. Disconnect the motor power supply cable from the electrical box. 3. Unbox and remove the electrical box as shown in the following image. 4. Disassemble the upper input guard , by loosening and removing the knurled knob . Remove the rear guard and the input hopper .
Page 32
5. Actuate the two spring-loaded positioners to release the swivel head and rotate it to its maximum opening po- sition. 6. Remove the locking pins from the front pivot supports and rotate them to the position shown in the following image.
7. Remove the conveyor belt and carry out general cleaning of the equipment and its components. Manually remove larger dirt or product residues accumulated on the equipment and its components. Then wash all components and the equipment in general with a pressure sprayer or hose. Water is one of the two most im- portant cleaning agents.
Raw material may fall Correct positioning of the position and adjust be contaminated and fall on the ground equipment equipment down 16. General details MCI 800 MED Model Power 90 W Manual CMP-1897-00-B Country España MASTER PRODUCTS INOXIDABLE, S.L. Company name Address Veïnat de la Banyeta nova, 10...
Page 35
(Girona) Tel./Fax: (+34) 972-299-355 Email: info@masterproducts.es N.I.F: ESB55310817 Declares under its sole responsibility that the machine MCI 800 MED, with serial Nº.: It is in conformity with the provisions of the Directives and Regulations of the European Parliament and of the Council: - 2006/42/CE - Machinery Directive.
