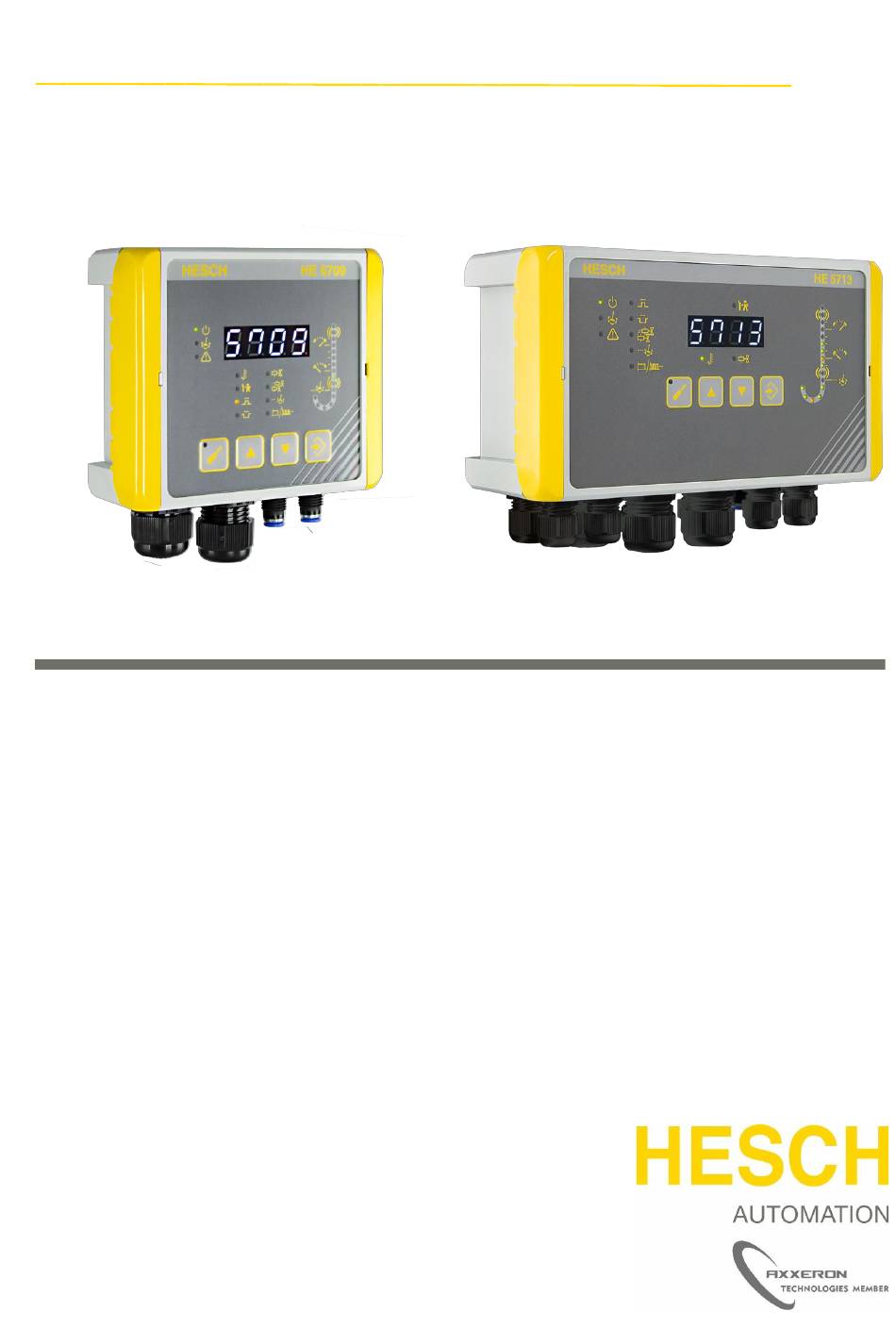

- Page 1 HE 5709 Basic / HE 5713 Basic Solenoid valve controllers in compact housing Operating instructions (Translation of Original German version) #370933 | Version 1.3...
-
Page 2: Document History
Published by: AXXERON HESCH electronics GmbH, documentation department Copyrights © Copyright 2025 AXXERON HESCH electronics GmbH. All rights reserved. The content including pictures and the design of these operating instructions are subject to copyright protection and other laws for the protection of intellectual property. -
Page 3: Table Of Contents
.................... 12 ECHNICAL DATA FOR DP MODULES AND N MODULES MOUNTING ..............................14 ..............................14 IMENSIONS 4.1.1 HE 5709 Basic (compact housing) ......................14 4.1.2 HE 5713 Basic (compact housing) ......................15 ................................16 ORQUES 4.2.1 Cable glands ............................16 4.2.2 Multiple cable glands .......................... - Page 4 .............................. 40 ARAMETER ABLE ........................43 ARAMETRISATION WITH DEVICE KEYS 4.0 ..................... 45 ARAMETRISATION VIA ONTROLS ............................47 FFSET FOR ZEROING ......................... 48 UNCTIONALITY OF DP OPERATING POINT ..........................49 ESET OF DEFAULT SETTINGS ERROR MESSAGES ............................50 ACCESSORIES .............................. 52 MAINTENANCE AND SERVICE ........................
-
Page 5: Legal Provisions
Legal Provisions Manufacturer AXXERON HESCH electronics GmbH, Boschstraße 8, 31535 NEUSTADT, GERMANY Intended use The solenoid valve controllers HE 5709 / HE 5713 Basic (compact housing) are used for time-controlled or differential pressure controlled cleaning of fabric filters. They can be operated without any interference of their safety within the operating and environmental conditions authorised in these operating instructions. -
Page 6: Safety Information
Safety Information Symbols and Basic Safety Instructions This chapter contains important safety regulations and notes. To prevent personal injury and material damage, it is necessary to read this chapter carefully before working with the device. Symbols used The following symbols are used in this manual. All safety instructions have a uniform structure. Personal Injury Warning! The severity of the danger is indicated by the respective signal word. -
Page 7: Signal Words
Signal words DANGER! Indicates an imminently hazardous high risk situation, which, if not avoided, will result in death or serious injury. WARNING! Indicates a potentially hazardous medium risk situation, which, if not avoided, can result in death or serious injury. CAUTION! Indicates a hazardous low risk situation, which, if not avoided, could result in minor or moderate injury. -
Page 8: Special Regulations
11 Accessories). The connection sets are not within the scope of delivery. The devices are delivered with blanking plugs. For further information about the connection sets, please contact the service department of AXXERON HESCH electronics GmbH (see chapter 12 Maintenance and Service). HE 5709 / HE 5713 Basic Operating instructions... -
Page 9: Device Identification And Name Plates
2.4.2 Name plates Note! The name plates are located on the right side of the housing. HE 5709 Basic (compact housing) HE 5713 Basic (compact housing) 24 V DC: 24 V DC: 100…240 V AC: 100…240 V AC:... -
Page 10: Technical Data
Technical Data Technical Data for solenoid valve controllers General 100…240 V AC / 50…60 Hz 24 V DC ±10 % with reverse voltage protection Supply by safety extra-low voltage (SELV) or protective extra- Supply voltage: low voltage (PELV) HE 5713: Up to 7 extension units can be supplied by the master controller Max. - Page 11 The devices are delivered with blanking plugs. For further information about the connection sets, please contact the service department of AXXERON HESCH electronics GmbH (see chapter 12 Maintenance and Service). Climatic ambient conditions -20 °C…...
-
Page 12: Technical Data For Dp - Modules And A-I N Modules
Technical data for dp-modules and A-In modules Note! Instead of the dp-module, an analogue input module can also be used for connecting an external differential pressure transmitter. dp-modules HE 5709: 1× Number of module slots HE 5713: 1× Current output: 4...20 mA or 0…20 mA Dynamic range: Load <= 600 Ω... - Page 13 dp-system accuracy Measurement range ± 2.5…± 10 ± 25…± 100 ± 350…± 1000 (in mbar) ± 1.5 % FSO ± 1.0 % FSO ± 0.5 % FSO Basic accuracy T = 25 °C T = 25 °C T = 25 °C ±...
-
Page 14: Mounting
The ambient temperature at the installation point must not exceed the permissible ambient temperature for operation (see chapter 3 Technical Data). Dimensions 4.1.1 HE 5709 Basic (compact housing) Dimensions HE 5709 Basic (compact housing) HE 5709 / HE 5713 Basic Operating instructions... -
Page 15: He 5713 Basic (Compact Housing)
4.1.2 HE 5713 Basic (compact housing) Dimensions HE 5713 Basic (compact housing) HE 5709 / HE 5713 Basic Operating instructions #370933 | Version 1.3... -
Page 16: Torques
Torques Note! When installing the device, you must strictly observe the torques listed in the following tables. 4.2.1 Cable glands Type Clamping range for cables Screw-in Dust thread / cover Counter nut Gasket 1+2+3 Gasket 1+2 Gasket 1 Colour Min. Max. -
Page 17: Multiple Cable Glands
The housing in Figure 5 is exemplary Note! Alternatively, the wall mounting can be done with wall brackets (for more information, please contact the service of AXXERON HESCH electronics GmbH). Rear of housing, exemplary HE 5709 / HE 5713 Basic Operating instructions... -
Page 18: Opening The Device
Opening the housing lid Optionally, the housing lid can in addition be closed with 4 screws in order to protect it from unauthorised access. For further information, please contact the service of AXXERON HESCH electronics GmbH (see chapter 12 Maintenance and Service.) The screwless hinge closure is recommended for quick service access. -
Page 19: Device Description
AXXERON HESCH electronics GmbH (see chapter 12 Maintenance and Service). The solenoid valve controller HE 5709 Basic (compact housing) has 4 valve outputs, the HE 5713 Basic (compact housing) has 12 valve outputs. Both devices are available with 24 V DC or 100…240 V AC. -
Page 20: He 5713 Basic (Compact Housing)
HE 5713 Basic (compact housing) HE 5713 Basic (outer and inner view exemplary on the device version 100…240 V AC). Extension unit (usage in combination with HE 5713 Basic only) The device type HE 5713 Basic (compact housing) can be extended to 96 valves maximum, e.g. up to 7 extension units can be connected. - Page 21 Internal view of the extension unit for HE 5713 HE 5709 / HE 5713 Basic Operating instructions #370933 | Version 1.3...
-
Page 22: Electrical Commissioning
Electrical Commissioning Please observe the following safety notes before electrical commissioning. Danger of Electrocution! Electrical installation must only be carried out when the power is disconnected. Explosion Prevention! With closed cover, the device is suitable for use in EX zone 22. Before opening the device, it is essential to ensure that no explosive environmental conditions, such as dust generation, exist. -
Page 23: Wiring Diagram
Supply voltage / Operation Please refer to the name plate for correct supply voltage (100…240 V AC or 24 V DC). Supply voltage L/+: HE 5709 Basic / HE 5713 Basic 100…240 V AC or 24 V DC N/-: 0 V PE: Protective earth The device is ready for operation, when the supply voltage is applied. -
Page 24: Relay Outputs
Note! In test mode, solenoid valves can also be controlled without enabling. Note! All digital inputs of a system refer to the same ground (-). It is allowed to use one ground line for several inputs. Note! Post-cleaning is suppressed as long as precoating is activated. 6.2.2 Relay outputs Relay outputs HE 5713 has two relay outputs (REL1 + REL2). -
Page 25: Valve Connections And Analogue Outputs
Valve connections and analogue outputs Terminal clamps 4…20 mA Valve terminal clamps Valve clamps and analogue outputs Four valves maximum can be connected to the HE 5709 and 96 valves maximum to the HE 5713 Basic (when 7 extension units maximum are connected). The solenoid valve connections are arranged vertically one above the other (see Figure 10). -
Page 26: Analogue Outputs
6.3.1 Analogue outputs The dp-module has an analogue current output and an analogue voltage output. The current differential pressure is indicated with a 0(4)…20mA & 0…10V signal which is not galvanically separated. 0…10 V 0(4)…20 mA HE 5709 / HE 5713 Basic Operating instructions #370933 | Version 1.3... -
Page 27: Connecting The Extension Units To He 5713 Basic (Compact Housing)
Connecting the extension units to HE 5713 Basic (compact housing) By connecting up to 7 extension units, the number of valves can be increased to a total of 96. Extension unit 2… HE 5713 Basic (compact housing) Extension unit 1 Connecting extension unit to HE 5713 Basic 1. -
Page 28: Differential Pressure Measurement
Differential pressure measurement HE 5709: +p1 raw gas +p2 pure gas HE 5713: +p1 raw gas +p2 pure gas Connections HE 5709 / HE 5713 Basic The differential pressure is measured internally and can also be transmitted as a 4…20 mA signal to a higher-level controller or display unit. -
Page 29: Display And Operating Elements
Display and Operating Elements Display and Operating Elements, externally External display and operating elements HE 5709 Basic / HE 5713 Basic HE 5709 / HE 5713 Basic Operating instructions #370933 | Version 1.3... - Page 30 Symbols/Indicators Meaning External Operation signal Cleaning active Alarms active Pulse time is executed Pause time is executed Number of valve is displayed and can be changed Post-cleaning cycle is executed Complete cycle/part cycle Test mode Differential pressure is displayed in the (meaning of the LEDs of the differential pressure column, see chapter 7.2 Differential pressure column.
-
Page 31: Differential Pressure Column
Symbols/Indicators Meaning External 7-segment display regular operation: current differential pressure, current solenoid valve parametrisation mode: parameter values and error messages by pressing the keys UP/DOWN, the display mode can be switched. Differential pressure column Delta-p measuring range High alarm Upper threshold-start cleaning dp-operating point... -
Page 32: Display And Operating Elements On The I/Oboard
Display and Operating Elements on the I/O board The display and operating elements on the I/O board are used for basic settings or easier troubleshooting during servicing and can only be accessed when the cover is open. Explosion Protection! HE 5709 and HE 5713 Basic (compact housing) are, with closed lid, suitable for use in hazardous dust explosive areas of zone 22. - Page 33 For the basic device HE 5713, the device address to be set is always 1. The rotary coding switches of the connected extension units must be set to 2, 3 etc.. AXXERON HESCH electronics GmbH delivers the extension units with the preset device address 2.
-
Page 34: Operation
Operation Switching the device on Connect the device to a voltage supply. The device carries out an LED test, i.e. each LED on the operating unit lights up once briefly and goes off again. The display shows HE 5713 as scrolling text and afterwards the currently measured value. -
Page 35: Test & Service
Test & Service Note! The test & service menu is cancelled automatically 30 seconds after the last key was pressed! Press the PARA key to enter the test mode of the device. The LED on the PARA key lights up yellow. ... - Page 36 Starting the output tests (b.): Press the ENTER key. The decimal point at the bottom right of the display is flashing. Press the ENTER key once again. Output and input are switching. The decimal point in the display is flashing. Press the PARA key twice to leave the menu point b.
- Page 37 Press the ENTER key to activate the selected valve. The right decimal point of the display indicates an ongoing valve control and subsequent pause time. During the valve activation, a test cannot be started. During cleaning / post-cleaning, a test cannot be started either.
- Page 38 Post-cleaning Starting the post-cleaning (f.): Press the ENTER key (post-cleaning LED flashes) to start or stop the post-cleaning. This is done independently of the enable signal at the digital input. The display indicates a stopped cleaning with and an ongoing cleaning with Press the ENTER key to confirm a start or stop of post-cleaning.
-
Page 39: Activate / Deactivate Precoating
Press the PARA key to leave the test mode dp-measuring range. Test is displayed again. Activate / Deactivate precoating Activate: Press the UP and ENTER keys simultaneously. The display shows PrE alternating with the differential pressure or the number of the active valve. -
Page 40: Parametrisation
Parametrisation Parameter Table Parameter Setting range Default setting Solenoid valve controller: 0.01…9.99 s Pulse time 0.10 s 1.0…999.0 s Pause time 1.0 s 0…96 Number of valves 0 (teach-in) Off (0)…20 Post-cleaning cycles 0…9 Cleaning mode part cycles/complete cycles I/O jump active (HE 5713 only!) Off /On Differential pressure: 0.0…50.0 mbar... - Page 41 Parameter Setting range Default setting Off (-5.0)…50.0 mbar Low alarm [mbar] Threshold for low alarm message When the post-cleaning threshold is not underrun within 5 minutes, an alarm is generated when the differential pressure falls below the low alarm threshold. Off (0.0)…50.0 mbar Post-cleaning threshold [mbar] ...
- Page 42 Parameter Setting range Default setting Number of valves I/O unit 1… 8 0…12 If more than one I/O unit is connected, the number of valves for each I/O unit can be limited or be teached in. This is done the same way as setting the parameter ‘Number of valves’.
-
Page 43: Parametrisation With Device Keys
Parametrisation with device keys Note! All parameters can be set via the device keys as well as via EasyTool Controls 4.0. Solely the password can only be set via EasyTool. Press the PARA key to change the values of the system parameters. - Page 44 Press the ENTER key to save the parameter value. The entered value is accepted. Press the PARA key to discard the parameter value. The set value is discarded. The parametrisation mode is terminated and you leave the parameter menu. ...
- Page 45 Parametrisation via EasyTool Controls 4.0 Note! All parameters can be set via the device keys as well as via EasyTool Controls 4.0. Solely the password can only be set via EasyTool. The parameters can also be set via EasyTool Controls 4.0. Below the tab Parameters, you find a list of the device parameters.
- Page 46 Device parameters in EasyTool Controls 4.0 for HE 5713 HE 5709 / HE 5713 Basic Operating instructions #370933 | Version 1.3...
-
Page 47: Offset For Zeroing
Offset for zeroing If zeroing needs to be carried out, a warm-up time of 30 minutes must be observed. Press the PARA key to change the values of the system parameters. The LED on the PARA key lights up yellow ... -
Page 48: Functionality Of Dp-Operating Point
Functionality of dp-operating point If the parameter operating point is set, than the currently set pause time is taken as minimum pause. That means that the device cannot clean faster than in this set pause time. The device waits for this minimum pause time after the valve pulse. Then the pause is extended. This means that the next valve pulse is performed when the expected differential pressure drops until the dp-operating point is reached. -
Page 49: Reset Of Default Settings
When operating point is set, the operating point LED lights up and the LEDs right above and right below are glowing. If the LED above is glowing, this indicates that it is deviated upwards from the operating point. If the LED below is glowing, it is deviated downwards from the operating point. -
Page 50: Error Messages
AXXERON PCB. HESCH electronics GmbH (see chapter 12 and the LEDs for High Maintenance and Service) and Low alarm are alternately flashing ... - Page 51 If the Status LED still does not light up, please contact dp-module is not installed the service of AXXERON or does not fit properly on HESCH electronics GmbH the PCB.. (see chapter 12 Maintenance and Service). ...
-
Page 52: Accessories
For futher information about accessories, please contact the service department of AXXERON HESCH electronics GmbH (see chapter 12 Maintenance and Service). Wir recommend the following connection sets of AXXERON HESCH electronics GmbH: Connection set for HE 5709: Connection set for HE 5713:... -
Page 53: Maintenance And Service
Disposal Dispatch metals and plastics for recycling. Electrical and electronic components must be collected separately and disposed of properly. Dispose of equipped circuit boards properly. Service AXXERON HESCH electronics GmbH Boschstraße 8 31535 NEUSTADT, GERMANY Phone: +49 5032 9535–0 Web: www.hesch-automation.com...
