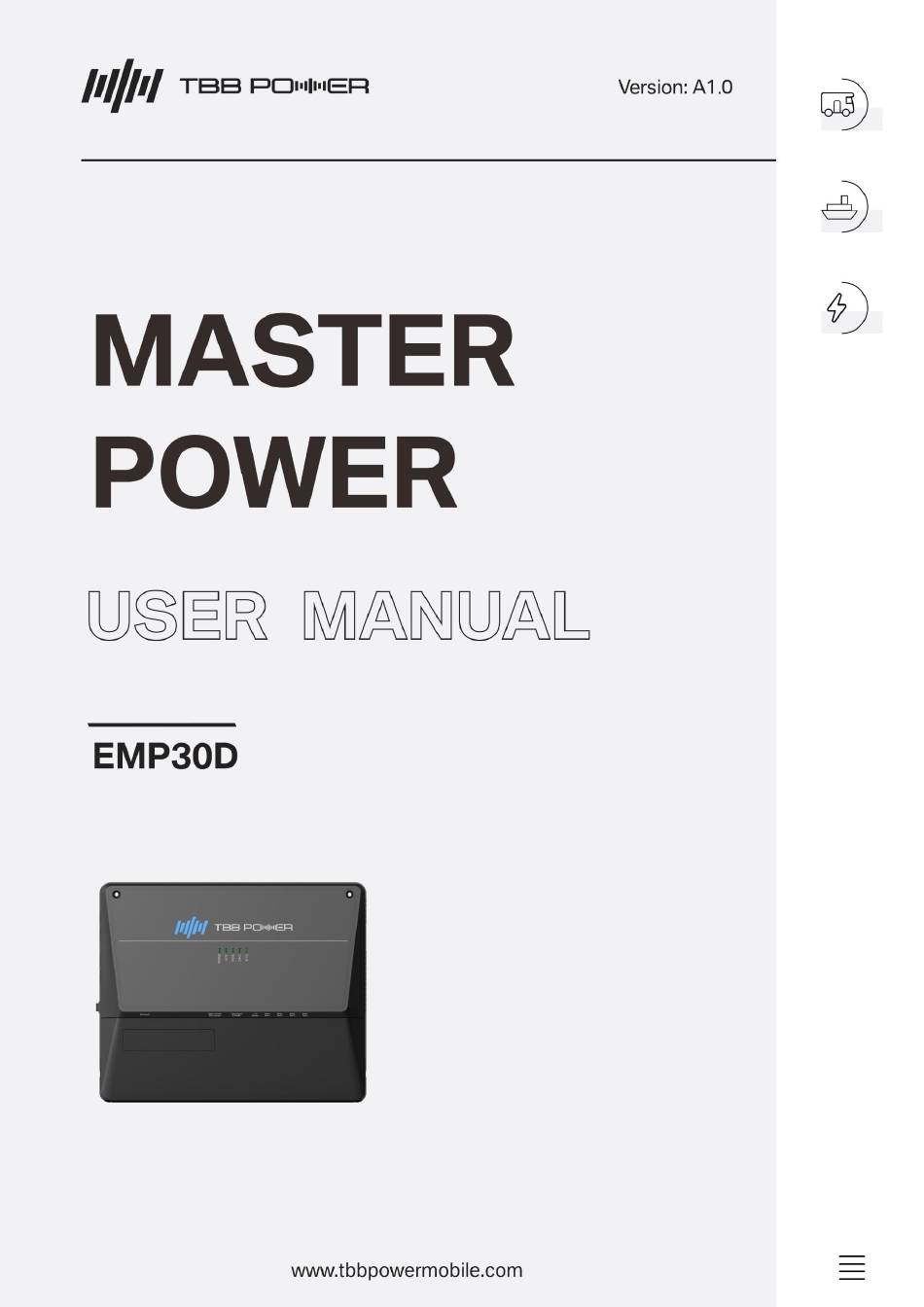

- Page 1 User manual of EMP30D...
- Page 2 User manual of EMP30D...
- Page 3 User manual of EMP30D...
-
Page 4: Table Of Contents
User manual of EMP30D Content 1.General Safety Instruction ........................1 1.1 Safety Instruction .......................... 1 1.2 General Precaution........................1 1.3 Precaution regarding battery operation ..................1 2.Product Instruction ..........................2 2.1 Features ............................2 2.2 Block diagram ..........................3 3.Key Feature and Functions ........................4 3.1 Multiple Inputs .......................... -
Page 5: General Safety Instruction
User manual of EMP30D 1. General Safety Instruction 1.1 Safety Instruction As dangerous voltages and high temperature exist within the EMP30D Master Power Unit, only qualified and authorized maintenance personnel are permitted to open and repair it. Please make sure the unit is turned off before open and repair This manual contains information concerning the installation and operation of EMP30D Master Power Unit. -
Page 6: Product Instruction
User manual of EMP30D 2. Product Instruction 2.1 Features EMP30D unit has below features： ▪ Smart battery charger 12V 35A(30A for charging current) -Multi stage adaptive charging algorithm -Active Power Factor Correction(PFC) charging -Temperature compensation charging ▪ Float charge for starter battery EMP30D ▪... -
Page 7: Block Diagram
User manual of EMP30D 2.2 Block diagram Figure 1 Unit Schematic... -
Page 8: Key Feature And Functions
User manual of EMP30D 3. Key Feature and Functions 3.1 Multiple Inputs EMP30D Master power unit may have multiple charging sources at any one time.These sources include AC mains, Solar and starter battery (Vehicle) Charging priorities are listed within the table to the right. 3.2 Battery Charger Of Stationery/Service Battery The charger automatically starts when the appropriate qualified power is connected, either from grid, generator or solar. -
Page 9: Vehicle Battery Charger
User manual of EMP30D 3.3 Vehicle Battery Charger Along with a powerful charger for service battery, EMO30F offers a float charge of up to 3A to keep the starter battery charged, whether connected to the AC main or PV. When the starter battery is less than 12.4V, the EMP30D starts charging after 30 minutes delay and stops charging when voltage reaches 12.8V 3.4 Power Supply Mode If no battery is attached to EMP30D Unit.It will work as a power supply automatically with a 12.8VDC output. -
Page 10: Battery Low Voltage Protection (Blvp Or Commonly Known As An Lvd)
User manual of EMP30D Type DESCRIPTION POSSIBLE LOAD SUITABLE Class A5 Relay controlled output with fuse，Protected by main Water Pump，HWS,TV etc. master switch relay Class A2 PWM controlled，protected by master switch relay General lighting，such as ceiling light,Dining light,Bedroom light light Class C2 Fused outputs,protected by master switch relay Ventilation fan etc. -
Page 11: Structure And Installation
User manual of EMP30D 4. Structure And Installation 4.1 EMP30D Power Management System Name Description Remark AC Input AC input IEC socket Solar+ Solar input Positive SBAT+ Starter BATT input Positive BAT+ Service BATT input Positive Screw terminal Always ON+ 40A Always ON output Positive Solar- Solar input Negative... - Page 12 User manual of EMP30D Installation: GEN3 PM unit adopts forced air-cooling heat dissipation method, in order to ensure good heat dissipation, it is necessary to ensure that there is enough wiring space, and it is also recommended that the installation space has a certain number of cooling holes to ensure air convection.
- Page 13 User manual of EMP30D...
-
Page 14: Preparation
User manual of EMP30D 4.2 Preparation EMP30D system is designed with concept of 'Plug in and Play' in mind. To complete the easy installation, a screw driver and DC cables are required. Follow Table 5 recommendation for minimum wirings. CURRENT MINIMUN CABLE SIZE 0-5A 1.0mm2 or 18AWG 5-10A... -
Page 15: Wiring
User manual of EMP30D 5. Wiring 5.1 EMP30D Master unit... -
Page 16: Operation
User manual of EMP30D 6. Operation 6.1 Manual switch There is an ON/OFF switch on the side of the machine, which is used to control the whole machine to switch on/off when it is powered by battery alone, and to control the whole machine to enter into sleep mode when it is powered by mains power. -
Page 17: Maintenance
User manual of EMP30D Pin3-4 Defination Type Absorption Float 14.7 13.7 14.2 13.5 14.1 13.5 14.4 13.5 6.4 Maintenance Battery Monitor Maintenance There is a built-in battery measurement in the EMP30D systems，To ensure accuracy，maintain the system with the following instructions: 1: Fully charge the battery from AC grid instead of Solar every 2 weeks. -
Page 18: Specification
User manual of EMP30D 7. SPECIFICATION Model EMP30D ELECTRICAL SPECIFICATIOINS Grid Nominal input voltage（V） 240V±10%VAC 50/60Hz Power factor 0.95 Input current at full load 2.5A Battery Starter Battery 12VDC Starter battery voltage range 12.8-16VDC Service battery 12VDC Service battery Voltage range 10.5V-16VDC Charge Type MPPT... - Page 19 User manual of EMP30D Model EMP30D ELECTRICAL SPECIFICATIOINS Current Only Battery and Load switch 700mA Draw on Battery Only Battery and Load switch 300mA Only Battery, Voltage ＜ LVD 180mA ＜ 1mA Power Switch OFF Fuse Numbers Outputs Rated Current Lights outputs L7,L8,L9 5A x 3 Protection...
- Page 20 User manual of EMP30D...
