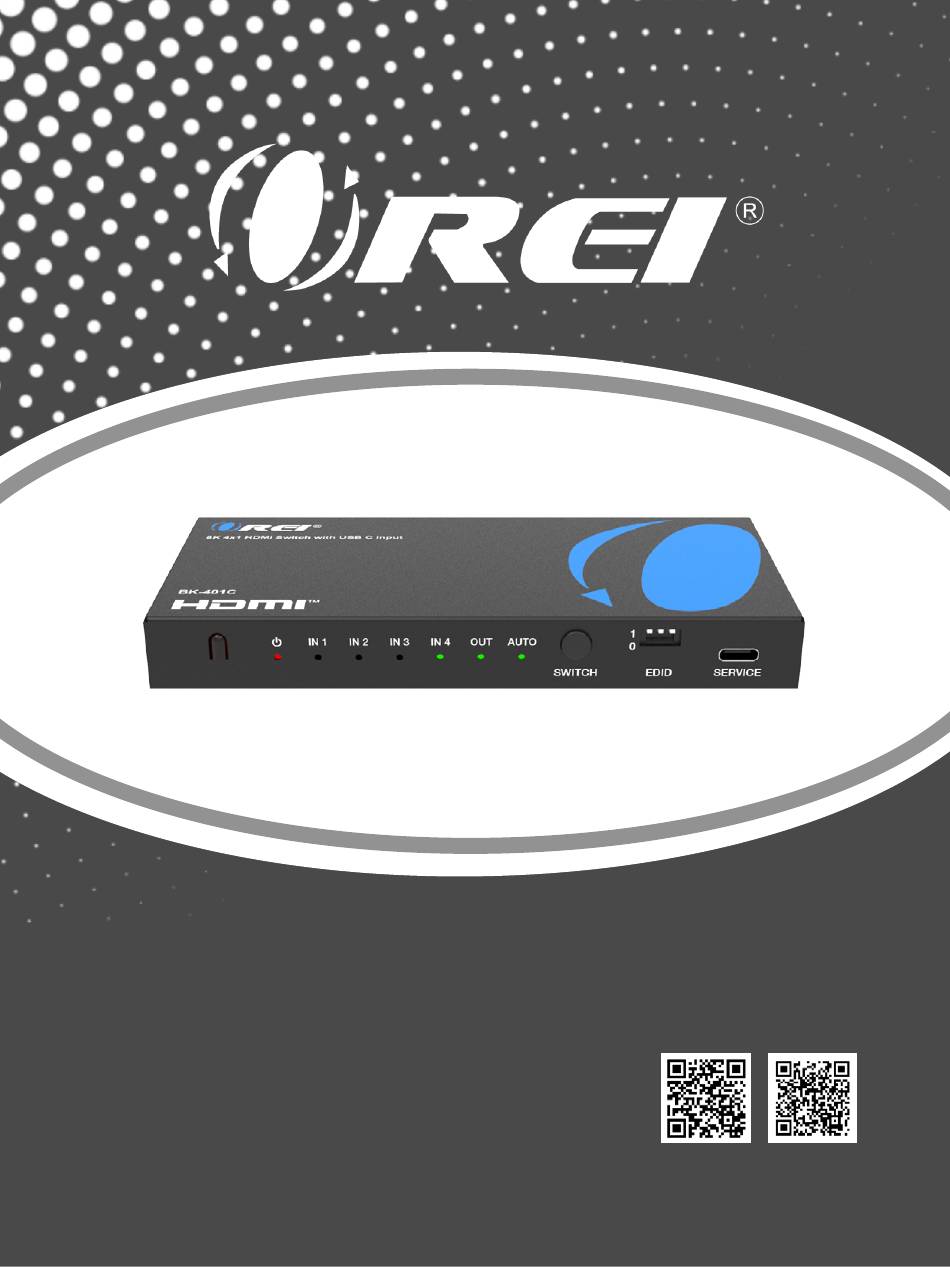

- Page 1 BK-401C 8K 4x1 HDMI Switch with Follow us on Youtube and Facebook USB C Input US ER MANUAL www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Remote Application Example FAQs & Troubleshooting Thank you for purchasing this product For optimum performance and safety, please read these instructions care- fully before connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 3: Registration Page
OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 5 p.m. Central Time Support Email - info@orei.com | Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily. -
Page 4: Introduction
Introduction The BK-401C HDMI Switch lets you switch between 4 media sourc- es for output on a single display. The device includes 3 HDMI inputs and 1 USB C input to connect your media devices. It supports video resolutions up to 8K@60Hz and 4K@120Hz with a 48Gbps video band- width, as specified in HDMI 2.1. -
Page 5: Features
7. Supports Automatic switching 8. CEC support between the output and 3 HDMI inputs 9. Control via front panel and included remote 10. Durable build and easy to install Package Contents BK-401C Switch 1pcs IR Remote 1pcs 5V/1A Power Supply... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 DP Compliance DP 1.4 HDMI: Up to 48Gbps FRL and 18Gbps TMDS Video Bandwidth USB-C: Up to 32Gbps HDMI: Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit Video Resolution USB-C: Up to 8K@30Hz 4:2:2 10-bit, 4K@120Hz 4:2:2 10-bit Color Space RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth... - Page 7 Specifications Mechanical Housing Metal Enclosure Color Black L: 145mm / 5.7in Dimensions W: 68mm / 2.67in H: 18mm / 0.7in Weight 258g / 9.1oz Input: AC100-240V 50/60Hz, Output: DC 5V/1A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 2.25W (Max) Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel IN 1 IN 2 IN 3 IN 4 AUTO SWITCH EDID SERVICE Name Function Description IR window IR signal receiving window. Power LED When the device is powered on, the Red LED will light up. IN 1/2/3/4 When the IN 1/2/3/4 port is selected as an input channel of the signal source, the corresponding green LED will light up. -
Page 9: Ir Remote
Operation Controls and Functions & IR Remote Rear Panel IN 1 IN 2 IN 3 IN 4 DC 5V Name Function Description Connect a media device such as a DVD Player, set-top box, IN 1/2/3 etc. IN 4 Connect a media device such as a Latop, computer, etc. OUT port Connect a display device such as a TV or Projector. -
Page 10: Application Example
Application Example IN 1 IN 2 IN 3 IN 4 DC 5V Power Supply TV box 8K TV DVD or Blu-ray Player The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the Unit- ed States and other countries. -
Page 11: Faqs & Troubleshooting
TV. Still have some questions? Please feel free to contact us at: info@orei.com. OR Fill out the form on the ‘Contact Us’ page on the website. Our team will be more than happy to help you. - Page 12 8K 4x1 HDMI Switch with USB C Input BK-401C www.orei.com © 2024...
