Orei 3X1 User Manual

· INSTALLATION
DVD

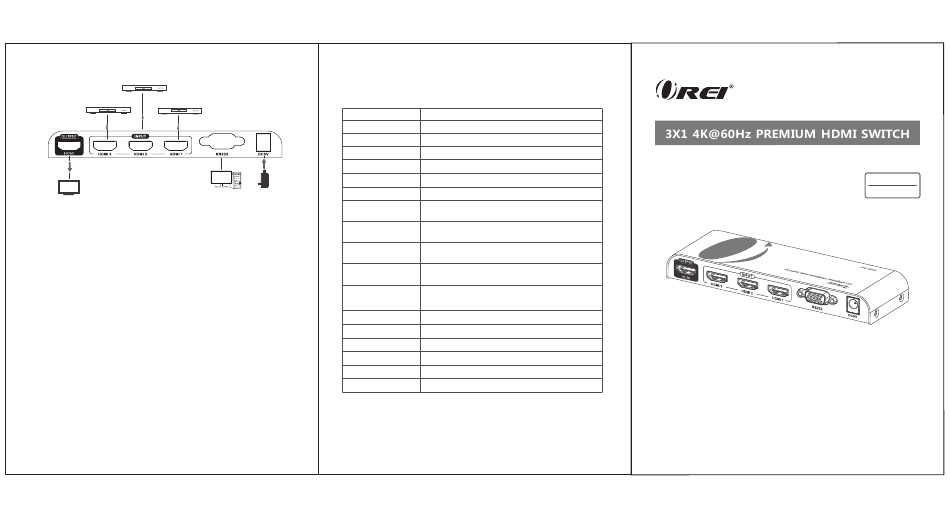

1. Connection
DVD DVD
Display
Connection RS232 serial port operation illustration
illustration
1. Connect the HDMI sources to the 1. Baud rate: 9600bps
HDMI Input of the HDMI Switch 2.Order of RS232 serial port
2. Connect the display to the HDMI 1)HDMI 1 input： port0R
output of the HDMI Switch 2)HDMI 2 input： port1R
3. Connect the power adapter to the 3)HDMI 3 input： port2R
HDMI Switch 4)Power ON：poweronR
4. You may select your input source 5)Power OFF：poweroffR
DC5V/ 1A via remote controller or
RS232
· FAQ
Q: No image at output?
A: 1) Check the power supply and make sure that the power light is on.
2) Check if the HDMI cables are connected well.
3) Make sure that the TV has been set up to the right HDMI input.
4) If connected to the PC or notebook via HDMI, please make sure the
output mode is mirror or extend.
Q: Display is unstable, splash screen, snowflakes or static audio?
A: 1) Check and make sure all connections are connected well.
2) Try to directly connect HDMI source to display, if it is the same issue,
Then please change the source device.
3) Use high-quality HDMI 1.4 or HDMI 2.0 cable for transmitting
4K×2K UHD signal.
· SPECIFICATION
Items
HDMI Switch
Input ports
Output ports
Power indicator led
Signal indicator led
HDMI Version
HDCP Version
Video form
Input and output
TMDS signal
Input and output
DDC signal
Audio
HDMI Resolution
Working temperature
Power supply
Power consumption
Dimension
Weight
Color
Disclaimer
The OREI brand is registered trademark.
Design and specifications of this unit are subject to change without prior notice.
Pictures are for reference only.Products may differ slightly from images shown.
Specifications
3 x HDMI
1 x HDMI
1 xLED
3xLED
Compatible with DVI1.0, HDMI1.4, HDMI2.0
Compatible with HDCP1.4, HDCP2.2
Supports 12 bit full HD video, 3D video and
4K×2K@30/60Hz ultra HD video
0.7~1.2Vp-p
5Vp-p
Supports standard audio, DSD (Direct Stream
Digital and HD(HBR) audio
480i/480p/576i/576p/720p/1080i/1080p/
4K×2K@24/25/30/60Hz
0℃～60℃
DC5V/1A
<5W
160(L)×51.5(W)×20(H)mm
230g
Black

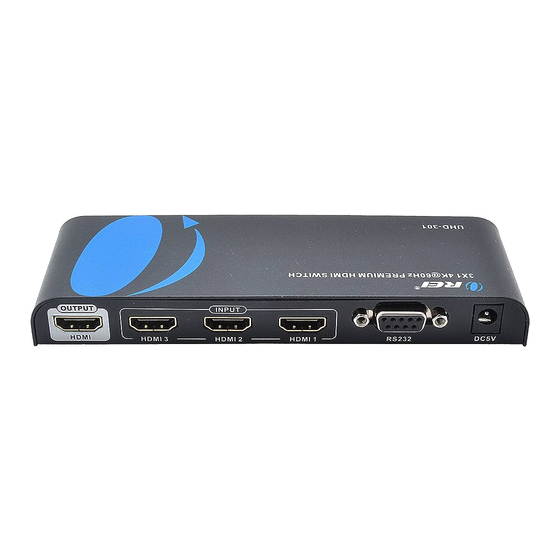

UHD-301 User manual
4K X 2K
UHD
