- Page 1 BK-401 8K HDMI Follow us on Youtube and Facebook 4x1 Switcher U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Remote Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction

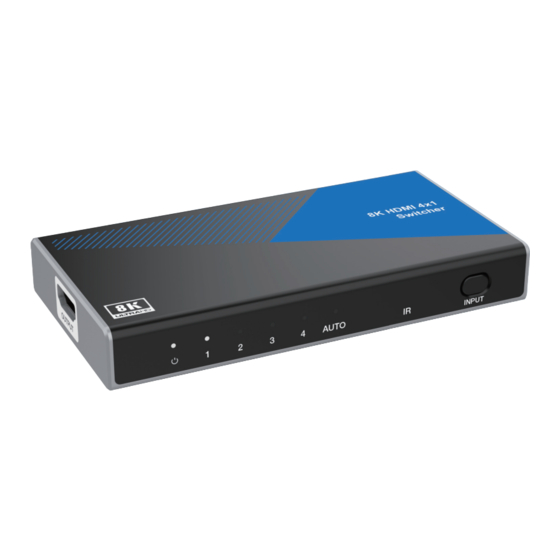

Introduction This 8K HDMI 4x1 Switcher can switch any of 4 HDMI sources to 1 HDMI display. It supports video resolution up to 8K@60Hz 4:4:4, 48Gbps video bandwidth. It is suitable for outdoor display, video conference, security monitoring, home theater and other applications. -
Page 5: Features
Features HDMI 2.1 and HDCP 2.3 compliant Support 48Gbps video bandwidth 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit video support Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through VRR, FVA, ALLM support Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio 4x1 switch output, auto switch is supported Built-in Equalizer and Driver... -
Page 6: Package Contents
Package Contents 8K HDMI 4x1 switcher 1pcs IR Remote 1pcs 5V/1A Power Supply 1pcs User Manual 1pcs page 06... -
Page 7: Specifications
Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Video Resolution Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit Color Depth 8-bit,10-bit,12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD... -
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel Rear Panel Side Panel page 08... - Page 9 Operation Controls and Functions Name Function Description POWER LED When the device is powered on, the white power LED is on. When the INPUT 1/2/3/4 port is selected as the signal source IN LED (1~4) input channel, the corresponding white LED will be on. When the auto switching mode is enabled, the corresponding AUTO LED white LED will be on.
-
Page 10: Ir Remote
IR Remote IN1/2/3/4 : Press 1/2/3/4 button to select HDMI signal source IN 1/2/3/4 to the OUT port. Press this button to cyclically switch HDMI signal source 1/2/3/4 to the OUT port. page 10... -
Page 11: Application Example
Application Example page 11... - Page 12 8K HDMI 4x1 Switcher www.orei.com © 2022...
