- Page 1 UHDS-401A 18Gbps HDMI 4x1 Switcher Follow us on Youtube and Facebook with ARC/eARC Function U S E R M A N U A L www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions IR Remote Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this prod- uct. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction

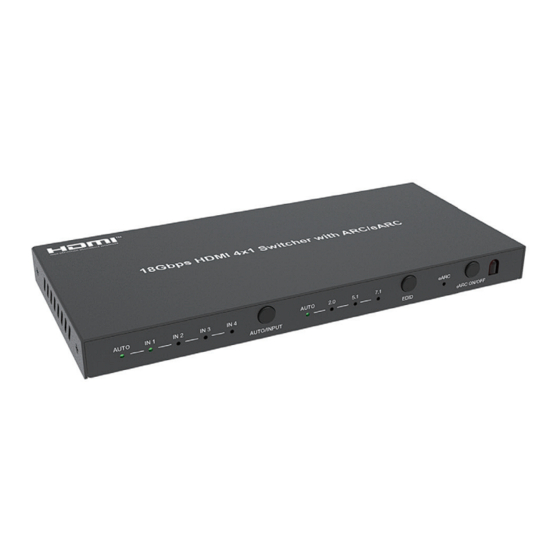

Introduction This 18Gbps HDMI 4x1 Switcher can switch any four HDMI sources to one HDMI display. It supports video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4. It supports ARC/eARC function (only for the “INPUT 1(eARC)” port), 10bit HDR and CEC function. It also supports advanced EDID management (AU- TO/2.0CH/5.1CH/7.1CH selectable). -
Page 5: Features
Features HDMI 2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant Video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4 Support 18Gbps video bandwidth Support 3D, HDR, HDR10, HDR10+, Dolby Vision pass-through Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Support auto/manual switching mode for input source Support ARC/eARC function... -
Page 6: Package Contents
Package Contents 18Gbps HDMI 4x1 Switcher 1pcs IR Remote 1pcs 5V/1A Power Adapter (USA Standard) 1pcs User Manual 1pcs page 06... -
Page 7: Specifications
Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 / 1.x Video Bandwidth 18 Gbps Video Resolution 4Kx2K@24/30Hz, 4K2K@60Hz Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 HDMI Audio Formats LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master... -
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel AUTO IN 1 IN 2 IN 3 IN 4 AUTO eARC AUTO/INPUT EDID eARC ON/OFF Name Function Description When the auto switching mode for input source is enabled, AUTO LED the AUTO LED is on. When the INPUT 1/2/3/4 port is connected to source IN 1/2/3/4 LED signal, the corresponding IN 1/2/3/4 LED is on. - Page 9 Operation Controls and Functions Rear Panel INPUT 1(eARC) INPUT 2 INPUT 3 INPUT 4 OUTPUT (eARC) SERVICE DC 5V Name Function Description HDMI input ports, connect to HDMI source device such as DVD, PS4 or Set-top Box with HDMI cable. Note: When the ARC/eARC function is turned off, connect the INPUT 1/2/3/4 “INPUT 1(eARC)”...
-
Page 10: Ir Remote
IR Remote AR C ARC: Press this button to turn on/off ARC/eARC function. When ARC/eARC function is turned on, the eARC LED on the Auto 2.0ch front panel will be on Auto Auto/2.0ch/5.1ch/7.1ch: Press these buttons to select differ- Source ent EDID settings, and the corresponding LED on the front panel will be on. -
Page 11: Application Example
Application Example Situation 1 When the ARC/eARC function is turned off, the connection diagram is as following. INPUT 1(eARC) INPUT 2 INPUT 3 INPUT 4 OUTPUT (eARC) SERVICE DC 5V Power Supply TV box HDTV DVD or Blu-ray Player The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 12 Application Example Situation 2 When the ARC/eARC function is turned on, select the input port 1 by pressing the “AUTO/INPUT” button on the front panel or the In1 button on the IR remote, then connect the “INPUT 1(eARC)” port to a Soundbar to output the audio signal returned from the “OUTPUT(eARC)”...
- Page 13 Application Example Situation 3 When the ARC/eARC function is turned on, select the input port 2/3/4 by pressing the “AUTO/INPUT” button on the front panel or the In2/3/4 button on the IR remote, then connect the “INPUT 1(eARC)” port to a Soundbar to output the audio signal extracted from “INPUTS 2/3/4”...
- Page 14 18Gbps HDMI 4x1 Switcher with ARC/eARC Function www.orei.com © 2022...
