Summary of Contents for Orei BK-401S

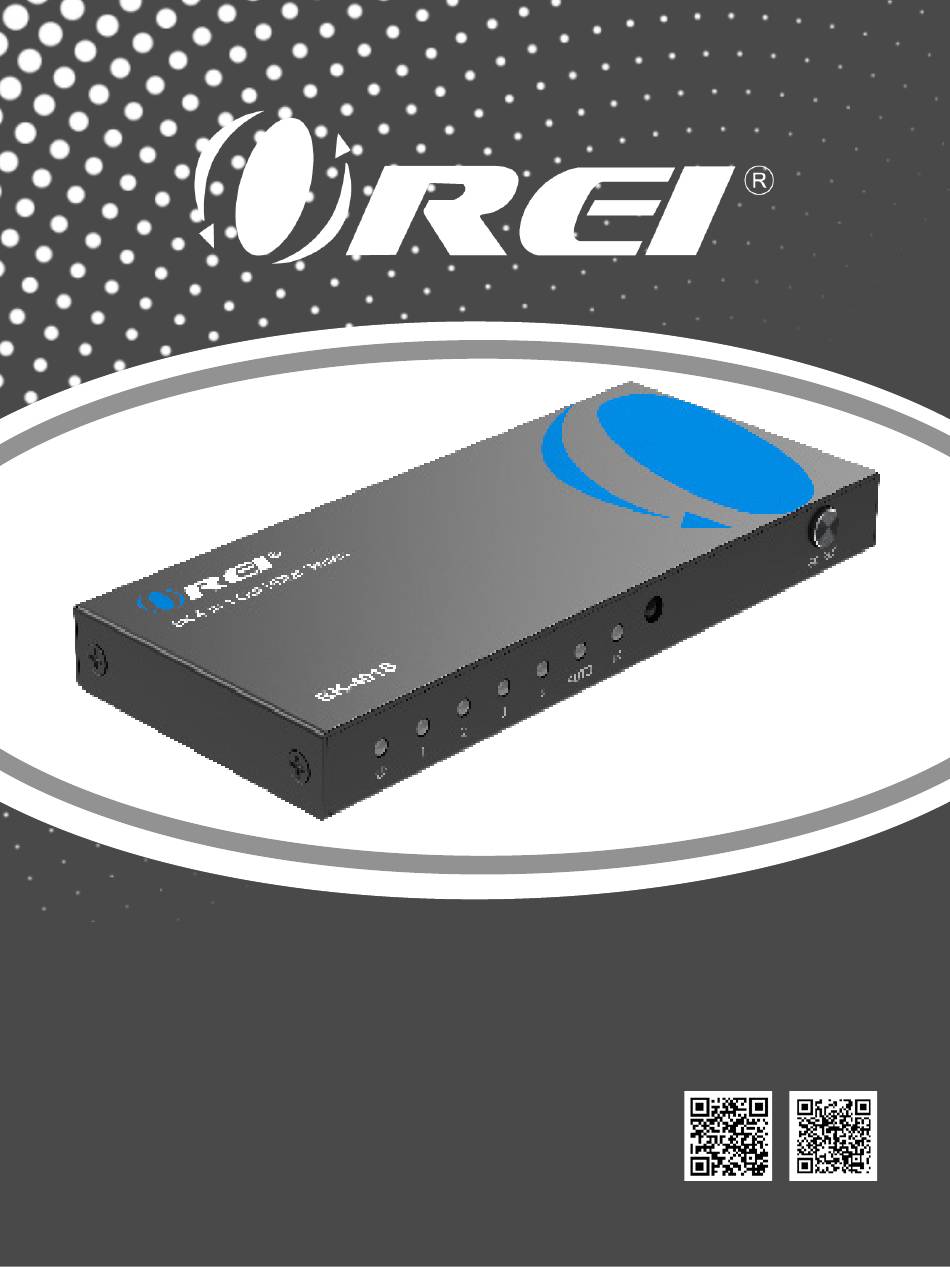

- Page 1 BK-401S 8K 4 In 1 Out HDMI Switch Follow us on Youtube and Facebook US E R M ANUA L www.orei.com page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Control & Functions Application Example FAQs& Troubleshooting Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. - Page 3 OREI Live Technical Support Hours US team (US/Canada/Mexico): Monday-Friday, 9 a.m. - 6 p.m. Central Time Support Email - info@orei.com |Support Number - 877-290-5530 Chat Live on www.orei.com Send us an instant message now. Our Technical Support Team will respond momentarily.
-
Page 4: Introduction

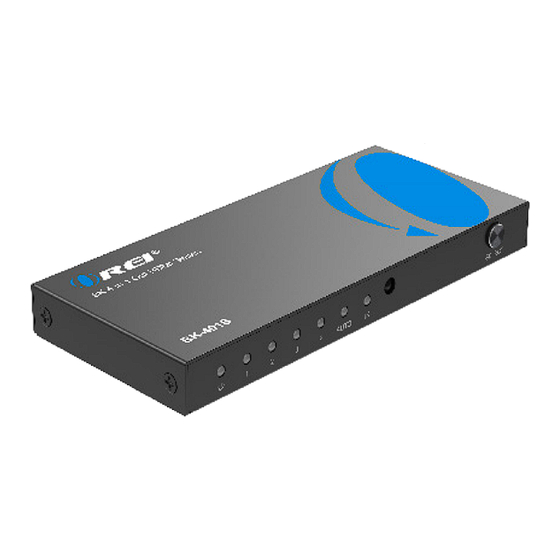

Introduction The OREI BK-401S HDMI Switch allows you to easily switch between 4 sources and output to one display. This switcher is designed to handle a maximum resolution of 8K@60Hz and also supports 4K@120Hz and 1080p@240Hz. It is HDMI 2.1, and HDCP 2.3 compliant. -
Page 5: Features
5. Audio formats: LPCM, Dolby Digital, Dolby True HD, DTS, and DTS-HD Master Audio 6. VRR, ALLM, & QFT support 7. Auto Switching feature 8. CEC Support 9. Built-in Equalizer, Re-timing and Driver Package Contents BK-401S 1pcs Remote Control 1pcs USB Power Cable 1pcs User Manual... -
Page 6: Specifications
Specifications Technical HDCP Compliance HDCP 2.3 HDMI Compliance HDMI 2.1 Video Bandwidth 48Gbps Video Resolution 8K@60Hz, 4K@120Hz, 1080p@240Hz up to 480p Color Space YCbCr 4:4:4/YCbCr 4:2:2/YCbCr 4:2:0/RGB Color Depth 12 Bit per channel Audio Formats LPCM, Dolby Digital, Dolby True HD, DTS, and DTS-HD HDR10+ &... - Page 7 Specifications Mechanical Housing Metal Color Black Dimensions 136.3mm [L] × 61.5mm [W] × 14.5mm [H] Weight 173g / 6.1oz Input: AC 100-240V 50/60Hz, Output: DC 5V/1A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 5W (Max) Operation 0°C ~ 70°C / 32°F ~ 158°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F...
-
Page 8: Operation Control & Functions
Operation Control & Functions Remote Control Name Function Description Power Turn the device on/off Press the button to select the respective input source Press to turn on/off IR control 9 10 11 Page 08... - Page 9 Operation Control & Functions Name Function Description USB-C Input for power. Connect the included cable DC 5V here. HDMI Output Port to connect a display device such as a OUTPUT TV, Monitor, etc. HDMI Input Port to connect a source device such as a INPUT1-4 DVD Player, Streaming device, etc.
-
Page 10: Application Example
Application Example 8K UHD TV Xbox-Series- X 8K HDMI Cable 8K HDMI Cable 8K HDMI Cable 8K HDMI Cable 8K HDMI Cable Page 10... -
Page 11: Faqs& Troubleshooting
FAQs & Troubleshooting 1. Power light is off and product is not working. How can I fix this? -> Check if the Power supply is connected properly. -> Check if the other LEDs on the front are lighting up. -> Try connecting the device to a different power source. 2. - Page 12 8K 4 In 1 Out HDMI Switch BK-401S www.orei.com © 2023 page 12...
