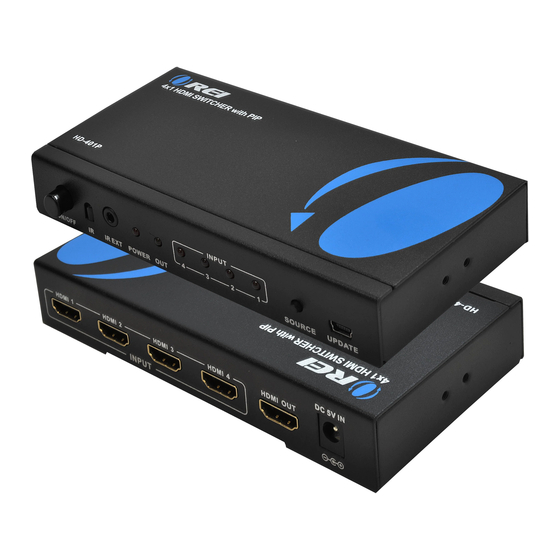

- Page 1 OREI HD-401P User manual 4x1 HDMI SWITCHER with PIP www.orei.com Thank you for purchasing OREI HD-401P For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for...
- Page 2 future reference. Introduction This range of high performance HDMI switch provide four HDMI in to one HDMI output and supports PIP, 4K×2K, 3D, Deep Color. With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI SWITCH. 4 HDMI input signal switch to 1 HDMI sink device.
- Page 3 Dimensions (mm) 65(W) X 118 (D) X 25 (H) Weight 120g Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20 ~ 90% RH (Non-condensing) Power Consumption on controls and Functions Front Panel This red LED illuminates when the device is connected with power supply POWER:...
- Page 4 INPUT: This slot is where you connect the HDMI source output from DVD, PS3. OUTPUT: HDMI signal output, connect to TV over a HDMI cable. DC 5V: Plug the 5V DC power supply into the unit and connect the adaptor to AC wall outlet. Remote control Select input signal to be showed on the TV.
- Page 5 Application Example...
