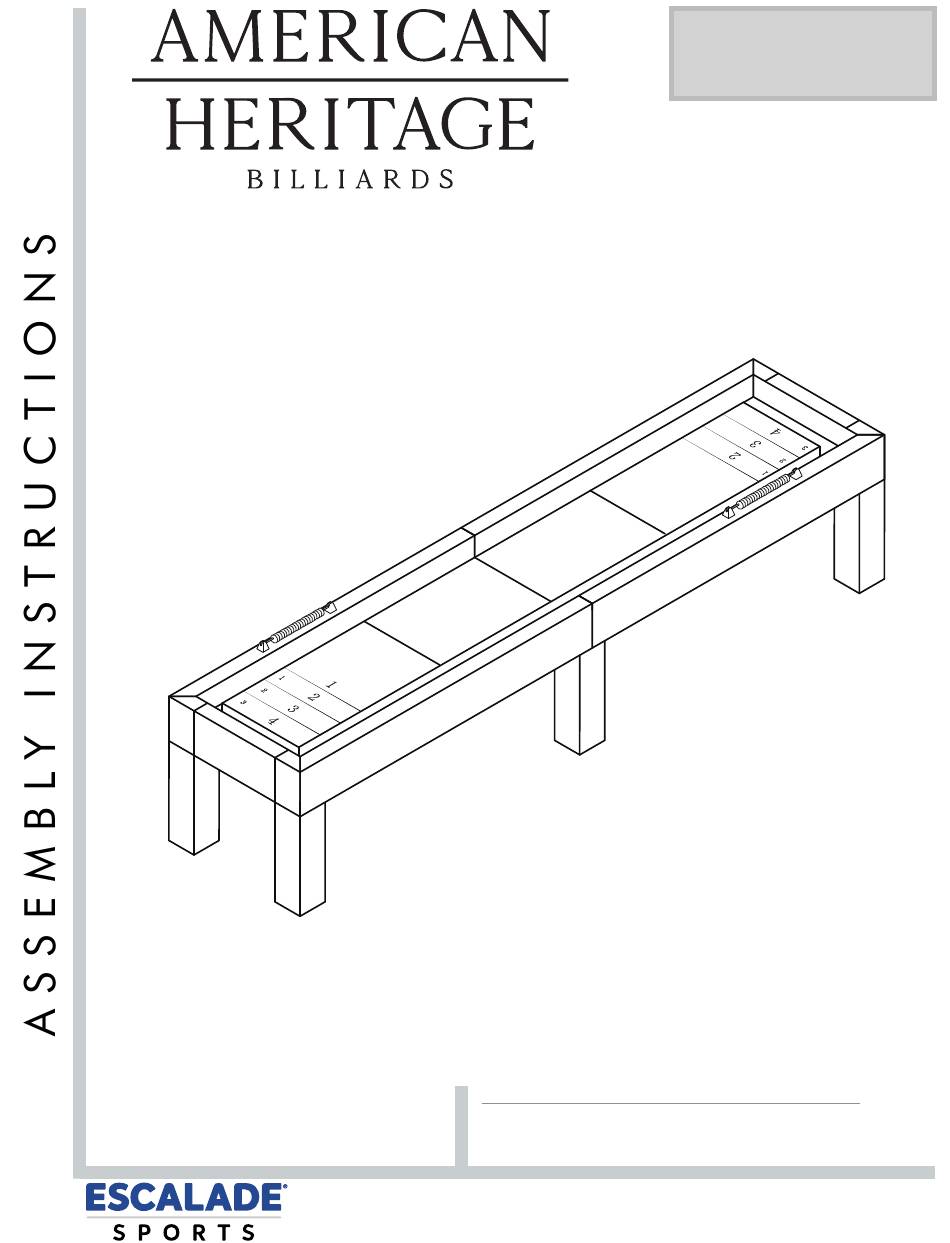

- Page 1 ALTA 12’ SHUFFLEBOARD MODEL NO. SBALTA12 Please Do Not Return This Contact Escalade® Sports customer service department at: Phone: 1-800-835-7665 (Toll-FREE!) Product to the Store! Hours: 10:00 - 6:00 EST, Monday - Friday E-mail: Claims@AmericanHeritageBilliards.com 2022 Escalade Sports...
-
Page 2: P R E - A S S E M B L Y T I P S
NOTICE: READ AND FOLLOW ALL ASSEMBLY, OPERATION AND SAFETY INSTRUCTIONS CAREFULLY. P R E - A S S E M B L Y T I P S 1. Read this manual carefully before starting assembly. Read each step completely before beginning next step. - Page 3 SBALTA12 HARDWARE LIST (ACTUAL SIZE) H1 - Ø10 X 30 MM WOOD DOWEL H2 - 5/16” X 3-1/4” FLANGED HEX H3 - 5/16” x 3/4” FLAT WASHER (6 PCS) HEAD BOLT (24 PCS) (24 PCS) H4 - M12 X 291MM BOLT H5 - 1/2”...
- Page 4 PARTS LIST (NOT ACTUAL SIZE) SBALTA12 - CABINET HARDWARE KIT PACKED P1 - SHUFFLEBOARD CABINET P2 - ABACUS SCORING SYSTEM P3 - HARDWARE KIT (2 PCS) (2 PCS) (1 PC) P4 - CORNER LEG (4 PCS) P5 - SIDE LEG (2 PCS) (2 PCS LEFT, 2 PCS RIGHT) SBALTA12 - PLAYFIELD...
-
Page 5: Parts Required
PARTS REQUIRED: 6 PCS H1 - Ø10 x 30 mm WOOD DOWEL 2 PCS P1 - SHUFFLEBOARD CABINET STEP 1: Place your Shuffleboard Cabinets P1 upside down as shown in FIGURE 1. Connect Shuffleboard Cabinets P1 using Wood Dowels H1 as shown in FIGURE 1. NOTICE: Place CABINET on clean, smooth surface to avoid... - Page 6 PARTS REQUIRED: 24 PCS H2 - 5/16-18 FLANGED HEX HEAD SCREW x 3.25" 4 PCS P4 - CORNER LEG 24 PCS H3 - 5/16 FLAT WASHER 2 PCS P5 - SIDE LEG 1 PC H4 - M12 X 1.25 THREADED ROD X 291MM 2 PCS H5 - Ø12MM FLAT WASHER 2 PCS H6...
- Page 7 PARTS REQUIRED: 1 PC H7 - 1/4” x 3” BOLT 1 PC P6 - SHUFFLEBOARD PLAYFIELD 4 PCS H8 - 1/4-20 FLANGED HEX HEAD SCREW 4 PCS H9 - 1/4 FLAT WASHER STEP 3: Screw one Bolt H7 to the bottom of Shuffleboard Playfield P6 as shown in FIGURE 3. With two or more adults, carefully lift and flip over your Shuffleboard Playfield P6 and place it on top of Shuffleboard Cabinet P1 using Bolt H7 installed as a guide tool.
- Page 8 PARTS REQUIRED: 4 PCS H10 - #6 SCREW X 1" 1 PC P2 - ABACUS SCORING SYSTEM STEP 4: Secure Abacus Scoring System P2 to Shuffleboard Cabinet P1 using #6 SCREW X 1" H10 as shown in FIGURE 4. Tighten with caution; do not overtighten to avoid stripping out the screws. Attach the Abacus Scorer Caps C2.
-
Page 9: Spare Parts List
SPARE PARTS LIST KEY# PART# DESCRIPTION SBALTA12HARDWARE Ø10 x 30 mm WOOD DOWEL SBALTA12HARDWARE 5/16” X 3-1/4” FLANGED HEX HEAD BOLT SBALTA12HARDWARE 5/16” x 3/4” FLAT WASHER SBALTA12HARDWARE M12 X 291MM BOLT SBALTA12HARDWARE 1/2” x 1” FLAT WASHER SBALTA12HARDWARE M12 HEX NUT SBALTA12HARDWARE 1/4”... -
Page 10: Lifetime Warranty
LIFETIME WARRANTY WARRANTY All American Heritage Billiard shuffleboards are guaranteed by a robust warranty against manufacturing defects and craftsmanship from the date of purchase of the original owner as follows: • The cradle/cabinet is warranted against splitting, cracking or warping from the date of purchase of the original owner.
