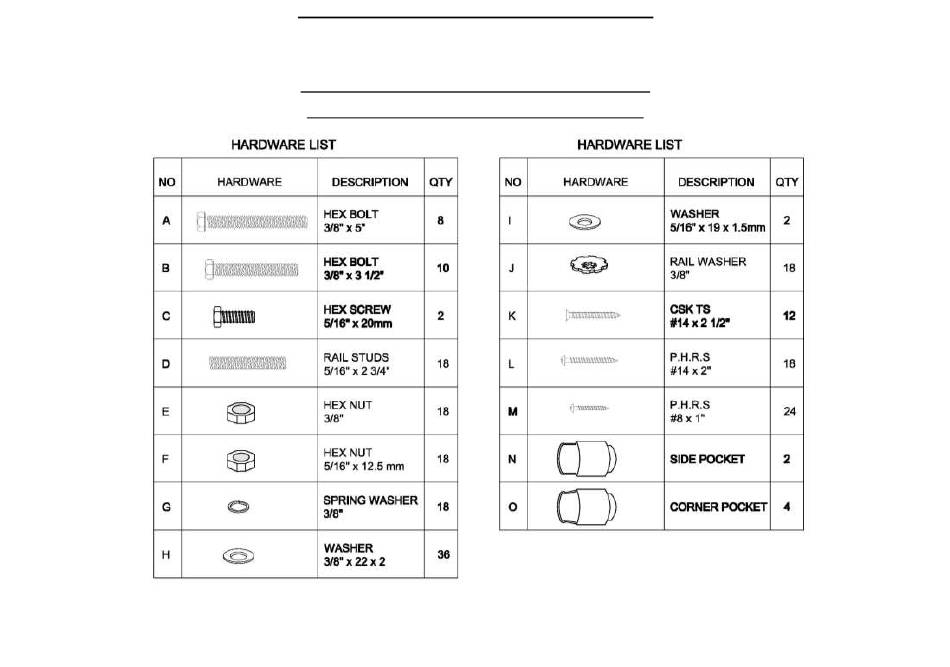

- Page 1 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION ***For general helpful installation tips, please visit our website at: https://www.americanheritagebilliards.com/installer-resources...
- Page 2 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION Assemble the beam structure using Bolt A, Spring Washer G, Flat Washer H, and Flat Washer H with Nut E. Tighten by hand only.
- Page 3 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION Attach the X Connector to the Metal Legs using Hex Bolt C and Flat Washer I. Do NOT tighten the X Connector to the Metal Legs.
- Page 4 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION Attach the beam structure to the assembled legs using Bolt B, Spring Washer G, Flat Washer H, and Nut Attach the X Connector to the Wood Beams using Bolt B, Spring Washer G, Flat Washer H, and Nut...
- Page 5 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION Attach the slate pad to the beams using Screw L...
- Page 6 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION Making sure table assembly is in the Cont. proper spot in the room, use a level Remove any wax, dust and debris to ensure the frame is level to the from the slate surface to prep it for floor.
- Page 7 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION Assemble the long blinds to the end blind using Screw M. Be absolutely sure to use only the enclosed Screw M when securing the blinds, incorrect screw length will cause permanent damage to...
- Page 8 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION Attach the #2 and #3 top rails to the long blinds using Screw M. This step may be easier to accomplish by placing the blinds upside down on a clean, flat surface. Be absolutely sure to use only the enclosed Screw M when securing the blinds to the rails, incorrect...
- Page 9 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION Using two adults, carefully align the top rail/blind assembly over the playing surface and set down on the playing surface aligning the top rail inserts with the holes in the playing surface. Attach the top rail/blind assembly to the playing surface using Rail Stud D, Dome Washer J, Nut F. (Dome Washer faces down)
- Page 10 AMERICAN HERITAGE – QUEST TABLE ASSEMBLY INSTRUCTION NOTE: the side pockets and corner pockets ARE different and will only work correctly one way, make sure to follow the label “S” or “C” on the back of the pocket. To install the pockets, squeeze the top of the pocket and bring it up through the pocket opening from the bottom. Be sure not to push back the pockets so they are flush against the rail;...
