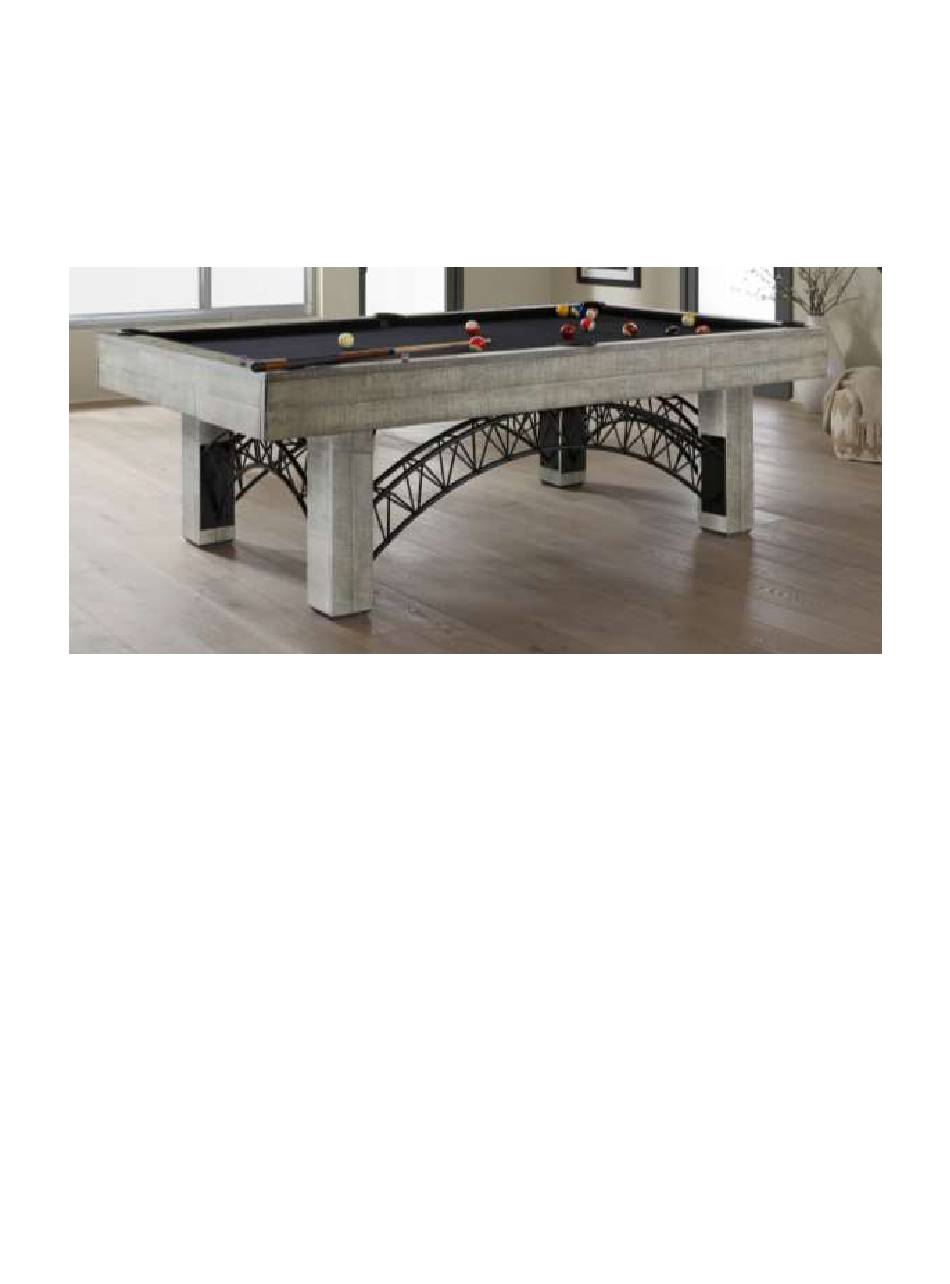

- Page 1 Gateway Billiard Assembly Instructions Provided by: American Heritage Billiards **Please read entire Assembly guide prior to building the Gateway table.
- Page 2 Step 1: Loosely attach the metal arches to the corresponding wood legs using the bolts and washers provided in the long arches carton Step 2: Assemble the frame by placing both side beams on top of the legs with the counter sunk holes facing the inside of the table, use bolts and washers provided in the leg box to loosely attach the side beams.
- Page 3 Step 6: Remove any wax, dust and debris from the slate surface to prep it for the bedcloth. Layout bedcloth centering it over the slate surface. Starting at one end, staple cloth to slate framing working from center out toward the pockets; stretch cloth toward pockets. Go to the opposite end of the table and repeat process but pull the cloth tight while stapling.
- Page 4 Step 8: Locate the #2 and #3 rails (side rails) and the corresponding long side blinds. Making sure the rail blind is centered on the rail, and the center pocket opening seam is tight, and the blinds are flush at each end;...
- Page 5 Step 10: Start by taking the two long rail/blind assemblies and position by lining up the rail bolt holes in the slate and the cooresponding threaded rods of the rail. Hand tighten the rails using the domed washer and nut. (Dome of washer faces down) Step 11: Using the same process as the previous step, do the same with the end rail/blinds assemblies.
- Page 6 Step 13: NOTE: the side pockets and corner pockets ARE different and will only work correctly one way. To install the pockets, squeeze the top of the pocket and bring it up through the pocket opening from the bottom. Be sure not to push back the pockets so they are flush against the rail; the first priority is to ensure they line up with the felt near the playing surface.
