Summary of Contents for American Heritage Billiards QUEST 8' BILLIARD TABLE

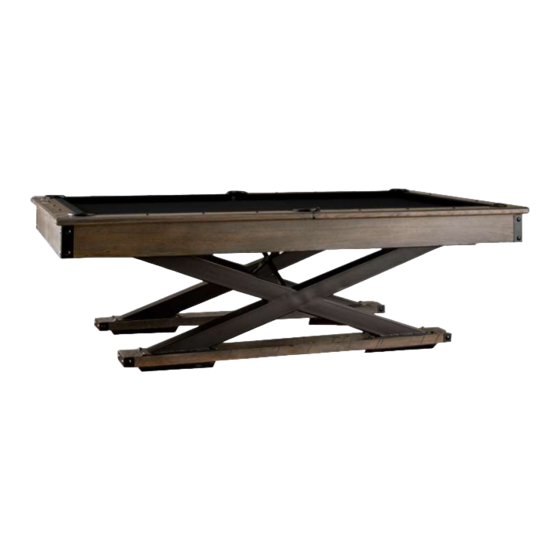

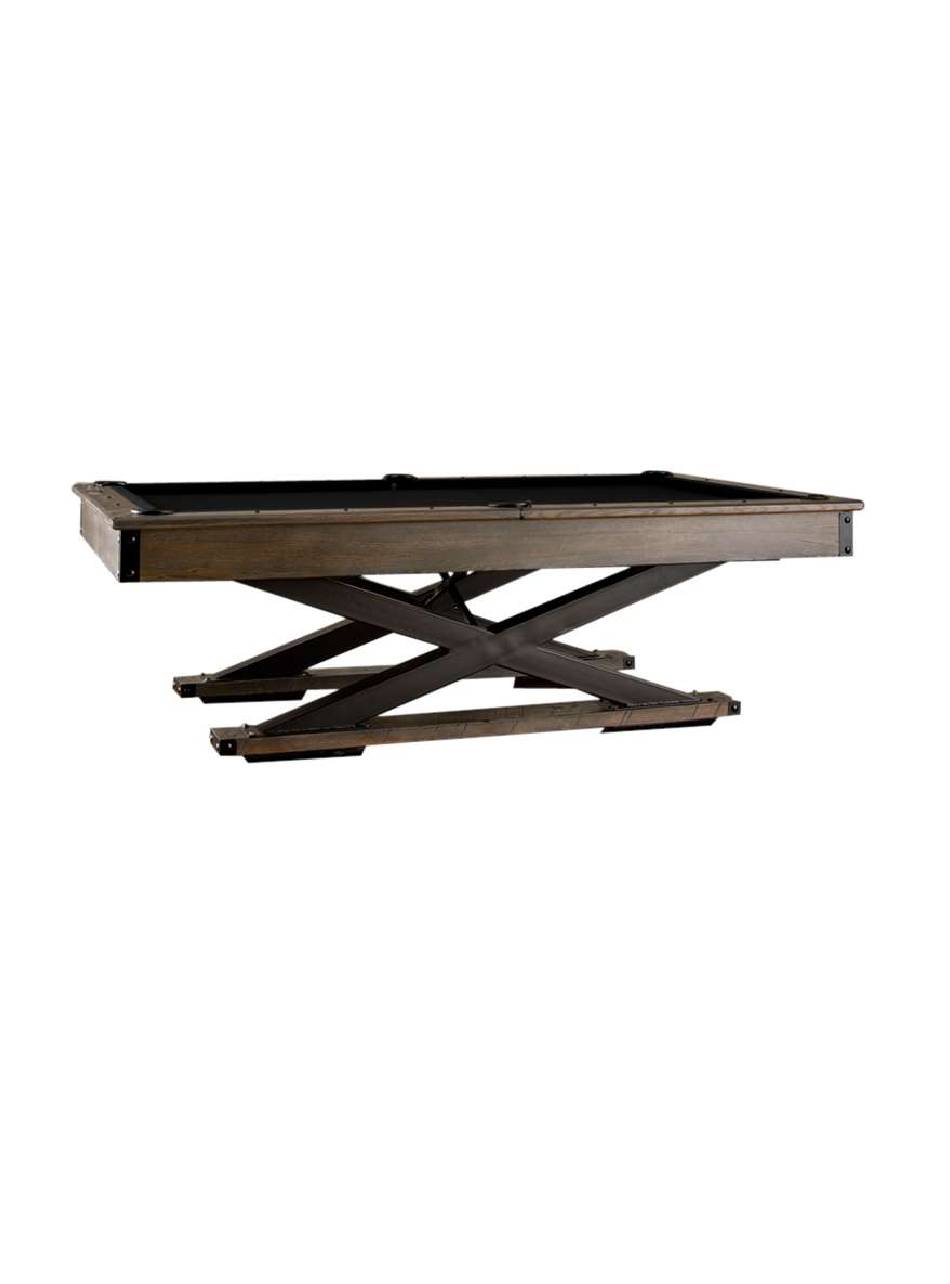

- Page 1 QUEST 8’ BILLIARD TABLE...
- Page 2 1. Assemble the Wood Beam Frame without tightening any nuts on top of the Metal Legs. 2. Attach the X Connector between the Metal Legs. Do NOT tighten the X Connector to the Metal Legs. 3. Square the Wood Beam Frame to approximately 95”. Tighten and secure all perimeter bolts. 4.
- Page 3 8. With a level or straight edge, be sure that the slate seams are flat and level. If adjustments need to be made, loosen slate screws and place a shim(s) in area that needs adjustment. Tighten screws and check for levelness. Use Bee’s Wax or similar to fuse the seams of the slate together.
- Page 4 10. Locate the #2 and #3 rails (side rails) and the cooresponding long side blinds. Make sure rail blind is centered on the rails measuring the overhang on each end. Make sure the center pocket opening seam is tight. Secure long side blind to cleats using provided screws. Be absolutely sure to use only the enclosed blind screws when securing the blinds to each rail;...
- Page 5 11. Follow this same process for the end rails and blinds. 12. For both long side rail/blind assemblies, thread the threaded rods into all rail inserts being sure to hand tighten before proceeding to the next step Do not touch the End Rails or End Blinds yet. Threaded 13.
- Page 6 Pocket Installation 16. Insert the Pocket through the underside of the rail and pull the pocket all the way back towards the outside of the Table. Make sure the front of the pocket lines up with the felt on the rails. CORRECT WAY INCORRECT WAY...
